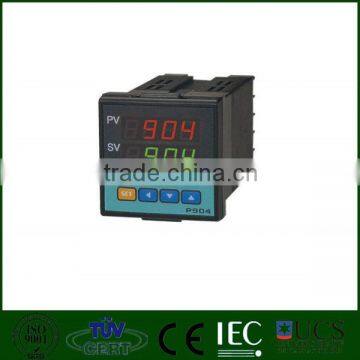

Intelligent PID Temperature Controller

Model

P904

P906

P907

P908

P909

P910

SizeHxW

48 x 48mm

48 x 96mm

72 x 72mm

96 x 48mm

96 x 96mm

80 x 160mm

Power voltage

AC85 - 265V, DC24V (optional)

Power frequency

50 / 60Hz

Power consumption

Approx 3VA

Approx 4VA

Approx 4VA

Approx 4VA

Approx 4VA

Approx 4VA

Memory

Power disconnection preserve memory E² PROM

Input

Sensing signal input. Sampling time: 500ms, display accuracy: 0.2% of  FS

Thermocouples: K, J, R, S, B, E, N, T, W, U, L

Thermal Resistance: Pt100, Pt 50

Linear signals: 4-20mA, 0-20mA, 1-5V, 0-5V

Output

Relay contact:3A/220V, electric life: 100,000 times or more (under rated load), operation cycle 15 seconds

Pulse voltage: drive SSR, DC0/24V,ON: 24V, OFF: 0V. Operation cycle 1 second

Linear signals: 4-20mA, 0-5V, 0-20mA, 0-10V, 1-5V various standard signal output

Portion motor control output: control 3-line portion motor making it on or off, capable of displaying its openness of valves

SCR zero position trigger signals: direct trigger SCR for single-phase or 3-phase, zero position control

SCR phase trigger signals: direct trigger SCR for single-phase or 3-phase control

Control

Control mode: PID, ON/OFF, Phase PID, continuous PID, self-regulated PID, fuzzy PID, location portion control

Set range: percentage band P:0-200.0%, integral time I: 0-3600 seconds, differential timeD: 0-900 seconds

Accuracy

Control accuracy: ±1^oC

Measurement accuracy: ±0.5%FS (±0.2% which can be provided)

Resolution:14BIT

Sampling cycle: 0.5 s

General specifications

Power voltage: support AC85-265V,50/60Hz,DC24V

Operating ambience: -10~50,30~90%RH

Consumed power: 10VA

Weight: 0.3kg or less

Insulation insulating resistance >20MΩ500VDC, intensity 1500VAC/1 minute
