Home > Products > H Beam > Large span prefabricated steel structrue warehouse steel construction material

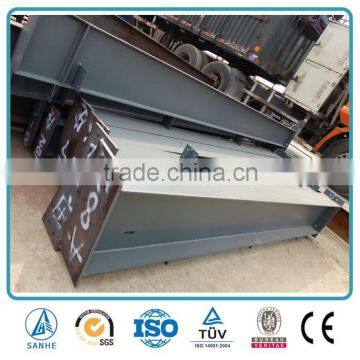

Large span prefabricated steel structrue warehouse steel construction material
- 20000 Ton / Tons per Month
- Xingang Tianjin
- T/T L/C D/P D/A Credit Card
You May Like
-
Structural carbon steel h beam profile H iron beam
-
Hot Sale Steel Waterproof Building Materials for Industrial Warehouse
-
Metal Welded Steel Structures H Beams for sale
-
Heavy Steel H Beam Prefabricated Steel Column
-
Factory Price Hot Rolled H Shape Steel Structure Column Beam Made in China
-
Heavy Steel H Beam Prefabricated Steel Column
Product Details
| Place of Origin | Hebei, China | Grade | Other, Q235B,SM490,SS400,Q345B. | |
| Technique | Other, Hot rolled or welded | Thickness | 5-34mm | |
| Application | Building Construction, Steel structure | Length | 6-12m | |
| Standard | ASTM | Flange Width | 100~500mm | |
| Flange Thickness | 7-34mm | Web Width | 100mm-900mm | |
| Web Thickness | 5-20mm | Brand Name | SANHE | |
| Model Number | prefabricated steel structrue warehouse steel construction material |
Product Description
prefabricated steel structrue warehouse steel construction material
Name | prefabricated steel structrue warehouse steel construction material |
Material Grade | Q235B,SM490,SS400,Q345B... |
Standard | GB, ASTM, AISI, BS, DIN, JIS |
Web Thickness | 5-20mm |
Flange Thickness | 7-34mm |
Web Width | 100-900mm |
Flange Width | 100-500mm |
Length | 9m/12m or as your requirement |
Packing | In bundles |
GB H Beam Specification | ||||||
Item
| Size (mm)
| Section Dimension (mm) | Theoretic Weight (kg/m)
| |||
H | B | T1 | T2 | |||
HW | 100*100 | 100 | 100 | 6 | 8 | 17.2 |
125*125 | 125 | 125 | 6.5 | 9 | 23.8 | |
150*150 | 150 | 150 | 7 | 10 | 31.9 | |
175*175 | 175 | 175 | 7.5 | 11 | 40.3 | |
200*200 | 200 | 200 | 8 | 12 | 50.5 | |
200 | 204 | 12 | 12 | 56.7 | ||
250*250 | 250 | 250 | 9 | 14 | 72.4 | |
250 | 255 | 14 | 14 | 82.2 | ||
HM | 150*100 | 148 | 100 | 6 | 9 | 21.4 |
200*150 | 194 | 150 | 6 | 9 | 31.2 | |
250*175 | 244 | 175 | 7 | 11 | 44.1 | |
300*200 | 294 | 200 | 8 | 12 | 57.3 | |
350*250 | 340 | 250 | 9 | 14 | 79.7 | |
600*300 | 582 | 300 | 12 | 17 | 137 | |
588 | 300 | 12 | 20 | 151 | ||
594 | 302 | 14 | 23 | 175 | ||
HN | 150*75 | 150 | 75 | 5 | 7 | 14.3 |
175*90 | 175 | 90 | 5 | 8 | 18.2 | |
200*100 | 198 | 99 | 4.5 | 7 | 18.5 | |
200 | 100 | 5.5 | 8 | 21.7 | ||
250*125 | 248 | 124 | 5 | 8 | 25.8 | |
250 | 125 | 6 | 9 | 29.7 | ||
300*150 | 298 | 149 | 5.5 | 8 | 32.6 | |
300 | 150 | 6.5 | 9 | 37.3 | ||
350*175 | 350 | 175 | 7 | 11 | 50 | |
400*200 | 396 | 199 | 7 | 11 | 56.7 | |
400 | 200 | 8 | 13 | 66 | ||
450*200 | 446 | 199 | 8 | 12 | 66.7 | |
450 | 200 | 9 | 14 | 76.5 | ||
Project Show
"Shijiazhuang Sanhe Light Steel Co., LTD." is a manufacturer which is devoted to steel products and steel projects.
In order to offer the highest levels of products and service, we have engineers and designers who have more than 15 years of experience join us. In the meantime, the inspection team worked with our workers in the whole manufacturing process to assure the quality....
Production Line
We are at your Service
Ensure quality,Factory direct price,Fast delivery,OEM Service
