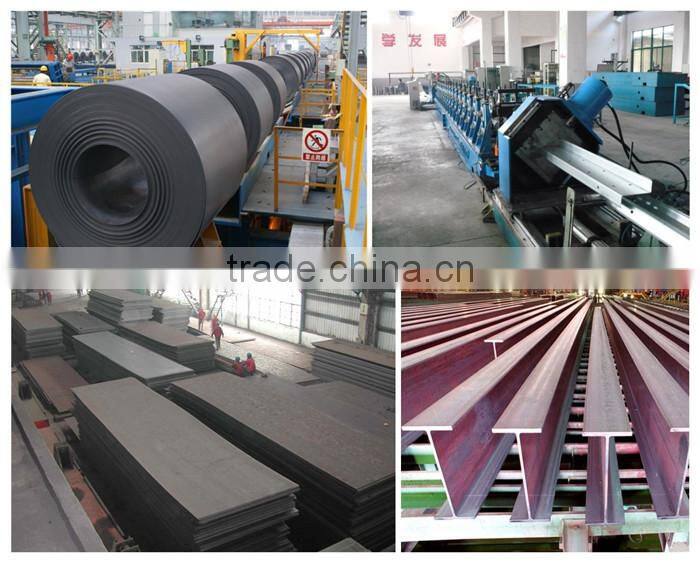

2016 China Supplier Construction Material Steel Structural Quality Steel H Beam Weld H Beam Column
- Xingang Qingdao Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Grade | SS400 | |
| Technique | Hot Rolled | Thickness | 6-18mm | |
| Application | Steel Structure | Length | 12m | |
| Standard | JIS | Flange Width | 100-300mm | |
| Flange Thickness | 7mm-34mm | Web Width | 100mm~900mm | |
| Web Thickness | 5-18mm | Brand Name | SANHE | |
| Model Number | 100*100-900*300 |
Product Description
JIS STANDARD H BEAM | |
STANDARD:JIS G 3192-2000 | |
GRADE: JIS G 3101 SS400/SS540 | |
SIZE | |
150X75X5X7X14KG/M | 340X250X9X14MMX78.1KG/M |
100X100X6X8MMX16.9KG/M | 346X174X6X9MMX41.2KG/M |
125X125X6.5X9MMX23.6KG/M | 350X175X7X11MMX49.4KG/M |
148X100X6X9MMX20.7KG/M | 350X350X12X19MMX135KG/M |
150X150X7X10MMX31.1KG/M | 390X300X10X16MMX105KG/M |
175X175X7.5X11MMX40.4KG/M | 396X199X7X11MMX56.1KG/M |
194X150X6X9MMX29.9KG/M | 400X200X8X13MMX65.4KG/M |
198X99X4.5X7MMX17.8KG/M | 400X400X13X21MMX172KG/M |
200X100X5.5X8MMX20.9KG/M | 446X199X8X12MMX65.1KG/M |
200X200X8X12MMX49.9KG/M | 450X200X9X14MMX74.9KG/M |
244X175X7X11MMX43.6KG/M | 440X300X11X18MMX121KG/M |
248X124X5X8MMX25.1KG/M | 482X300X11X15MMX111KG/M |
250X125X6X9MMX29.0KG/M | 488X300X11X18MMX125KG/M |
250X250X9X14MMX71.8KG/M | 496X199X9X14MMX77.9KG/M |
250X255X14X14X81.6KG/M | 500X200X10X16MMX88.2KG/M |
294X200X8X12MMX55.8KG/M | 582X300X12X17MMX133KG/M |
298X149X5.5X8MMX32.0KG/M | 588X300X12X20MMX147KG/M |
298x201x9X14MMX65.4KG/M | 596X199X10X15MMX92.5KG/M |
300X150X6.5X9MMX36.7KG/M | 600X200X11X17MMX103KG/M |
300X300X10X15MMX93KG/M | 700X300X13X24MMX182KG/M |
340X250X9X14MMX78.1KG/M | 800X300X14X26MMX207KG/M |
346X174X6X9MMX41.2KG/M | 900X300X16X28MMX240KG/M |
