Product Details
| Place of Origin | Guangdong, China | Brand Name | INT | |
| Model Number | INS196 |

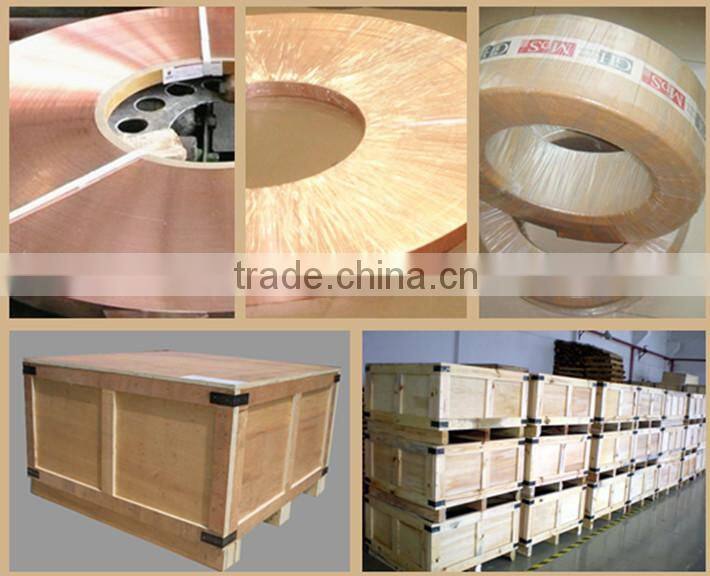

5-20kg per coil packing with vacuum plastic film,10-20kg in 50cm*50cm*20cm Carton or 30-50kg in 60cm*60cm*30cm wooden box
Product Description
Specifications
1. inlay clad metal2.Factory supplies low price
3.High quality with ROHS report
4.All size can be customed
hot sell Electronic Accessories material silver copper inlay clad metal
Main Materials:
Face material : Ag,AgNi,AgCdO,AgSnO2
Middle material: Cu,brass,Phosphor copper, Beryllium copper
Base material: nickel,monel, low carbon steel, brazing
Characteristic:
1. Offer flexibility of material design; being able to produce the electrical contact with high mechanical and electrical contact characteristics
2. Save precious metal materials with low prices, as precious metal is only used at electrical contact spots.
3. Precious Clad Metal Material is suitable for continuous automatically manufacture. It does not need other manufacture process, such as welding or soldering after its formation.
4. It simplifies manufacturing process of electrical parts with high productivity, and raises the assembly precision credibility of electrical component.
5. Offer flexibility of material design; being able to produce the electrical contact with high mechanical and electrical contact characteristics
Main Application:

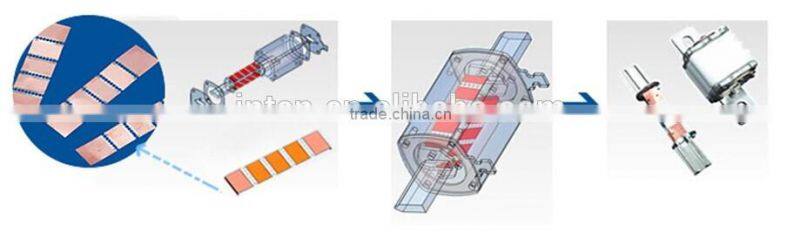

Clad metal strip is mainly used for all sorts of electrical component production, such as, micro motors, electrical brush, commutator, jiggle plug/socket, relay, connector, tuner, etc. It is also suitable for continuous automatically manufacture.

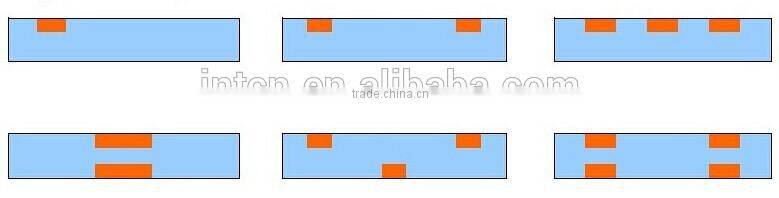

Specification
All dimensions are according to customers requirements.

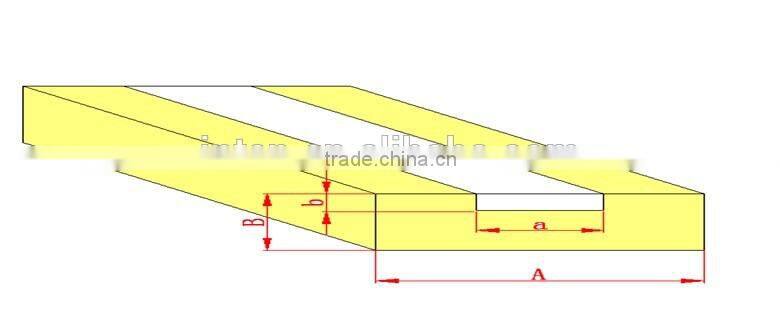

Size A 3.0mm—60mm Size B 0.1mm—3mm
Size a 2.0mm—60mm Size b 0.02mm—1.0mm
| Total Width | Silver Width | Total Thickness | Silver Thickness | Total Width Tolerance | Total Thickness Tolerance |
| 1.5-60 | 1.5-60 | 0.1-0.5 | 0.05-0.3 | ±0.5 | ±0.03 |
| 1.5-60 | 1.5-60 | 0.6-1.5 | 0.05-1.0 | ±0.1 | ±0..05 |
| 1.5-60 | 1.5-60 | 1.6-3.0 | 0.05-1.5 | ±0.2 | ±0..08 |
| General technological process for inlay strips | |||
| Order | Process | ||
| 1 | Copper strip slotting | ||
| 2 | Surface treatment | ||
| 3 | Hot composite | ||
| 4 | Diffusion annealing | ||
| 5 | Cleaning | ||
| 6 | Precision rolling, | ||
| 7 | Striping processing | ||
| 8 | Forming to rolls | ||
| 9 | Test and Inspection | ||
| 10 | Packing | ||
Equipment & Test Equipment:
Germany Hi-precision Roller Machine; Hi-precision Vertical Cutting Machine; Slotting Machine; Ionic Absorption Test System AAS; Light Processor & Metallographic Microscope; Digital Light Processor; Strength Tester; Hardness Tester.
| Payment & Delivery Terms | |||||
| Minimun Qrder Quantity | 50 Kilogram | ||||
| Packing Details | In reel packed with vacuum plastic film, then in carton or wooden box | ||||
| Delivery time | 20 days | ||||
| Payment Terms | T/T, L/C, ESCROW, West Union, MoneyGram | ||||
| Supply Ability | 10 tons per Month | ||||
About shipment
1. By sea, by air, by door to door express (FedEx, UPS, DHL, TNT, EMS).
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different because of different weight and destination, we will choose the cheapest and safest way according to your detailed requirement.
4. Normally, it will take around 3-7days from China to destination country
Thank you for coming to our website. If you have any questions or suggestions, please do not hesitate to contact us, we will reply you within 12 hours, to see more products of silver clad copper metal strips pls click http://intcn.en.china.cn/productgrouplist-222352481-4/Clad_metal_strips.html?isGallery=Y !!!
Company Profile
Dongguan INT Metal Products Factory is located in the biggest fabrication city--Dongguan, 50 minutes to Shenzhen international airport. 10 years experience in manufacturing and trading for Electrical contacts, Rivets, Clad metal strips, Silver wires, copper strips and CNC parts. With a wide range, our products are extensively used in switches, relays, contactors, circuit breakers, thermostats, leakage protectors and other low & middle voltage appliances. We have exported 80% of our products to abroad; our customers are come from all over the world, With the main market is North America and West Europe, ISO9001 certificate is obtained. Dedicated to strict quality control, wonderful after sales service, reasonable prices and stable delivery time, we get full and high reputation and satisfaction among all of our customers. Welcome customers, business partners and friends from all over the world to contact us for seeking mutual benefits cooperation.
