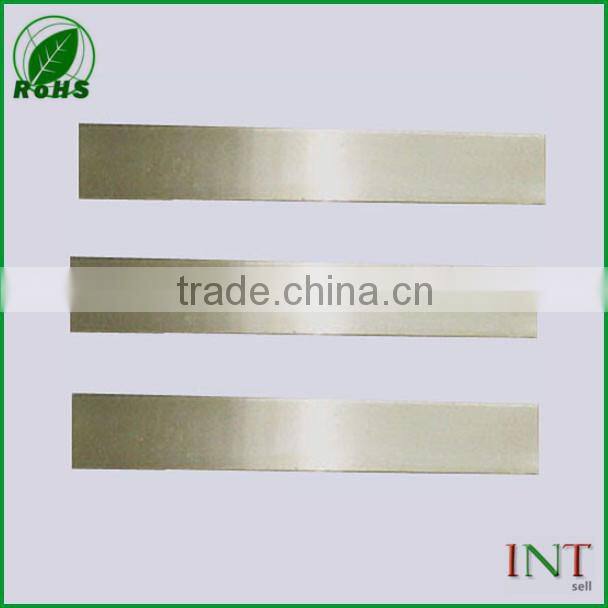

thermostat materials silver overlay contact strip

5-20kg per coil packing with vacuum plastic film,10-20kg in 50cm*50cm*20cm Carton or 30-50kg in 60cm*60cm*30cm wooden box

thermostat materials silver overlay contact strip

Clad metal contact strips Characteristic:

1. Offer flexibility of material design; being able to produce the electrical contact with high mechanical and electrical contact characteristics

2. Save precious metal materials with low prices, as precious metal is only used at electrical contact spots.

3. Precious Clad Metal Material is suitable for continuous automatically manufacture. It does not need other manufacture process, such as welding or soldering after its formation.

4. It simplifies manufacturing process of electrical parts with high productivity, and raises the assembly precision credibility of electrical component.

 5. Offer flexibility of material design; being able to produce the electrical contact with high mechanical and electrical contact characteristics

Main Materials for silver copper clad metal strip series:

Face material : Ag,AgNi,AgCdO,AgSnO2

Middle material: Cu,brass,Phosphor copper, Beryllium copper
Base material: nickel,monel, low carbon steel, brazing

Main Application:

Clad metal strip is mainly used for all sorts of electrical component production, such as, micro motors, electrical brush, commutator, jiggle plug/socket, relay, connector, tuner, etc. It is also suitable for continuous automatically manufacture.

Specification

All dimensions are according to customers requirements.

Equipment & Test Equipment:

Germany Hi-precision Roller Machine; Hi-precision Vertical Cutting Machine; Slotting Machine; Ionic Absorption Test System AAS; Light Processor & Metallographic Microscope; Digital Light Processor; Strength Tester; Hardness Tester.
