2015 new product low price reliable high quality and various cement pipe mould for hot sale

Reliable Qingzhou manufacture high quality and various cement pipe mould

Cement pipe mould-- Specifications:

Our mould
the pipe diameter :200-2400mm
the pipe length:1000mm -4000mm
pipe connection:bell mouth,plat mouth,tongue

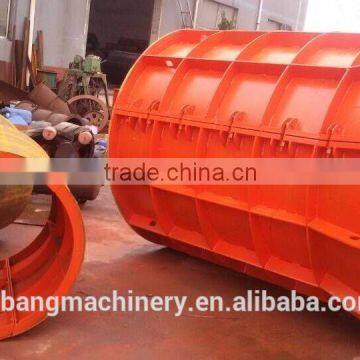

Cement pipe mould:

Our high quality concrete pipe moulds used to produce concrete pipes with diameters of 300-2000 mm and length of 2000 mm. The machine uses rolling axis to support the pipe mould and to press the concrete inside the mould when it is rolling. The machine makes full use of the rolling force and centrifugal force to produce high quality and solid concrete pipes.

Cement pipe mould -- Overview:
Concrete pipe mold is made for equiped on suspension roller concrete pipe making machine for concrete pipe molding process.Each mold can produce one pipe once.Manual feeding or automatic machine feeding concrete directly into mold,after around 15 minutes rolling,pipe is molded.And after 3-4 hours steam curing,the mold will be released from pipe.A whole pipe making process is over.

Cement pipe mould --Types:

Joint Length Diameter
Plain 1000mm-4000mm 300mm-2200mm
Socket and Spigot 1000mm-4000mm 600mm-2200mm
Male and Female 1000mm-4000mm 200mm-2500mm

Cement pipe mould --Details:
