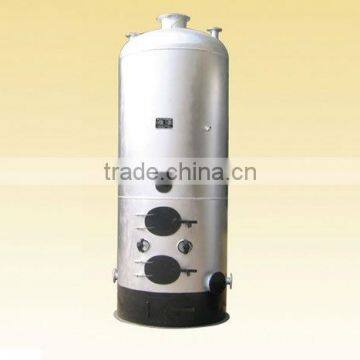

Industrial gas oil coal electric thermal oil heater

Specifications

Introduction of organic heat transfer media heating boiler

Flame and high temperature smoke produced by complete burning of fuel (coal, oil, gas, etc.) exchange heat with organic heat transfer media in the pipe by radiative transfer and convection transfer, at the same time, the organic heat transfer media is circulating in the system pushed by the pump. And then the using-heat equipment takes heat from the media, which goes back to the boiler after heat exchange. So it is an organic heat circulation system.
Process feature: low pressure and high temperature
Product feature:
1. High temperature in a low pressure
2. Stable heat system
3. Easily temperature control.
3. High heat efficient
4. Excellent operation control system
5. Safe monitor device
6. Less water, electricity, production cost
Technique data
Rated thermal power is 0.12Mw (10×104kcal/h) to 14Mw (1200×104kcal/h).
Design pressure is equal to or greater than 1 Mpa.
Operating temperature is equal to or less than 350°C.
Thermal efficiency is between 60% and 85% according to the difference of boiler type.
Fuel
Coal, water gas, city gas, mixed gas, light oil, heavy oil, residual oil, mixed oil, coal dust, coal water slurry, saw dust, bagasse, straw, waste oil and waste liquid.
Burning system
Coal-fired
Fixed grate combustion, hydraulic jacking system, spiral jacking system, reciprocal grate system, travelling grate system.
Oil-fired
Mechanical atomization system, rotary cup atomization system, set cup atomization system, steam atomization system, air atomization system.
Gas-fired
Fuel gas filter, pressure switch, Gas pressure regulator, leak detection pump, solenoid valve.
Application of thermal oil industrial heating boiler:
Chemical: polymerization, condensation, distillation, concentration, evaporation, fusion
Fat: decomposition, deodorization, distillation of aliphatic acid, heating, hydrogenation,
esterification.
Petrochemical: rectification, heating, thermal insulation
Plastic&Rubber: hot-press, calender, extrusion, vulcanization molding, artical leather
manufacture
Textile staining: heat setting, dry, curing
Fiber: polymerization, fusion, mould pressing, thermosetting, extension, dry
Carbon: bitumen fusion, dripping, mixing,molding
Wood: veneer, MDPE,HDPE,lamination flooring,birch hot-pressing, drying
Metal: pickling, electroplate, coating, oil bath, heat-treatmen
Coating: basting and drying, vehicle, plane, hot forming, hyperthermia bonding, drying
Construction: highway hitumen, dissolving, thermal insulation
Cement: fuel heating
Electric: resin impregnation, melting&holding
Air-condition: radiant heating
Others: different application of high temperature heat source below 350°C.
