pile cage making machine
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
QingZhou YiBang Concrete Batching Machine PLD Series
-
China quadski PLD series PL1200 concrete batching machines, concrete batching equipment, concrete mixing station
-
2013 best selling! concrete pipe cage making machine
-
quadski new quality warranty and low price mobile concrete mixer machine for sale
-
2015 china quadski new product hot sale china supler building construction portable mobile concrete cement mixer machinei
-
cage making machine used
Product Details
Place of Origin | Shandong, China | Brand Name | YB | |
Model Number | YB-w | After-sales Service Provided | Overseas third-party support available |
Product Description
pile cage making machine

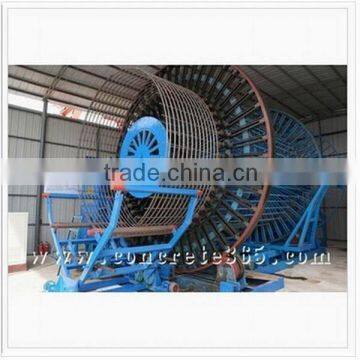

Working Principle of Wire Cage Forming Machine for Concrete Pipe
This machine includes three plates, one is the main plate rotating, the second plate is pushing wire, the other plate is used to Diameter-transformed automaticly. The three plates are controlled and drove by its own motor and variable Frequency control system.
Features:
1. Both flush joint cage, and Socket jonit cage, the angel of the bell can be adjusted.
2. PLC digital control system, and the Synchronous Ratio, Frequency converter, which promise the longitude steel bar straight, and the same span of the latitude steel bars.
3. One model machine can weld different diameter cages for the reinforced piWpes, from 800-2400mm, length: 1-4meter, this machine is multi-function, and man-machine interaction, easy to operate and maintenance.
Technical Index:
Model | DPM-1250 | DPM-1500 | DPM-2000 |
Diameter of longitudinal bars(mm) | 12-32 | 12-32 | 12-32 |
Diameter of spiral bars(mm) | 6-16 | 6-16 | 6-16 |
Distance between spiral wires(mm) | 50-500mm | 50-500mm | 50-500mm |
Max. cage diameter(mm) | 1250 | 1500 | 2000 |
Min. cage diameter(mm) | 300 | 400 | 500 |
Standard cage length(mm) | 12000 | 12000 | 12000 |
Max cage length(mm) | 27000 | 27000 | 27000 |
Packing Detail: Standard seaworthy packing or other packing according to customer’s requirements
Delivery Detail: 10-20 days after receiving payment
Pre-sale Service:
Analyze the customer’s need and market prospect. We offer free design, free technology support and free machine maintenance training.
In-sale Service:
Provide service of installation; provide training for operator and maintenance staff.
After-sale Service:
Long-life technical support
Supply parts service
Warranty: one year
Qingzhou Yibang machinery Co., Ltd. is located in Qingzhou City, Shandong Province, a developing city with long history. It is the professional manufacture of electric power tools and car care products in China. It is a high-tech enterprise which has a complete set of specialized designing, manufacturing, installation, sales and after-sale service. The company strictly executes quality standard or according to customers’ need to produce.
After many years of operation, our company has garnered widespread customer satisfaction and achieved great success through its reputation for excellence, top-notch quality, and impeccable service.
Electric power tools, Car care products and stone machinery is our main product. Yibang has developed into a famous enterprise with excellent management, standard operation.
Our corporate culture is "Unity, striving, sharing, respect and innovation." It is unity and innovation that are the strength of YIBANG.
Our Concept: "To achieve better quality and service”
Our Brief is ''Innovation creates power."
Please give us a chance, we'll offer you a satisfaction.
Welcome all customers both at home and abroad to establish business relationship with us.
- How about machine installation & commissioning, training?
2-3 technicians will be dispatched to Buyer’s plant for installation & commissioning. Working period: in 25 days.
The expense:
1) Buyer should be in charge of the interpretation and safety.
2) The expense (round trip tickets, accommodation, additional allowance to the technicians, etc. ) will be paid by Buyer/Seller should be determined according to the sale price.
