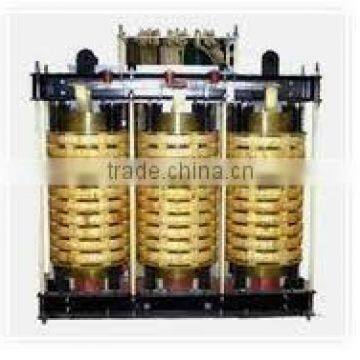

DRY TYPE LOW VOLTAGE TRANSFORMER

Specifications

DRY TYPE LOW VOLTAGE TRANSFORMER

MANUFACTURING STANDARDS

The transformers described in this catalogue are designed and tested in accordance to the European Union Harmonisation Documents HD 538 and HD 464 as well as IEC 726, IEC 76. standards. However, and by request, they can be manufactured according to other national or international standards.

RATINGS  100 - 160 - 200 - 250 - 315 - 400 - 500 - 630 - 800 - 1000 - 1250 - 1600 - 2000 - 2500 - 3000 - 3500 KVA .

HIGH VOLTAGE
This material is designed for voltages of ≤ 36 kV. Specific figures are not given for this parameter because of the wide variety of voltages used. Transformers can be supplied on demand to run at two different primary voltages.
LOW VOLTAGE
The no load low voltage is allocated at 420 V, though other voltages can be supplied on demand. When usage requires two voltage
transformers with two simultaneous voltages can be supplied. In this case the no-load voltages are set to 420 and 242 V.

SPECIAL PURPOSE EPOXY CAST RESIN TRANSFORMER

• Moisture proof

• No partial discharge

• High overload capability

• Superior Impulse voltage strength

• Short-circuit damage resistance.

• Thermal shock resistance

• Superior fire resistant design

• Maintenance free

• Environmentally safe

• Very low noise

• Very low operating cost.

 Special Purpose Transformers
The special purpose transformers found their application in areas where the voltage requirement of the machines available differ significantly from the standard voltage. Our special purpose transformers are at the forefront in the industry. We strictly adhere to the international quality standards while manufacturing these transformers. We also entertain custom requirements up to 5000 kva.
