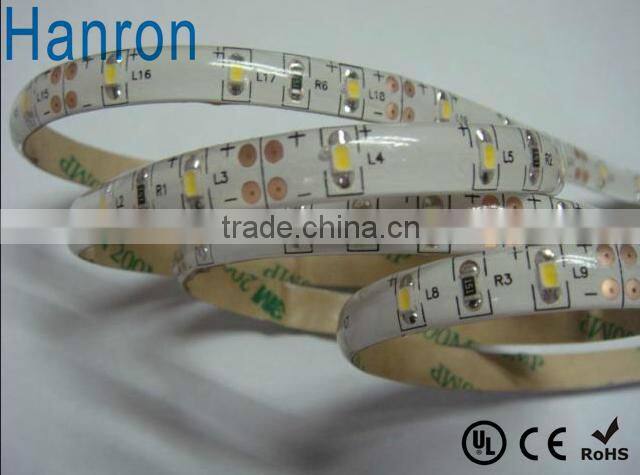

IP65 Epoxy Waterproof 14.4W/M SMD 2835 LED Flexible Strip Light Tape Rope Ribbon 12V 60led/m

     IP65 epoxy waterproof 14.4W/M SMD2835  LED flexible strip light tape rope                                                             12V 60led/m

Features:

* 2835 single color

* Size:1000*8mm

* Beam Angle:120 °

* LED:60leds/m

* 200MP 3M tape in the back

* Working Voltage :DC12V

* Working Current : 60 mA/ Group

* Power:14.4W/M

* CE&RoHS Certificated

* Black/white/yellow FPC are optional

Applications:

* Cove lighting

* Architectural lights for canopy, corridor, window, archway

* Backlight or edge lighting for signage

* DIY lights for home use

* Path and contour marking

* Decorative lights for holiday, event, show, exhibition

* Special light effect for art gallery and glass-made items

Electric parameters:

Dimensional Drawing(Unit: mm):

  Installation Instruction:

Notes:

* Connect red cable to positive, black cable to negative; equip safe protector to cable outlet, confirm input voltage of is 12V before power supply concatenation, working voltage is 12V, Wrong voltage concatenation will cause permanent damage.

* Max length for concatenation is 5M for one circuit. Make another circuit if length is over 5M. Same cable length for every circuit.

*Ensure cable outlet of strip to be waterproof

* Prohibit touching and operating with static

* Please use qualified SMPS with short circuit protection,overload protection and S.O.P. certificate.

*Diameter of electrical cable depends on actual max output current,product power,cabling length (less 5M)and low voltage transmission cable.

*Don’t hit,squeeze strip, don’t bend strip overly

* Ensure installed surface tidy, clean and dry.

* Avoid rain and mechanical vibration.

* Place SMPS in ventilated and dry environment

*Usually only80-90% of SMPS total power is consumed
