Home > Products > High Brightness LED Strip > IP66 Waterproof 24V Solid Led Light Strips Lights by the Foot RED 240Led SMD3528 High Power Led Strip
IP66 Waterproof 24V Solid Led Light Strips Lights by the Foot RED 240Led SMD3528 High Power Led Strip
US$ 1 - 10
/ Meter
200 Meters(Min. Order)
- Shenzhen
- T/T
You May Like
-
IP68 Protection Underwater Led Strip Red Smd 3528 240led LED Strip Light
-
IP20 Non Waterproof SMD 5630 for Samsung Type Single Color Flexible Led Strip Rope Lights 12V 5630
-
For Samsung Chip 5630 SMD 30led/m IP20 Non Waterproof Flexible Led Strip Rope Tape Light 12V
-
Cheap 12V Samsung Type 30led/m Smd 5630 Led Flexible Strip Rope Light IP20 Warm White Color
-
Double Row Silicone Tube LED Strip 24V Blue 240Leds SMD 3528 Flex Led Strip Tape Light
-
High Qualith IP68 Waterproof Led Strip Blue Smd3528 240leds 24V LED Strip Rope Light
Product Details
| LED Light Source | LED | Type | Flex LED Strips | |
| Input Voltage(V) | DC24V | Lamp Power | 19.2W/M | |
| Lamp Luminous Flux(lm) | 7-8lm/LED | Color Temperature(CCT) | 620-710nm | |
| Working Temperature(℃) | -40, 50 | Working Lifetime(Hour) | 30000 | |
| Lamp Body Material | Copper | Certification | CE | |
| Emitting Color | Red | Place of Origin | Guangdong, China | |
| Brand Name | Hanron | Model Number | HR00-A24ER240PA |
Product Description
IP66 Waterproof 24V solid led light strips lights by the foot RED 240Led SMD3528 high power led strip
SMD3528 LED Strip Specification:
| Item NO. | HR00-A24ER240PA |
| Voltage | 24V |
| Power | 19.2W/Meter |
| Led number | 240leds/Meter |
| CCT | 620-630nm |
| Color | Red |
| IP Grade | IP66 Silicone Tube Waterproof |
| Certificate | CE&RoHS |
| Warranty | 5Year |
Features:
TOP SMD3528 chip, high brightness, wide beam angle, low decay.
Low power consumption, long life span, free maintenance
Easy to install for any bending
Storage temperature:-50℃ - 60℃
Working temperature: -40℃ - 50℃
Certification: CE & RoHs

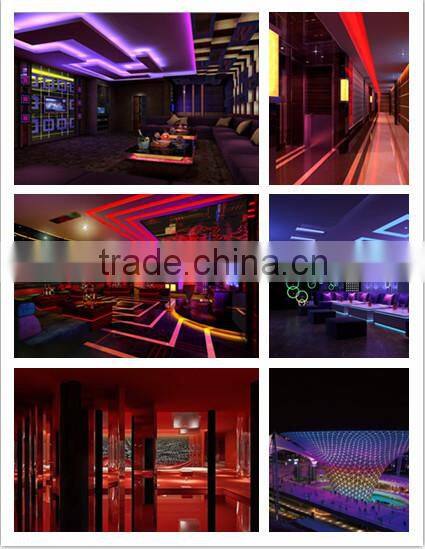

Application:
- Cove lighting
- Backlight or edge lighting for signage
- Path and contour marking
- Architectural lights for canopy, corridor, window, archway
- Special light effect for art gallery and glass-made items
- Path and contour marking
- DIY lights for home use
Parameter
| Item NO. | Description | Color | Wave Length/C. T. | Luminous Flux/M | Beam | Protect Level | Size |
| Angle | (mm) | ||||||
| HR00-A24AWW240PA | Non-Waterproof SMD3528 240LED/M | WW | 2800-3200K | 1560LM±10% | 120° | IP20 | 5000*20*2mm |
| HR00-A24ANW240PA | NW | 4000-4500K | 1560LM±10% | ||||
| HR00-A24AW240PA | W | 5500-6500K | 1560LM±10% | ||||
| HR00-A24AR240PA | Red | 620-630nm | 480LM±10% | ||||
| HR00-A24AY240PA | Yellow | 585-595nm | 480LM±10% | ||||
| HR00-A24AB240PA | Blue | 465-475nm | 288LM±10% | ||||
| HR00-A24AG240PA | Green | 520-530nm | 840LM±10% | ||||
| HR00-A24DWW240PA | Silicone Waterproof SMD3528 240LED/M | WW | 2800-3200K | 1560LM±10% | 120° | IP65 | 5000*20*2.2mm |
| HR00-A24DNW240PA | NW | 4000-4500K | 1560LM±10% | ||||
| HR00-A24DW240PA | W | 5500-6500K | 1560LM±10% | ||||
| HR00-A24DR240PA | Red | 620-630nm | 480LM±10% | ||||
| HR00-A24DY240PA | Yellow | 585-595nm | 480LM±10% | ||||
| HR00-A24DB240PA | Blue | 465-475nm | 288LM±10% | ||||
| HR00-A24DG240PA | Green | 520-530nm | 840LM±10% | ||||
| HR00-A24EWW240PA | Silicone Tube Waterproof SMD3528 240LED/M | WW | 2800-3200K | 1560LM±10% | 120° | IP67 | 5000*20*3.8mm |
| HR00-A24ENW240PA | NW | 4000-4500K | 1560LM±10% | ||||
| HR00-A24EW240PA | W | 5500-6500K | 1560LM±10% | ||||
| HR00-A24ER240PA | Red | 620-630nm | 480LM±10% | ||||
| HR00-A24EY240PA | Yellow | 585-595nm | 480LM±10% | ||||
| HR00-A24EB240PA | Blue | 465-475nm | 288LM±10% | ||||
| HR00-A24EG240PA | Green | 520-530nm | 840LM±10% | ||||
| HR00-A24FWW240PA | Glue Filling Waterproof SMD3528 240LED/M | WW | 2800-3200K | 1560LM±10% | 120° | IP68 | 5000*20*3.8mm |
| HR00-A24FNW240PA | NW | 4000-4500K | 1560LM±10% | ||||
| HR00-A24FW240PA | W | 5500-6500K | 1560LM±10% | ||||
| HR00-A24FR240PA | Red | 620-630nm | 480LM±10% | ||||
| HR00-A24FY240PA | Yellow | 585-595nm | 480LM±10% | ||||
| HR00-A24FB240PA | Blue | 465-475nm | 288LM±10% | ||||
| HR00-A24FG240PA | Green | 520-530nm | 840LM±10% |

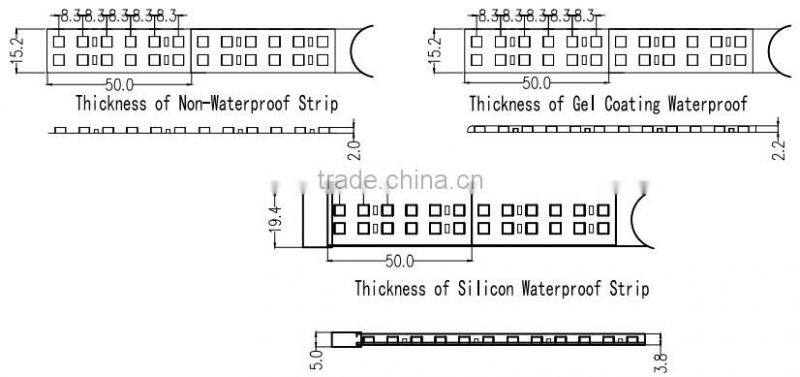

Dimension
Connect Drawing
Installation
1. The black of strip stick with 3M tape. Only need to rive the face paper on 3M tape when use.
2. Stick the strip anywhere 3M tape easy to fix.
3. When install strips, it can be cut at the marks of scissors according to length.
4. Fix the strips with screw of clip lock.
Certificate
Factory Tour 1
Factory Tour 2
Our Advantage
Quality Control
IP66 Waterproof 24V solid led light strips lights by the foot RED 240Led SMD3528 high power led strip
IP66 Waterproof 24V solid led light strips lights by the foot RED 240Led SMD3528 high power led strip
IP66 Waterproof 24V solid led light strips lights by the foot RED 240Led SMD3528 high power led strip
