Home > Products > Sand Washing machine > High Capacity New Spiral River Sand Washing Equipment

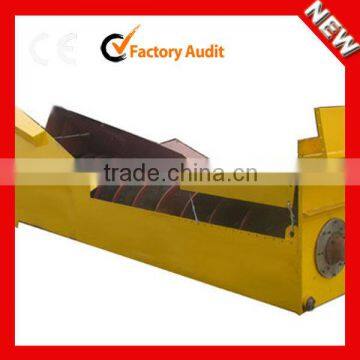

High Capacity New Spiral River Sand Washing Equipment
- 5000 Set / Sets per Month
- Qingdao
- T/T
You May Like
-
New High Capacity Wheel kinetic Sand Washing Equipment
-
New High Capacity XL Kinetic Black Sand Washing Machine Price
-
New Hot Sale High Capacity Wheel Silica Sand Washer
-
High Efficiency XL Spiral Spiral Sand Washer
-
New High Capacity Screw Silica Sand Washing Equipment Price
-
New Hot Sale High Capacity Wheel Gravel Sand Washer
Product Details
| Condition | New | Motor Type | AC Motor | |
| Power(W) | 15kw | Capacity(t/h) | 175 | |
| Place of Origin | Henan, China | Brand Name | zoonye | |
| Model Number | XL1115 | Dimension(L*W*H) | 10970*3945*4720mm | |
| Weight | 10.18t | Certification | CE, ISO9001:2000 | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
River Sand Washing Equipment1.High degree cleaning-up
2.Reasonable structure
3.Large capacity
4.Low power consumption
High Capacity New Spiral River Sand Washing Equipment
Vibration new screw river sand washing equipment is mainly used for sand processing, electric pole factory, building work site and concrete dam, various sands classifying and dewatering. This machine has three functions: washing, dewatering, classifying.
Features of River Sand Washing Equipment
1.High degree cleaning-up
2.Reasonable structure
3.Large capacity
4.Low power consumption
Working Principle of River Sand Washing Equipment
The screw river sand washing machine adopts inclination of 15°,under the water tub, three weir plates form the sediment pool, the screw head is immersed in this pool, the screw is driven by electric motor through reducer rotating continuously, the fresh water is feeding from porous plate at bottom of sediment pool.
Specification of River Sand Washing Equipment
Model
| XL508 | XL610 | XL762 | XL915 | 2XL915 | XL1115 | 2XL1115 |
Screw Diameter(mm)
| 508 | 610 | 762 | 915 | 915 | 1115 | 1115 |
Length of Tub (mm)
| 6705 | 7225 | 7620 | 7585 | 7585 | 9782 | 9782 |
Max Feed Size (mm)
| ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
Capacity (t/h) | 20 | 40-50 | 50-75 | 100 | 200 | 175 | 350 |
Speed Of Screw (r/min)
| 38 | 32 | 26 | 21 | 21 | 17 | 17 |
Motor Power (kw) | 5.5 | 7.5 | 11 | 11 | 2×11 | 15 | 2×15 |
Water Consumption (t/h)
| 6-60 | 6-63 | 9-63 | 10-80 | 20-160 | 20-150 | 40-300 |
Overall Dimensions(L×W×H)(mm)
| 8000×2343 | 8000×2050 | 8545×2650 | 8500×2810 | 8420×3765 | 10970×3945 | 10970×5250 |
Weight (t)
| 2.67 | 3.80 | 5.23 | 6.27 | 11.11 | 10.18 | 17.94 |
High capacity XL screw river sand washing equipment for sale , Zhengzhou Zoonye Mining Machinery Co., Ltd is a reliable supplier of screw river sand washing equipment.
