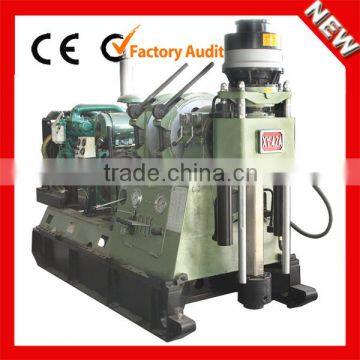

ZOONYEE Famous 200m Deep HZ-200 Water Digging Machines
- Qingdao Tianjin
- T/T
You May Like
-
2016 150m Depth Small Portable Water Well Drilling Machine From Zoonyee Manufacture
-
China 600 m Depth Good Quality XYX-3 Water Well Drilling Rig Low Price
-
New Design 150 m Drilling Depth Good Quality XYX-3 Water Well Drilling Rig for Selling From Zoonyee Manufacture
-
Water Well Drilling Rigs,Used Borehole Drilling Machine for Sale XYX-3 100m, 250m ,350m,600m Deep
-
2016 New Design 200m Drilling Depth Pneumatic Water Well Drilling Rigs for Sale
-
China Mobile Hydraulic Geotechnical Investigation Drill Rig
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Electric | Place of Origin | Henan, China | |
| Brand Name | Zoonyee | Model Number | HZ-200 | |
| Usage | Water Well | Voltage | 220v | |
| Power(W) | 15kw | Dimension(L*W*H) | 2.5*0.9*1.3m | |
| Weight | 1t | Certification | CE | |
| Warranty | 15 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
ZOONYEE famous 200m deep HZ-200 water digging machines
1. APPLICATIONS:
Geological drilling for railroad, highway, bridge tunnel, foundations of power station, Civil and industrial buildings, also drilling anchoring hole and blasting hole etc.
2. FEATURES
Spindle type mechanical transmission, hydraulic feed.
Hydraulic retracting lets drill body away from the drilling hole.
Hydraulic chuck, hand-powered chuck and hand-powered cylinder chuck, they are exchangeable.
Friction hoist, percussion drilling, easy to pull and push casing if equipped with vibrator.
Advanced design, reasonable arrangement, compact structure, beautiful looking.
Light weight, good detachability, easy to operate.
Equipped with special 6mA type derrick for user ordering.
3.Specifications | ||
Unity machine parameter | ||
Drilling depth | 30--200m | |
End hole caliber | 500-75mm | |
Drill rod caliber | 50mm | |
Drilling angle | 90°~75° | |
Drill weight (No include power) | 910kg | |
Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m | |
Spindle | ||
spindle speed | 64,128,287,557r/min | |
Spindle stroke | 450mm | |
Hoist | ||
Max.single line hoisting capacity | 2500kg | |
Single line lifting speed | 17,35,75,151r/min | |
Tightrope caliber | 12.5mm | |
Tightrope cubic measure | 35m | |
Hug floodgate caliber | 254mm | |
Hug folldgate belt width | 70mm | |
Distance between drill and hole | 400mm | |
Mud pump - Specifications | ||
Type | Horizontal single urn twin-action | |
Displacement | 170L/min | |
Diesle engine | S1115 model 22HP | |
Electric motor | Y160M—4 15kw 1440r/min | |
Maximum pressure | 1.5Mpa | |
Work pressure | 0.7Mpa | |
Water inlet caliber | 40mm | |
Water to exit caliber | 30mm | |
Triangle conveyer belt | B1728mm | |
