600m Depth XY-3 Hydraulic Rock Sampling Machine
US$ 5,000 - 7,000
/ Set
1 Set(Min. Order)
- Qingdao Tianjin
- T/T
You May Like
-
600m Depth XY-3 Small Bore Well Drilling Machine
-
China Hot Sale 600m Depth XY-3 Mining Core Bore Drilling Machine
-
China Professional 600m Depth XY-3 Underground Electric Mine Core Drilling Rig
-
600m Depth XY-3 Small Mine Core Rig
-
600m Depth XY-3 SonCap Hydraulic Portable Drilling Rig for Water Well
-
XY-3 Core Drilling Machine for Mineral Exploration
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Electric | Place of Origin | Henan, China | |
| Brand Name | Zoonyee | Model Number | XY-3 | |
| Usage | Water Well | Voltage | 220v | |
| Power(W) | 59kw | Dimension(L*W*H) | 2500*900*1800mm | |
| Weight | 1.6t | Certification | CE | |
| Warranty | 15 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

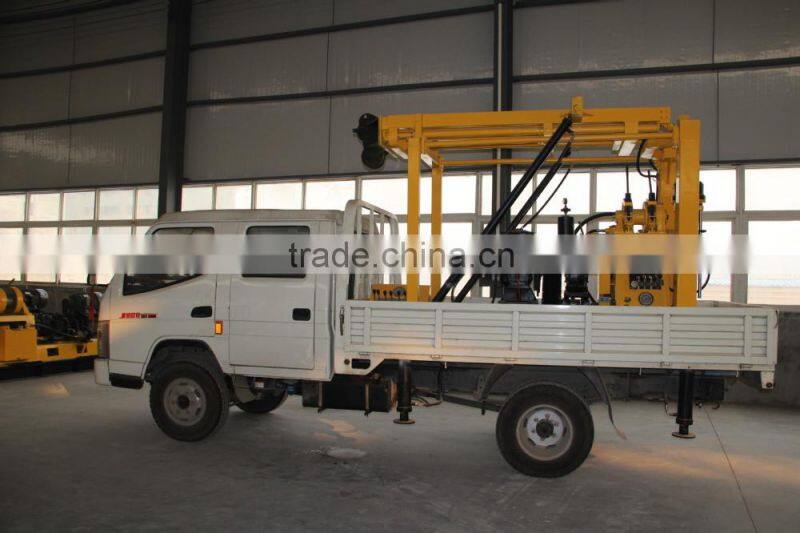

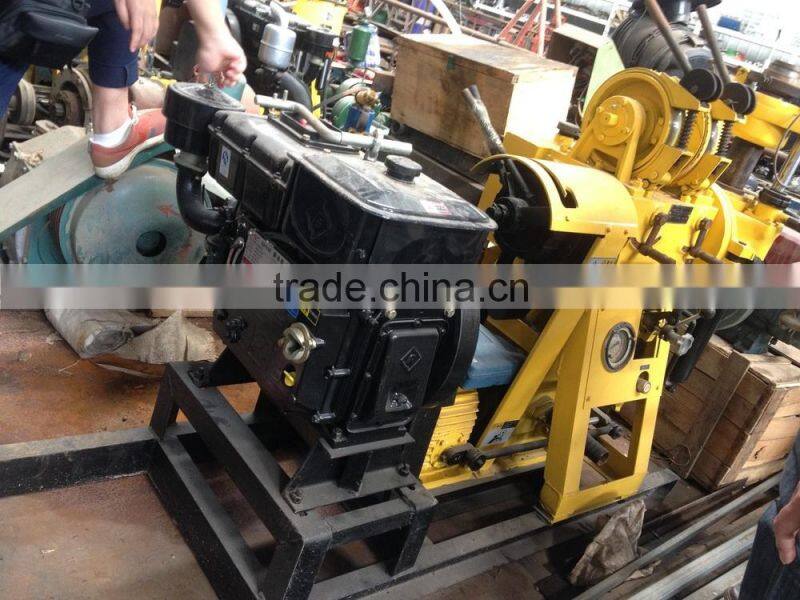

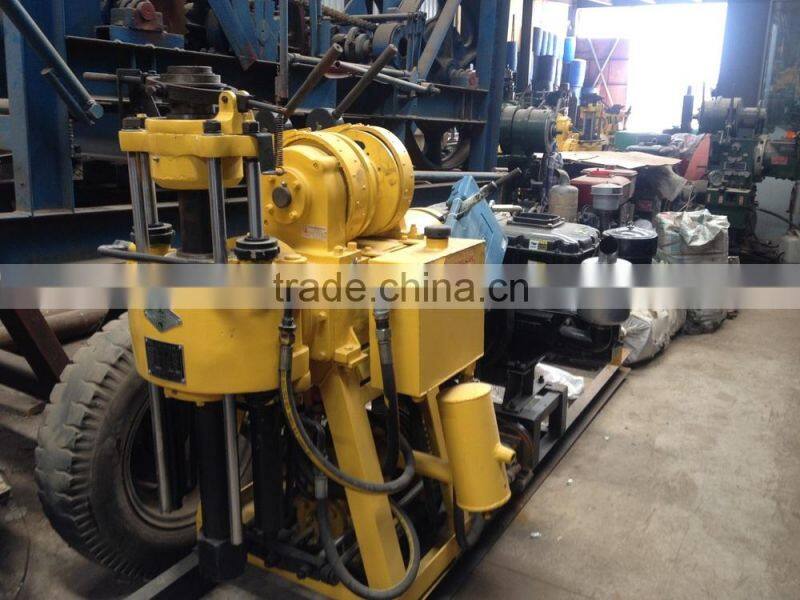

600m depth XY-3 hydraulic rock sampling machine
Product Description
Machine Parameter
| Unity machine parameter | |
| Drilling depth | 600m |
| Max open hole caliber | 300mm |
| End hole caliber | 75mm |
| Drilling Rod diameter | 60mm |
| Drilling angle | 90°~65° |
| Dimension | 2500 x 900 x 1800mm |
| Drill weight (without power) | 1600kg |
| Spindle | |
| spindle speed | Forward 30-1050r/min |
| Reverse 29 137r/min | |
| Spindle stroke | 600mm |
| Spindle inner diameter | 96mm |
| Lifting capacity | 6000kg |
| Hoist | |
| Max.Single line lifting capacity | 4000kg |
| Max.Single line lifting speed | 0.5-1.9m/s |
| Wirerope caliber | 12.5mm |
| Wirerope length | 50m |
| Reel diameter | 300mm |
| Hug folldgate belt width | 90mm |
| Mud pump | |
| Type | BW-250 |
| Displacement | 250 L/min |
| Work pressure | 80kg/cm² |
| Water inlet pipe diameter | 75 mm |
| Water outlet pipe diameter | 50 mm |
| Gear Oil pump | |
| Duplex gear oil pump | CBF-F63/25 |
| Front Displacement, pressure | 63 L/min 20Mpa |
| Behind Displacement, pressure | 25 L/min 20Mpa |
| Power | |
| Diesel engine | 4105 76HP |
| Electric motor | Y180L-4 59KW |
