Professional High Quality Mining Construction Vibrating Screen
- Qingdao Shanghai Tianjin.etc.
- T/T
You May Like
-
Famous China Brand Best Seller ZSW-490x96 Vibrating Rock Feeder
-
China YK Series High Efficiency Circular Vibrating Mining Screen
-
ZOONYEE Professional Stationary Rotary Trommel Screen
-
ZOONYEE Gold Mining Gravel Separator Trommel Drum Screen
-
ZOONYEE Drum Type Trommel Sieve Price
-
2014 Good Quality GZG Vibrating Feeder Producer
Product Details
| Condition | New | Type | Circular | |
| Application | Ore | Place of Origin | Henan, China | |
| Brand Name | ZOONYEE | Model Number | 3YK1235 | |
| Voltage | 380v | Power(W) | 7.5kw | |
| Weight | 3600kg | Certification | CE, ISO9001:2000 | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Vibrating Screen1 Stable performance under violent vibrating
2.Large handling capacity
3.Small amplitude, high frequency
China Construction Vibrating Screen
Introduction of Vibrating Sieve
Circular Vibrating Sieve is widely used for grading and screening materials in the fields of minerals, quarry, building materials, etc. Our vibrating screen has multi-layers and its screen size is various, it can screen out many kind of materials with different sizes.
Features of Vibrating Sieve
1. Stable performance under violent vibrating, for the fixing bolts are widely applied to connecting the main frame and the screen tightly.
2. Large handling capacity, which can reach 810 ton per hour.
3. Long flow line and various screening specifications.
4. Small amplitude, high frequency, large-inclination structure, high efficiency, large capacity, long service life, low power consumption and noise.
Working Principle of Vibrating Sieve
The vibrating sieve is to drive vibrator through V-belt under the power of ordinary motor, so that the screen body along the vibrating power direction to make a cyclical reciprocating, the material in the screen surface to make round movement, so as to make the materials sieved.
Specification of Vibrating Sieve
Model
| Sieve Layer
| Mesh Size(mm)
| Max. Feeding Size(mm)
| Capacity (m³/h)
| Motor Power(kw)
| Weight(kg) |
2YK1225 | 2 | 4-50 | 400 | 8-60 | 5.5 | 2500 |
3YK1225 | 3 | 4-50 | 400 | 10-70 | 5.5 | 2850 |
2YK1230 | 2 | 4-50 | 400 | 12-78 | 7.5 | 3000 |
3YK1230 | 3 | 4-50 | 400 | 13-80 | 7.5 | 3600 |
2YK1237 | 2 | 4-50 | 400 | 15-86 | 7.5 | 3600 |
3YK1237 | 3 | 4-50 | 400 | 16-90 | 7.5 | 4200 |
2YK1535 | 2 | 5-50 | 400 | 20-125 | 11 | 4890 |
3YK1535 | 3 | 5-50 | 400 | 21-125 | 11 | 5700 |
2YK1545 | 2 | 5-50 | 400 | 22-150 | 15 | 5330 |
3YK1545 | 3 | 5-50 | 400 | 22-150 | 15 | 5800 |
2YK1548 | 2 | 5-50 | 400 | 22.5-162 | 15 | 5980 |
3YK1548 | 3 | 5-50 | 400 | 22.5-162 | 15 | 6600 |
2YK1848 | 2 | 5-80 | 400 | 25-206 | 15 | 7080 |
3YK1848 | 3 | 5-80 | 400 | 32-276 | 18.5 | 7600 |
2YK1854 | 2 | 5-80 | 400 | 32-312 | 18.5 | 8150 |
3YK1854 | 3 | 5-80 | 400 | 32-312 | 22 | 8840 |
2YK2160 | 2 | 5-100 | 400 | 50-475 | 30 | 9780 |
3YK2160 | 3 | 5-100 | 400 | 50-475 | 30 | 10800 |
2YK2460 | 2 | 5-100 | 400 | 65-550 | 37 | 13600 |
3YK2460 | 3 | 5-100 | 400 | 70-620 | 37 | 15600 |
Pre-sale support
Select equipment model;
Design and manufacture products according to clients' special requirement;
Train technical personnel for clients.
Services during the sale
Pre-check and accept products ahead of delivery;
help clients to draft solving plans.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Zhengzhou Zoonyee Mining Machinery Co., Ltd are specialized in the research, production and sale of mining crushing equipment,sand making equipment and constuction waste recycling equipment.
Ourcompany always committed to providing the highgrade aggregate solution and advanced compete equipment for highway, railway, water and electricity engineering project.

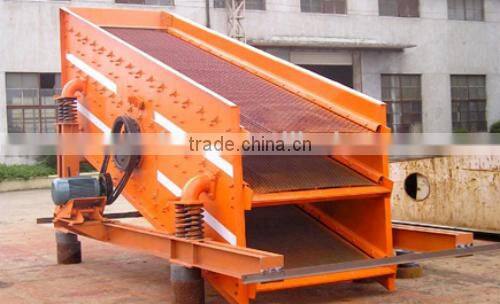

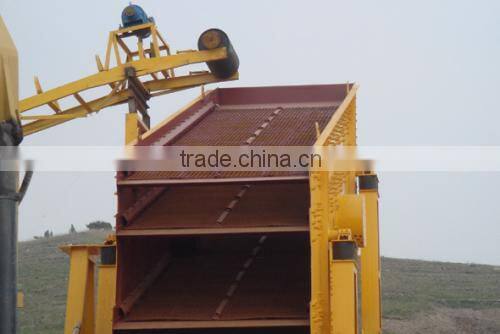

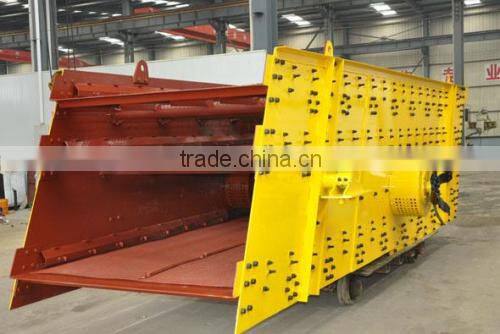

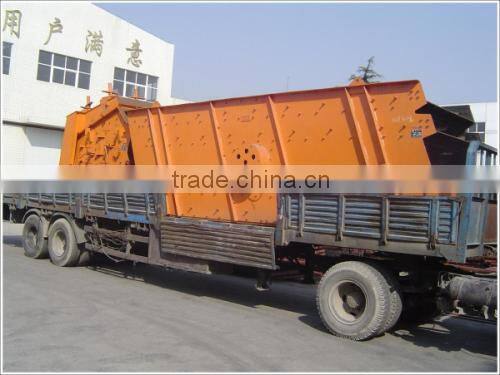

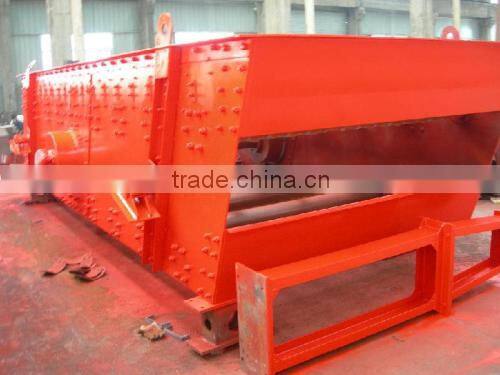

Photos of vibrating screen
Mining circular YK series vibrating sieve , rotary sand vibrating sieve are on sale
