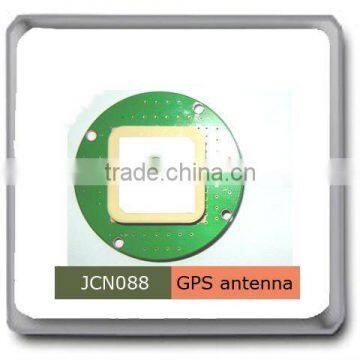

(Manufactory) GPS Auto/Vehicle/Navigation Active Tracker Antenna

FOB Price

USD $1 - $3 / Piece

100 Pieces(Min.Order)

Supply Ability 10 Piece / Pieces per Month
Port SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	JIASHANJINCHANG
Model Number	JCN088

Product Description

Specifications

Car antenna
Center Frequency 1575.42 MHz
Band Width 5 MHz
LNA Gain 29 dB
Noise Figure 1.5 dB

Gps Antenna For Android

Advantages:

1.We have our own factory, offering dozens of antenna lines and over 20 R&D personnel.
2.We can make your own bespoke designs and samples to order.

3.We have an impressively quick reaction time to all your orders and requests, pre-production.
4. In Jinchang's R&D office, the Technical personnel to meet various requirements for you.

Specifications GPS internal Antenna
1)Directly Antenna Factory
2)High quality and competitive price
3)For GPS Tracker
4)Easy to install
GPS internal Antenna with 1.13 cable IPEX UFL connector
Help your GPS to get stronger signal
Picks up your position rapidly

SPECIFICATIONS

Item		Specifications
Antenna	Center Frequency	1575.42±3MHz
	Band Width	CF±4MHz
	Polarization	RHCP
	Gain	2dBi(Zenith)
	V.S.W.R	<1.5
	Impendance	50Ω
	Axial Ratio	3dB(max)
	Dimension	18184mm
LNA	Gain	20±2dB
	Noise Figure	<1.3
	Supply Voltage	3V DC
	Current Consumption	9mA
	V.S.W.R	<2.0
Mechanical	Cable	RF1.13/RF1.37 or others
	Connector	IPEX or others
	Mounting Method	Screw
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 75%
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

If you want to know more information about our products welcome to contact us in any time, And welcome to our company! We display more new products in our showroom.
