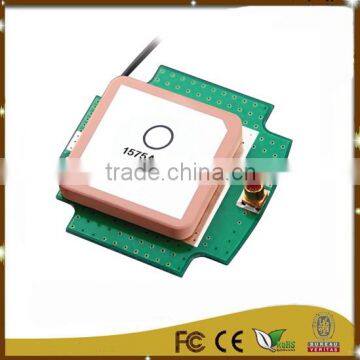

(Manufactory) GPS Auto/Vehicle/Navigation Active Tracker Antenna

Specifications

Gps Antenna For Android

Advantages:

1.We have our own factory, offering dozens of antenna lines and over 20 R&D personnel.
2.We can make your own bespoke designs and samples to order.

   3.We have an impressively quick reaction time to all your orders and requests, pre-production.
4. In Jinchang's R&D office, the Technical personnel to meet various requirements for you.

3.Electrical Characteristics

3.1 Dielectric Antenna

                                              Form 1

3.2 LNA/Filter

Form 2

3.3  Mechanical

Form 3

4     Reliability

Condition:Temperature: 40±5°C

Load: DC=5V±0.5 V

Quantity: 2000pcs

Sustained Time: 480h

5     Environmental Specifications

Post Environmental Tolerance (Refer to the form 1~2)

Condition:Temperature range 25±3°C

Relative Humidity range 55~75%RH

Operating Temperature range -40°C~+85°C

Storage Temperature range -40°C~+100°C

5.1 Moisture Proof

The device should satisfy the electrical characteristics specified in form 1~2 after exposed to the temperature 40±2°Cand the relative humidity 90~95% RH for 96 hours and 1~2 hours recovery time under normal condition.

5.2 Vibration Resist

The device should satisfy the electrical characteristics specified in form 1~2 after applied to the vibration of 10 to 55Hz with amplitude of 1.5mm for 2 hours each in X , Y and Z directions.

5.3 Drop Shock

The device should satisfy the electrical characteristics specified in form 1~2 after dropping onto the hard wooden board from the height of 30cm for 3 times each facet of the 3 dimensions of the device.

5.4 High Temperature Endurance

The device should satisfy the electrical characteristics specified in form 1~2 after exposed to temperature 80±5°Cfor 24±2 hours and 1~2 hours recovery time under normal temperature.

5.5 Low Temperature Endurance

The device should also satisfy the electrical characteristics specified in form 1~2 after exposed to the temperature -40°C±5°Cfor 24±2 hours and to 2 hours recovery time under normal temperature.

5.6 Temperature Cycle Test

The device should also satisfy the electrical characteristics specified in form 1~2 after exposed to the low temperature -25°C and high temperature +85°C for 30±2 min each by 5 cycles and 1 to 2 hours recovery time under normal temperature.

....
