Home > Products > Cable Glands/Connector > TH TJ Type Marine Cable Gland,stuffing Box

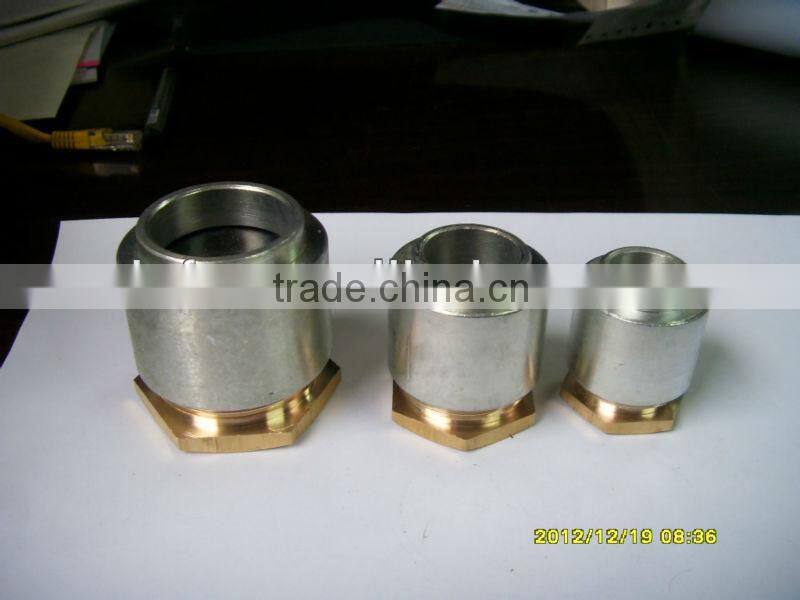

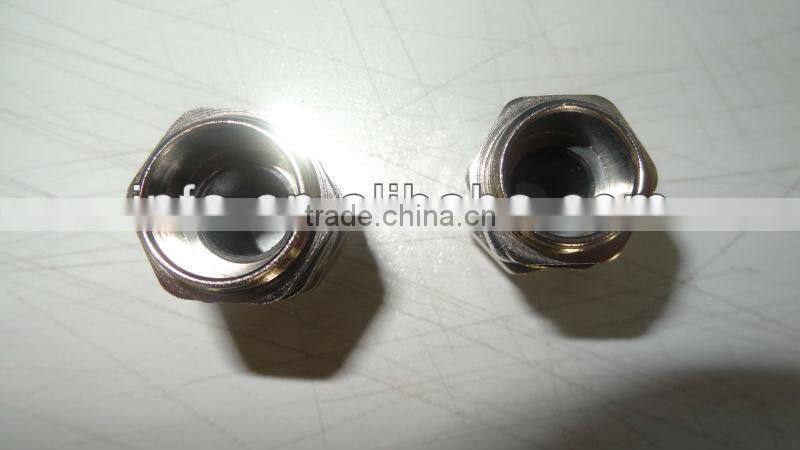

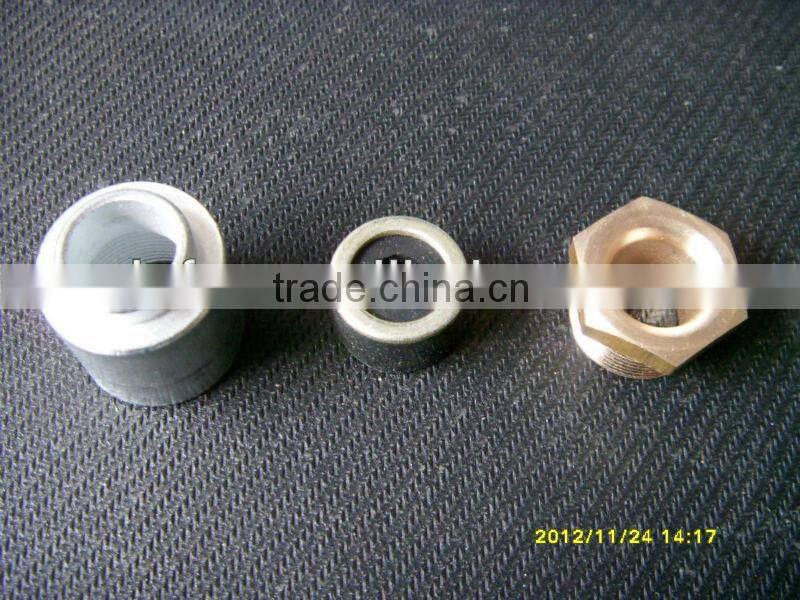

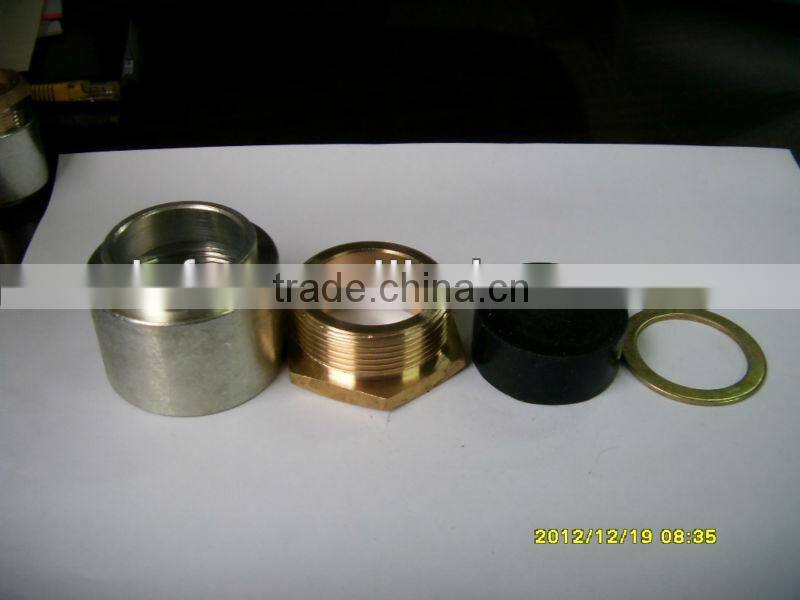

TH TJ Type Marine Cable Gland,stuffing Box
Negotiable
/ Piece
1000 Pieces(Min. Order)
- NINGBO OR SHANGHAI
- T/T Credit Card
You May Like
-
Pvc Cable Gland Size
-
Pvc Cable Gland / Nylon 66 Cable Gland Quality
-
Marine Cable Gland/ Multi-hole Cable Gland/ Plastic Cable Gland
-
Marine Cable Gland/cable Gland pg 21/stuffing Cable Gland
-
Marine Cable Gland/cable Gland pg 21/stuffing Cable Gland
-
Marine Cable Gland/cable Gland pg 21/pvc Stuffing Cable Gland
Product Details
| Place of Origin | Zhejiang, China | Brand Name | INFA | |
| Model Number | TH TJ TG JIS | Protection Level | IP68 | |
| Size | Various, can be customized | Material | Brass |
Product Description
1. Standards supplied:GB/T3667,1-1995
2.The materials used copper galvanization
3.The materials can be selected by customers
4.Can be OEM from customer standards

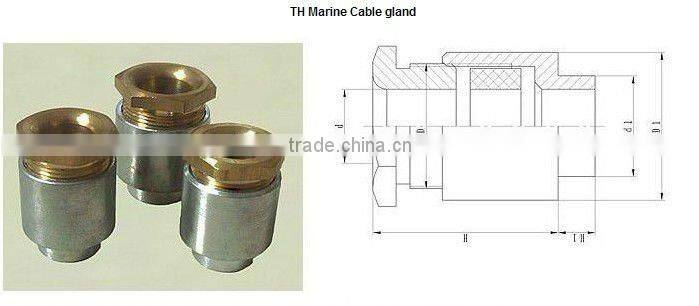

| Item NO. | d | D | d1 | D1 | H | Gasket | Suit outside Diamen=ter of cable | |
| YFTH8 | 8 | M16x1 | 13 | 20 | 32 | 8x14 | 5-7 | |
| YFTH13 | 13 | M20x1 | 17 | 25 | 35 | 13x18 | 9-12 | |
| YFTH16 | 16 | M27x1.5 | 22 | 32 | 40 | 16x24 | 12-15 | |
| YFTH19 | 19 | M30x1.5 | 25 | 36 | 42 | 19x27 | 15-18 | |
| YFTH24 | 24 | M36x1.5 | 30 | 42 | 44 | 24x33 | 20-23 | |
| YFTH28 | 28 | M42x2 | 35 | 48 | 46 | 28x38 | 24-27 | |
| YFTH34 | 34 | M48x2 | 42 | 54 | 49 | 34x44 | 29-33 | |
| YFTH42 | 42 | M56x2 | 50 | 62 | 54 | 42x52 | 36-41 | |
| YFTH50 | 50 | M64x3 | 58 | 70 | 46 | 50x59 | 44-49 | |
| YFTH58 | 58 | M72x3 | 66 | 78 | 46 | 58x67 | 52-57 | |
Item NO. | d | D | d1 | metal shielding | D1 | H | H1 | Gasket | E | Suit outside Diamen=ter of cable |
| YFTJ8 | 8 | M16x1 | M14x1 | M13x1 | 20 | 32 | 10 | 8x14 | 22 | 5-7 |
| YFTJ13 | 13 | M20x1 | M18x1 | M18x1 | 25 | 35 | 11 | 13x18 | 28 | 9-12 |
| YFTJ16 | 16 | M27x1.5 | M22x1 | M22x1 | 32 | 40 | 11 | 16x24 | 37 | 12-15 |
| YFTJ19 | 19 | M30x1.5 | M27x1.5 | M24x1 | 36 | 42 | 14 | 19x27 | 42 | 15-18 |
| YFTJ24 | 24 | M36x1.5 | M30x1.5 | M30x1 | 42 | 44 | 14 | 24x33 | 48 | 20-23 |
| YFTJ28 | 28 | M42x2 | M36x2 | M34x1.5 | 48 | 46 | 14 | 28x38 | 53 | 24-27 |
| YFTJ34 | 34 | M48x2 | M42x2 | M40x1.5 | 54 | 49 | 14 | 34x44 | 64 | 29-33 |
| YFTJ42 | 42 | M56x2 | M52x2 | M50x2 | 62 | 54 | 14 | 42x52 | 75 | 36-41 |
| YFTJ50 | 50 | M64x3 | M58x2 | M58x2 | 70 | 46 | 20 | 50x59 | 81 | 44-49 |
| YFTJ58 | 58 | M72x3 | M68x3 | M66x2 | 78 | 46 | 20 | 58x67 | 92 | 52-57 |
| YFTJ70 | 70 | M80x3 | M78x3 | M78x2 | 90 | 57 | 20 | 70x77 |
...
