Home > Products > Cable Glands/Connector > Nickel Plated Marine Cable Glands M25X1.5
Nickel Plated Marine Cable Glands M25X1.5
US$ 0.1 - 6.5
/ Piece
1000 Pieces(Min. Order)
- Ningbo or Shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | INFA | |
| Model Number | YF | Type | Other, Cable Gland | |
| Material | Other, Brass, Brass |
Product Description

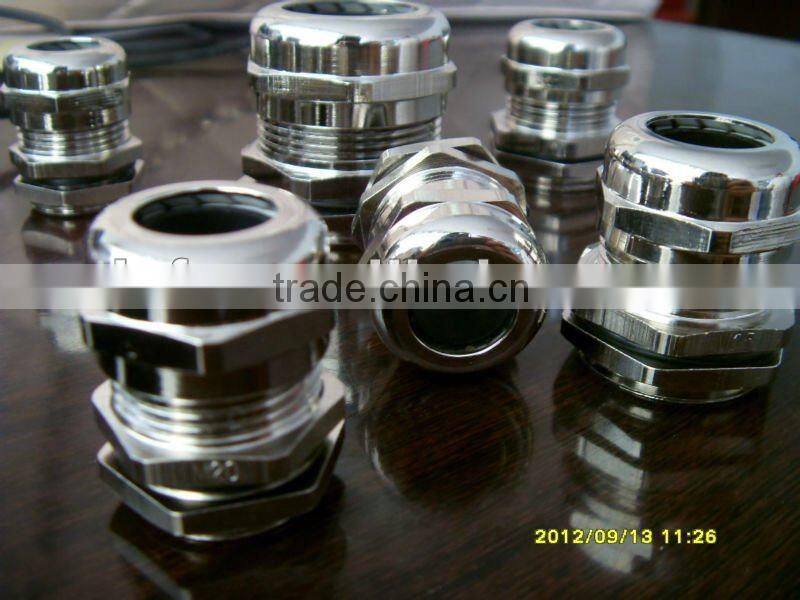

Nickel Plated Brass Cable Glands
1.Material:Body:nickel-plated brass Seal:Polyamide 66,Sealing:NBR
2.Protection degree: With the Clamping range,its protection degree can reach IP68.
3.Properties:pass ROHS
4.Temperature Range: Stat: Min. -40C,Max. 100C,Short-term 120C
Dyn:Min. -20C,Max. 80C,Short-term 100C
| Article No. | clamping range | AG | GL | Wrench size | packet | |||
| mm | mm | mm | mm | mm | units | |||
| M12×1.5 | 3~6.5 | 12 | 6 | 14 | 50 | |||
| M16×1.5 | 2.5~6 | 16 | 6 | 18 | 50 | |||
| M16×1.5 | 4~8 | 16 | 6 | 18 | 50 | |||
| M16×1.5 | 5~10 | 16 | 6 | 20 | 50 | |||
| M18×1.5 | 5~10 | 18 | 6 | 20 | 50 | |||
| M20×1.5 | 5~9 | 20 | 7 | 22 | 50 | |||
| M20×1.5 | 6~12 | 20 | 7 | 22 | 50 | |||
| M20×1.5 | 8~14 | 20 | 7 | 24 | 50 | |||
| M22×1.5 | 8~14 | 22 | 7 | 24 | 50 | |||
| M24×1.5 | 7~12 | 24 | 7 | 27 | 50 | |||
| M24×1.5 | 8~14 | 24 | 7 | 27 | 25 | |||
| M25×1.5 | 8~14 | 25 | 7 | 28 | 25 | |||
| M25×1.5 | 10~16 | 25 | 7 | 28 | 25 | |||
| M25×1.5 | 13~18 | 25 | 7 | 30 | 25 | |||
| M27×2.0 | 11~16 | 27 | 8 | 30 | 25 | |||
| M27×2.0 | 13~18 | 27 | 8 | 30 | 25 | |||
| M30×2.0 | 11~16 | 30 | 8 | 34 | 25 | |||
| M30×2.0 | 13~18 | 30 | 8 | 34 | 20 | |||
| M32×1.5 | 11~18 | 32 | 8 | 36 | 20 | |||
| M32×1.5 | 15~22 | 32 | 8 | 36 | 20 | |||
| M32×1.5 | 18~25 | 32 | 8 | 40 | 20 | |||
| M33×2.0 | 18~25 | 33 | 8 | 40 | 20 | |||
| M36×2.0 | 14~21 | 36 | 8 | 40 | 20 | |||
| M36×2.0 | 18~25 | 36 | 8 | 40 | 20 | |||
| M40×1.5 | 16~25 | 40 | 9 | 45 | 20 | |||
| M40×1.5 | 21~30 | 40 | 9 | 45 | 10 | |||
| M40×1.5 | 22~32 | 40 | 9 | 50 | 10 | |||
| M42×2.0 | 22~32 | 42 | 9 | 50 | 10 | |||
| M48×2.0 | 22~32 | 48 | 9 | 55 | 10 | |||
| M50×1.5 | 30~38 | 50 | 9 | 60 | 10 | |||
| M56×2.0 | 30~38 | 56 | 9 | 60 | 5 | |||
| M60×2.0 | 37~44 | 60 | 10 | 65 | 5 | |||
| M63×1.5 | 37~44 | 63 | 10 | 70 | 5 | |||
| M63×1.5 | 42~53 | 63 | 10 | 75 | 5 | |||
| M64×2.0 | 37~44 | 63 | 10 | 70 | 5 | |||
| M72×2.0 | 42~52 | 72 | 10 | 78 | 5 | |||
| M75×2.0 | 42~52 | 75 | 10 | 78 | 5 | |||
| M80×2.0 | 55~60 | 80 | 15 | 88 | 5 | |||
| M88×2.0 | 65~70 | 88 | 15 | 98 | 5 | |||
| M100×2.0 | 75~84 | 100 | 17 | 110 | 5 | |||
...
