Home > Products > WHEEL LOADER 2TON SERIES > CS920 Wheel Loader With Joystick and Quickhitch for Russian Market
CS920 Wheel Loader With Joystick and Quickhitch for Russian Market
- QingDao Port
- T/T
You May Like
Product Details
| Condition | New | Brand Name | CASER | |
| Model Number | ZL20F | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 4480*1400*2200 | Certification | CE | |
| Warranty | One Year |
Product Description
Specifications
*CE CERTIFIED;Qingzhou Caser Trading Co.,LTD

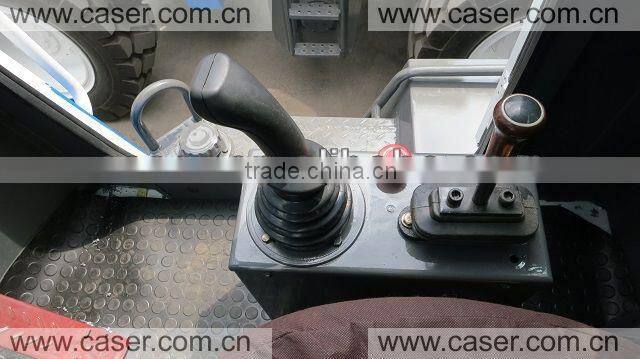

ZL20F wheel loader with joystick and quickhitch

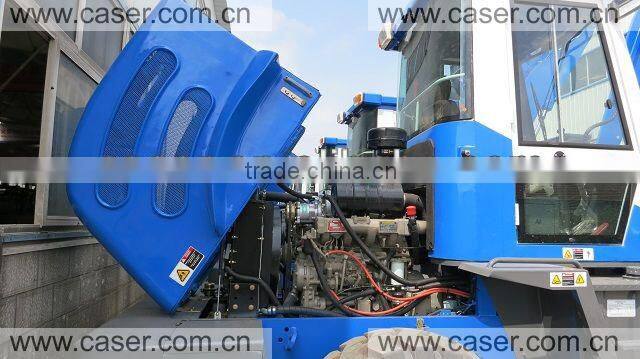

1.Engine:LUOTUO 4108
2.CE approved
3.Air conditioner
THE TECHNICAL PARAMETERS OF ZL20F CE CERTIFICATE MINI WHEEL LOADER | |||||
Bucket Capacity (m3) | 1.0m³ | Operating Weight (kg) | 5700kg | ||
Bucket width(mm) | 2100 | Brake mode | Four-wheel hydraulic spead-shoed brake | ||
Rated Load (kg) | 2000kg | Driving mode | Four-wheel drive | ||
Max. Breakout Force (KN) | 60 | Overall Dimensions (mm) | L:5800xW:2000xH:2750 | ||
Forward Speed 1st (km/h) | 0-12 | Full Bucket Lifting Time (s) | 5s | ||
Forward Speed 2nd (km/h) | 0-25 | Total Hydraulic Cycle Time (s) | 9s | ||
Reverse Speed (km/h) | 0-25 | Tread Width (mm) | 380 | ||
Max. Dumping Height (mm) | 2800 | Wheel Base (mm) | 2350 | ||
Max. Dumping Reach (mm) | 1050 | Min. Clearance Over Ground (mm) | 350 | ||
Min. Turning Radius (mm) | 4600 | MAX.tilt angel(°) | 30 | ||
Diesel Engine | Brand | Dongfanghong 4108 engine | Steering System | Working Pressure (MPa) | 10MPa |
Type | In-line arrangement,water cooled,four-cycle diesel engine | Max. Steering Angle (°) | 30 | ||
Rated Output (kw) | 60kw | Working Hydraulic System | Pressure Of Tire (MPa) | 2.5-3.5 | |
Rated Speed (rpm) | 2200rpm | Working Pump Type | Gear pump | ||
Engine starting mode | Electric | Working Pressure (MPa) | 16MPa | ||
Transmission | Type | Fixed-spindle Power shift with converter | Transaxle & Tire | Rear Axle Oscillation | Center oscillation |
Rated Input Speed (rpm) | 2200 | Oscillating Angle Of Rear Axle (°) | 13 | ||
