Home > Products > Globe valve > Ball Globe valve API Case Steel Globe Valve

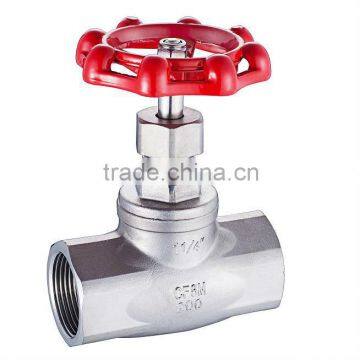

Ball Globe valve API Case Steel Globe Valve
- T/T Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Control | |
| Pressure | Medium Pressure | Power | Hydraulic | |
| Material | Stainless Steel | Temperature of Media | Normal Temperature | |
| Media | Base | Place of Origin | Shanghai, China | |
| Brand Name | Bocica |
Product Description
Specifications
BW end dimension: ASME B16.25.Socket-weld dimension: ASME B16.11.
Face to face and end to end: ASME B16.10.
Bocica Valve Co,. Ltd , valve manufacturer, specialized in ball valve, globe valve, check valve and other items.
Specification
1 Valve design and manufacturing requirements in accordance with BS 1873
2 Valve pressure and temperature basis, by the provisions of ANSI B16.34
3 The connection flange in accordance with the provisions of ASME B 16.5
4 The valve according to API 598 inspection and acceptance requirements
Inspection and Test: API 598.
BW end dimension: ASME B16.25.
Socket-weld dimension: ASME B16.11.
Face to face and end to end: ASME B16.10.
Pressure-temperature ratings: ASME B16.34.
Parts material
NO. |
Parts name | Material | |
Stainless Steel | Cast Steel | ||
1 | Body | A351 CF8 | A216 WCB |
2 | Disc | A182-F304 | 2Cr13 |
3 | Stem | A182-F304 | A182-6a |
4 | Disc cover | A182-F304 | 2Cr13 |
5 | Spiral wound gasket | PTFE | Flexible Graphite |
6 | The seal seat | F304 | 2Cr13 |
7 | Valve Cover | A351-CF8 | A216-WCB |
8 | Bolt | A193-B8 | A193-2H |
9 | Nut | A194-8 | A194-2H |
10 | Packing | PTFE | Flexible Graphite |
11 | Press kit packing | Cf8 | 2Cr13 |
12 | Packing plate | Cf8 | A216-WCB |
13 | Pin | 410 | 35 |
14 | Bolt | A193-B7 | A193-B7 |
15 | Stem nut | ZCuA110Fe3 | ZCuA110Fe3 |
16 | Screw | 410 | A105 |
17 | Hand wheel | KTH300-8 | KTH300-8 |
18 | Nameplate | L2 | L2 |
19 | Nut | B8 | A194-2H |
20 | Washer | 410 | Q235A |
