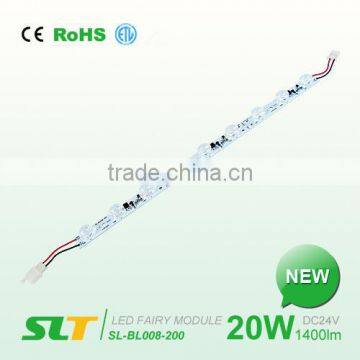

SLT LED Edge Light LED Module 10 Degree x 40 Degree for Aluminum Light Box

SLT LED Edge Light LED Module 10 Degree x 40 Degree for Aluminum Light Box

Other led light bar options:

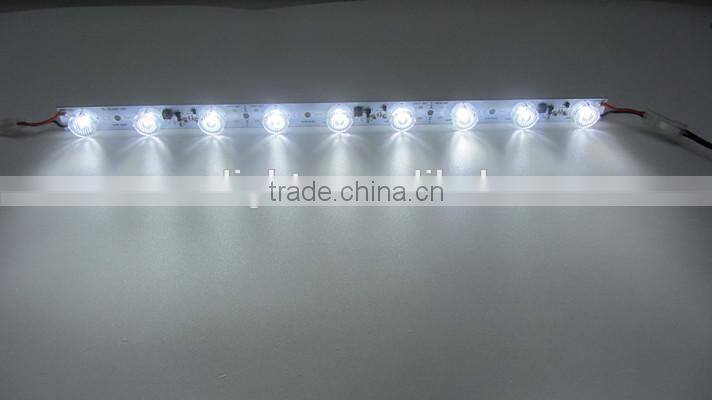

High power led light bar is good backlight source for light box. It is 9led/bar, and you can cut by 3pcs/bar as per your requirement, the working voltage can be both DC12V or DC24V, The lens is transparent and looks elegant.

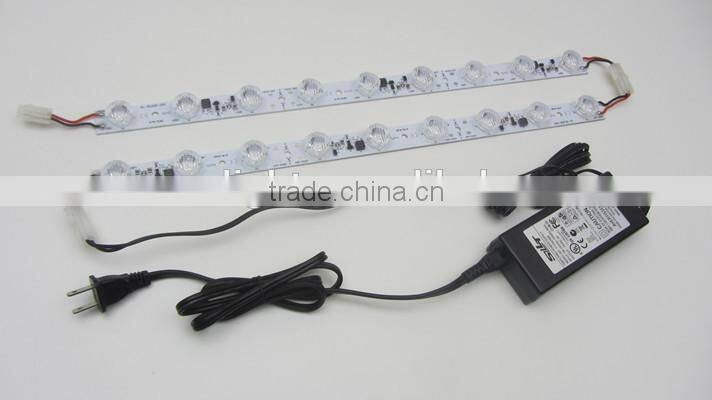

Transformer :

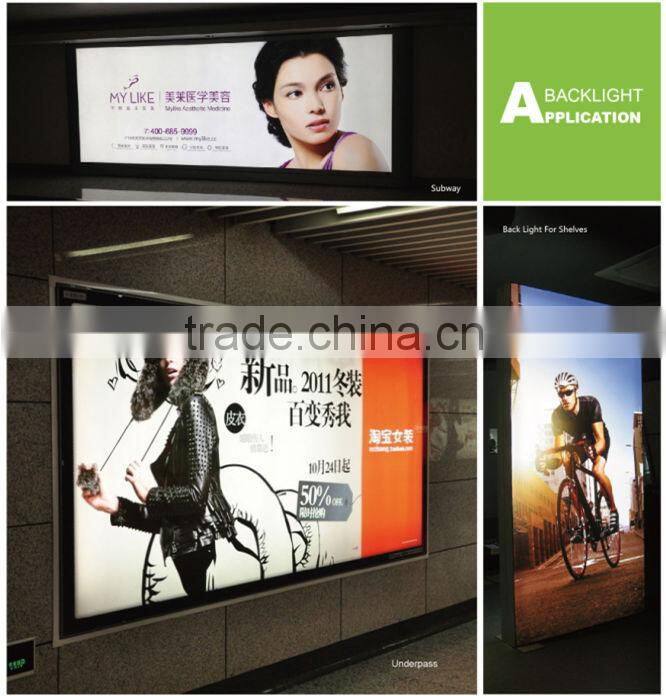

Application:

High power led strip l ight  is widely used in frame light box, double sides light box,

advertisement,and private places.

Excellent lighting effect and energy saving capacity are the top advantages that replace the traditional light.

High power led strip light is very popular in domestic and oversea market.

Installation

1. The high power cree led module should be installed on the sides of light box

2. If the width of the light box is within 1.2m, you can just install the high power cree led module on 2 sides, if wider than 1.2m, you should install the high power led edge light on four sizes of the light box.

3. The maximum size of the light box is 3m*3m, if the light box is much bigger, there will be a dark area in the middle of the light box.

4. The high power cree led module should be used in the light box whose depth should be at least 7cm for one side light box,for double sides light box, the depth should be at least 12cm.

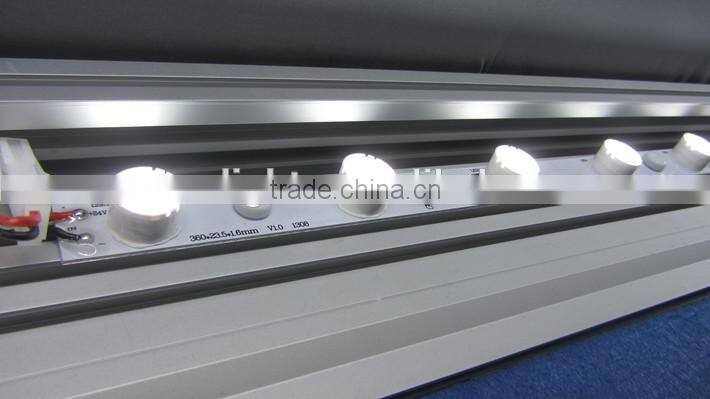

5. High power cree led module should be installed on aluminum profile for heat sink, otherwise, it will shorten its life span

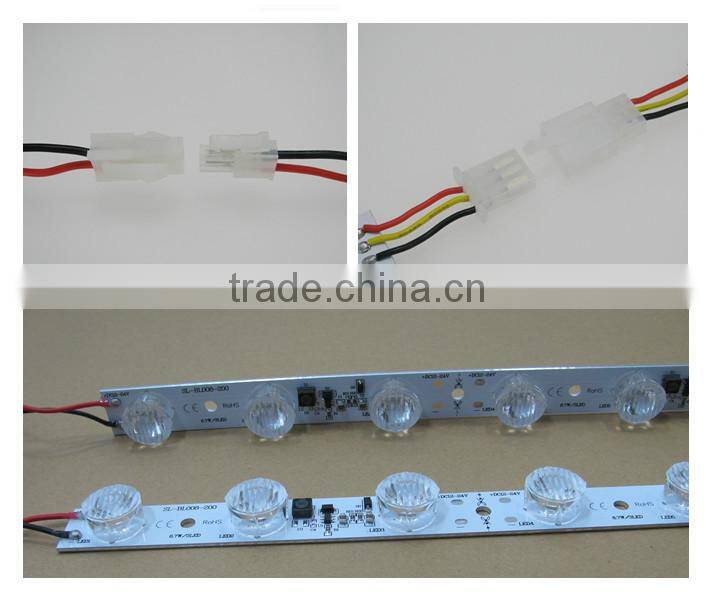

6. With Male and female plug terminal, easy installation,simple and beautiful

Any more question about the installation pls feel free to contact with us.

CAUTION :

Please read the specification carefully,before installation pls ensure the application environment meets the requirement.

Please shut off the switch before installation, and ensure the output voltage of power supply is DC24V

Power supply should be RESERVED 20% , such as 5A, 120w, Max. can be installed 100W

Indoor use only.

Why clients choose us?
1. Good quality
2. Resonable price
3. Safety packaging

4. Short lead time

5. One-Stop service

Specifications:

Quality control:

1. Before producing, we would strictly check the material, color, wick,etc.

2. Aging for every light about 12-24hours

3. Our salesman would trace every phase of production from the beginning.

4. We have a QC team, every piece product sould be inspected before packing.

About us:

Our factory established in 2004, which is located in beautiful Xiamen City.

We are professional manufacturer of adertising lights, such as, trade show display light,exhibition arm light, pop up light, LED module and LED Backlight. We have been in this line for about 10 years  Our products have been exported to USA, Europe, Australia and Middel East, South Affrica, etc.

We possess around 30 technical achievements, 23 of them have been patented. Based on our experience,our reasonable price, high quality and considerate service. Our products enjoy high reputation in our domestic and oversea market.

♥ if you want to know more about our products, pls feel

   free to contact us.
