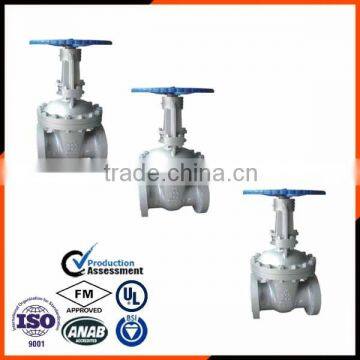

Manual API Rising Stem Gate Valve Used In Oil & Gas From China
US$ 5.46 - 50
/ Piece
1000 Pieces(Min. Order)
- Chinese main port
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Other, Carbon Steel | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | DN40 | |
| Place of Origin | Shanxi, China | Model Number | E4-HIG-2 | |
| Brand Name | HIG | Application | Other, General, Machinery |
Product Description
Product Description
API Gate Valve
Chief Property and specification
| Normal Pressure(Lb ) | Shell test | Water seal test | Air seal test | |||
| Mpa | Lbf/in2 | Mpa | Lbf/in2 | Mpa | Lbf/in2 | |
| 150 | 3.1 | 450 | 0.5-0.7 | 60-100 | ||
| 300 | 7.8 | 1125 | 5.6 | 815 | ||
| 600 | 15.3 | 2225 | 11.2 | 1630 | ||
| 900 | 23.1 | 3350 | 16.8 | 2440 | ||
| 1500 | 38.4 | 5575 | 28.1 | 4080 | ||
| 2500 | 64.6 | 9367 | 47.4 | 6873 | ||
Material list
Body cover disc | Stem | Sealing face | Sealing shim | Packing | Working temperature (°C ) | Suitable medium |
| WCB | 2Cr13 | 13Cr STL With bodymaterrial PTFE Nylon | Enhanced flexible 1Cr13/Flexible graphite SFB-2 08 08Soft steel F304 F316 F304L F316L | Flesible graphite enhanced flexible graphite SFB/260 SFP/260 PTFE | ≤425 | water steam petroleum products |
| WC1 | 38CrMoAI 25Cr2Mov | ≤450 | ||||
| WC6 | ≤540 | |||||
| WC9 | ≤570 | |||||
| C5C12 | ≤540 | |||||
| CF8 | F304 | ≤600 | Nitric acid aceic acid | |||
| CF3 | F316 | |||||
| CF8M | F304L | |||||
| CF3M | F316L |
Technical standard
Desubg abd manutacture | Face to face end to end | Flange dimension | Butt welding dimension | Pressure temperature lating | Inspection and test |
| AP160 | ANSI B16.10 | ANSI B16.5 | ANSI B16.25 | ANSI B16.34 | AP11598 |
