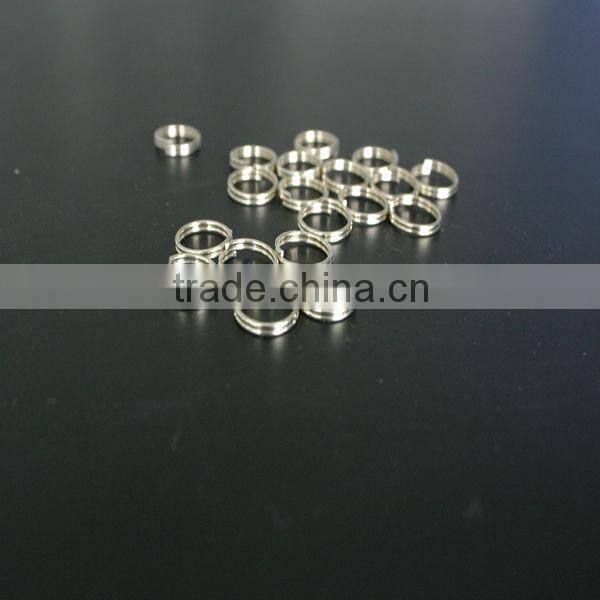

45% Silver Brazing Ring

Specifications

Composition, typical analysis(%w/w):

Mechanical and physical properties:

        Working temperature:                          730°C

        Melting range:                                      665-745 °C

        Tensile strength:                                  400-480N/mm²

Characteristics / Applications:

45% silver brazing alloy with good fluidity and capillary flow characteristics. For gap and joint brazing of alloyed and unalloyed steel, nickel and nickel alloys, malleable cast iron, copper and copper alloys and carbides. Approval: Marine code VG 81245, section 3. Also suitable for copper pipe installation according to DVGW work certificate GW 2. For brazing joints with a working temperature of max. 300°C

     45% silver brazing ring is a kind of Ag-Cu-Zn alloy. Corresponding SOPs(Standard Operating Procedure) are exercised in manufacturing,. The Quality Control Department gives the professional test in every procedure.
     BAg45CuZn silver ring mainly has the specification of Φ0.9×10×2, Φ0.9×15.1×3, Φ1×9.7×2, Φ1×10.2×2, Φ1×11.8×2, Φ1×12×2, Φ1×12.2×2, Φ1×15.3×3, Φ1×16×2, Φ1.1×8.2×2, Φ1.2×15×2 and so on.*( wire diameter/ring diameter×ring diameter/wire diameter×cyclomatic number)
