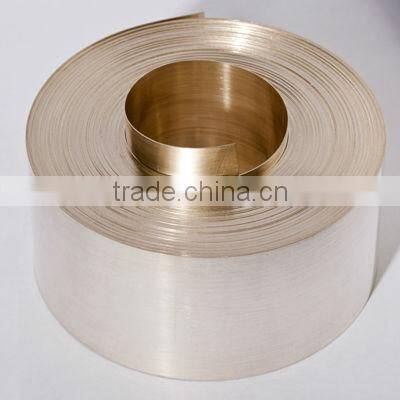

56% Silver Brazing Strip
- Hangzhou/Ningbo/Shanghai
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HUAGUANG | |
| Model Number | BAg56CuZnSn |
Product Description
Specifications
Excellent replacement to cadmium containing alloys. Good corrosion properties. Color match to stainless.Silver brazing alloy, cadmium free
DIN EN 1044: AG102
DIN 8513: L-Ag55Sn
EN ISO 3677: B-Ag56CuZnSn-620/655
AWS A 5.8: BAg-7
Composition, typical analysis(%w/w)
| Ag | Cu | Zn | Sn |
| 55.0-57.0 | 21.0-23.0 | 15.0-19.0 | 4.5-5.5 |
Mechanical and physical properties
working temperature: 660°C
Melting range: 620-655°C
Characteristics / Applications:
Cadmium-free low melting brazing alloy for gap and joint brazing of alloyed and unalloyed steel, nickel and nickel alloys, malleable cast iron, copper and copper alloys and carbides. Brazing stainless steel produces the best possible colour match. Suitable for brazed joints which will be used in seawater according to marine code VG 81245, section 3. The absence of cadmium makes it especially suitable for joints destined to come in contact with food. For brazing joints with a working temperature of max. 200°C.
