Glycol Pumps And Rotary Lobe Pumps
- Ningbo Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Bonve | |
| Model Number | BV6 | Theory | Other, Positive displacement pump | |
| Structure | Single-stage Pump | Usage | Other, Glycol, etc | |
| Power | Electric | Standard or Nonstandard | Nonstandard | |
| Fuel | Other, Electrical power | Pressure | Low Pressure | |
| Application | Other, Liquid products |
Product Description

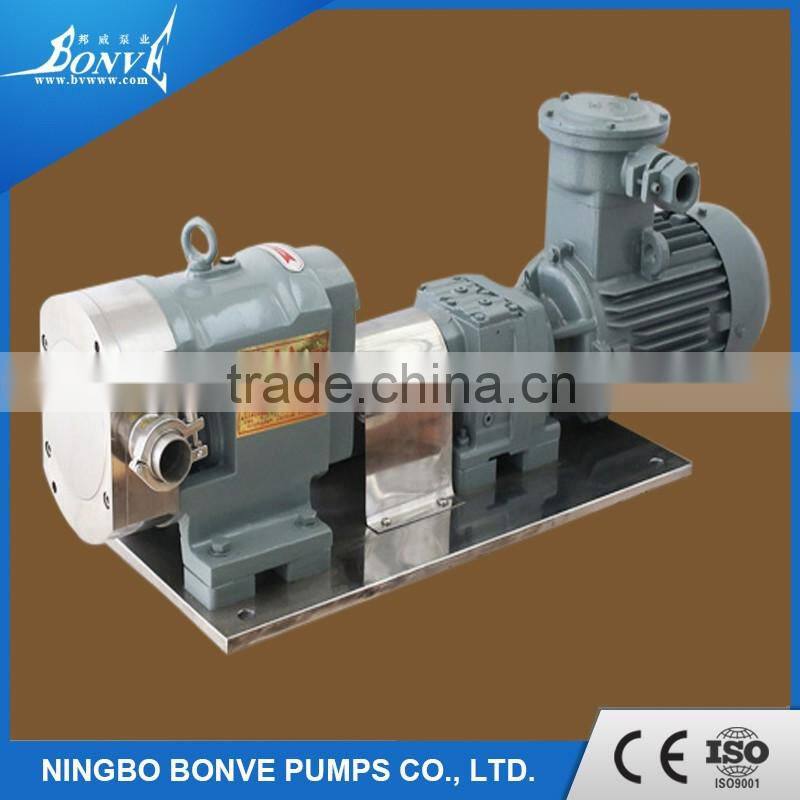

Glycol Pumps And Rotary Lobe Pumps
Technical parameters
| Material: | SS304/SS316/SS316L |
| Max. Flow: | 300m3/h |
| ure: | 12bar/ 174PSI |
| Max. working temperature: | 150 C / 302 F |
| Suggested working speed: | 20-600rpm |
| Rotor Type: | single leave, 2-leaves, 3-leaves |
| Mechanical seal: | Carbide alloy (Standard), fluororubber O-ring |
| Shaft seal type: | Single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 110V, 220V, 380V, 575V etc. |
| Driving: | Fixed speed geared motor, TEFC geared motor with inverter controlled |
| Connections: | Clamp, Thread, Flange |
| Connection standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electic |
| Packaging Details: | Plywood case, fumigated wooden case |
| Delivery details: | Usually within 20 days after receiving T/T down payment |
Breakdown drawing
Main features
Chamber: CNC processing, surface
finish ≤ 0.08um, fit for CIP/SIP
Rotors: processed
by CNC, high-precision,
long life
Mechanical seal: balanced structure design,
automatic adjustment, high reliability
Shaft: four-axis CNC processing, made
special steel, high bending strength
Helical gear: low noise,
high torque
Gear box: four-axis
processing, high precision
and concentricity
Schematic diagram
Applications
Applications: food, cosmetics,
pharmaceuticals, paintings, paper making, etc.
Field Operating
Pumps are packed by plywood case which is free of fumigation in general.
Shipping: by air, by sea or by train
We Supply You With Custom-Made Pump, Any Inquiry Will Be Highly Welcome! Our company strength: With nearly ten years' experience in manufacturing and exporting, we poses very professional know-how. We not only provide the the competitive prices with realibale quality, but also have the ability to help the customers to solve their problems happened during the design stage to the finish products. Our pumps' strength: high precision, consistent performance, minimal risk of contamination, low maintenance and long life. Our pump's warranty: upto two years while others is one year. Seal part is one year while others is have an year. |
How to order pumps from Bonve?
1. Please tell us transferred medium's name, denisty, viscosity and temperature. Flow rate and delivery head required? Power supply you using? And you other requirements?
2. We will make quotation for you. After your confirmation, send you PI.
3. We will arrange the production after your down payment.
4. After finishing production, we send you pump's photo for your reference and you make balance peyment.
5. Arrange shipment.
