Trade Assurance Glucose Pump And Transfer Pump

Introduction

Trade Assurance Glucose Pump And Transfer Pump are used in the pharmaceutical industry for the following applications: creams and ointments, extractum, medicine latex, pill paste, syrups, glucose, drugs, tablet coatings, injections, antibiotic, eyedrops etc. We (Bonve)produce sanitary pumps strictly according to GMP, 3A and EHEDG standard.

Principle

Bare-shaft pump structure

Breakdown drawing

Rotor work simulated drawing

Features

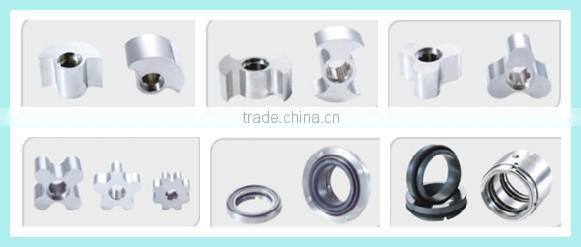

Rotor introduce and Mechanical sealing

• Single impeller:used to transfer medium with a little large grains because this impeller is not easy to damage grains. The shortage is high impulse, low pressure, small capacity, so seldom using.
• Double impeller: used to transfer medium with middle or small grains, with low damage rate and low impulse, the capacity is smaller than tri-impeller.
• Tri-impeller: this is commonly type, the capacity and performance is better than other rotors. The shortage is high requirement to medium because its easy to damage grain medium.
• Multi-impeller: when impeller quantity beyond three, the capacity will decrease when impeller has high stability while using, but easy to damage grain medium.
• Sealing introduce
• Water-flush mecahical sealing
• Oil-lubricating mecahical sealing
• Materials: tungsten carbide, silicon carbine, graphite
• Packing sealing
• Materials self-lubricating PTFE fiber

• Gap is kept between the rotors and between the rotor and the pump body, no friction,long life.
• Simple assembling and disassembling, easy to maintenance and clean, strong resistance to wearing.
• High efficiency and energy-saving, low failure rate, reliable sealing and low noise.
• Special materials are used to pump materials with soild granules, like sludge and sewage.
• Capable to pump the viscous materials below 2 million cp and pulp with the soild volume of 60%.
• Equipped with requency converter, flux can be adjusted at will and can be used to as general measurement pump.
• Flange, screw, or clamp connection can be used, as required by the customer.
• Capable of pumping mixtures of gas, fluid, and soild materials.
• Heating & cooling pumps is of built-in structure, with well heat conductivity.
• Movable pumps can be used to pump canned medium, with intake vacuum of 0.08 Mpa.
• Hygigenic safety valves can be set at the pumps head if customer required.



Technical parameters 1

Technical parameters 2

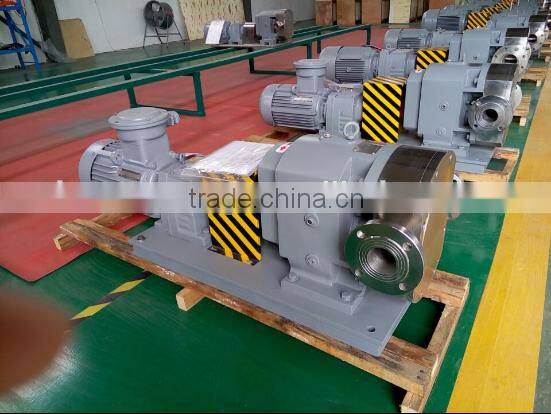

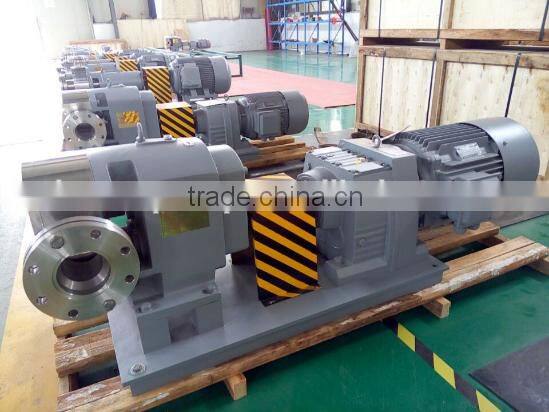

Pumps are ready to be dispatched

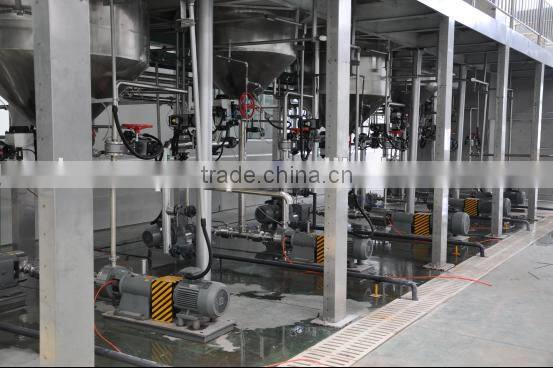

Pumps are used in site application

Pumps are packed by plywood case which is free of fumigation in general.

Shipping: by air, by sea or by train

We Supply You With Custom-Made Pump, Any Inquiry Will Be Highly Welcome!

Our company strength:  With nearly ten years' experience in manufacturing and exporting, we poses very professional know-how. We not only provide the the competitive prices with realibale quality, but also have the ability to help the customers to solve their problems happened during the design stage to the finish products.

Our pumps' strength: high precision, consistent performance, minimal risk of contamination, low maintenance and long life.

Our pump's warranty: upto two years while others is one year. Seal part is one year while others is have an year.

Ningbo Bonve Pumps(Bonve) is the leadership of manufacturing rotary lobe pump, homogeneous pump and grinding pump in China. For years Bonve and its engineers have made sustained endeavors to meet the varied demands of customers in different fields for fluid equipment and have developed varies kinds of advanced pumps. Rotary lobe pump, which is produced by Bonve, has reached world standards of its kind.

Bonve introduced the most advanced professional processing equipment. We have the first one set of full automatically sanitary pump testing system, advance CNC machining center, precise inspection equipment like CMM, spectrum etc. Bonve produces sanitary pumps strictly according to EHEDG, 3A and GMP standard.

Bonve pumps are widely used in petrochemical, refined industry, daily chemical, chemical fiber, pharmacy, food, pesticide, coating, paper-making and environment industry for fluid product.

1. Are you a trade company or a manufacturer?

A: We are a professional manufacturer of rotary lobe pump, homogeneous emulsion and grinding pump.

2. What is your MOQ?

A: one set is accepted, we look forward to building a long-term relationship with you.

3. What is your delivery time?

A: Usually 7-15 days for production (according to your quantity and requirements).

4. What is your trade terms?

A: FOB, CIF, CFR, EXW etc.

5. What is your payment terms?

A: 30% before production, 70% before shipment. 100% T/T is the best way for us, but we also accept L/C.

6. How to order pumps from Bonve?

6.1. Please tell us transferred medium's name, denisty, viscosity and temperature. Flow rate and delivery head required? Power supply you using? And you other requirements?

6.2. We will make quotation for you. After your confirmation, send you PI.

6.3. We will arrange the production after your down payment.

6.4. After finishing production, we send you pump's photo for your reference and you make balance peyment.

6.5. Arrange shipment.

CONTACT US

If you need more details and price of our pumps, or you do not find the suitable model, or you have some special requirements, anyway, do not hesitate to email me, we will reply you promptly!

(Or chat online, Skype ID: pump-girl and whats app: 0086-18067135762)
