Automatic Cardboard Laminaing Machine
- China
- T/T
You May Like
-
Europe High speed fully automatic cardboard laminator machine
-
FMQ Series Automatic Corrugated Box Laminationg Machine
-
Semi Automatic Corrugated Cardboard Laminator Machine
-
CE semi automatic 3 ply corrugated box flute lamination machine
-
Hot deals High speed fully automatic flute laminating machine for carton box
-
FMB Series Laminated Corrugated Cardboard Machine
Product Details
| Condition | New | Application | Food, Beverage, Commodity, Medical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Machinery & Hardware, Apparel, Textiles | |
| Packaging Type | Cartons, Cans, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case | Packaging Material | Plastic, Paper, Metal, Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380v | Place of Origin | Shandong, China | |
| Brand Name | G&Z | Model Number | BKJ | |
| Weight | 7t | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1, fully automatic2,high quality
3,famous components
4,CE and ISO
5. labor save,oversea service

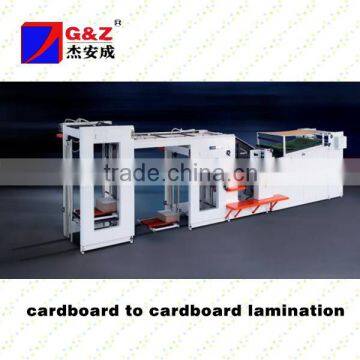

Fully Automatic Cardboard Laminaing Machine
Specification:
Model | 1307 | 1310 |
Max. Sheet Size (WxL) | 1300mmx720mm | 1300mmx1000mm |
Min. Sheet Size (WxL) | 500mmx450mm | 500mmx450mm |
Thickness of Upper Paper | 100~800g/2 | 100~800g/2 |
Thickness of Bottom Paper | 180~800/2 | 180~800/2 |
Max. Speed | 150pcs/min(Varies according to the quality of Paper) | 120pcs/min(Varies according to the quality of Paper) |
Lamination Precision | ±0.5mm/mm(Standard and good quality paper ) | ±0.5m/m(Standard and good quality paper) |
Total Weight | 7000kg | 7000kg |
Total Length | 10.5M | 10.5M |
Operation Space | 3Mx13.5M | 3Mx13.5M |
Power | 380V 3~(15hp) | 380V 3~(15hp) |
Feature:
a) Function of the machine: The machine can laminate card to card together to make tags, boxes etc.
b) Structure:
Upper Feeder: 110-800 gsm paper
Lower Feeder: 180-800 gsm paper
Compressor: Compress the laminated paper and conveying them to the piling part.
Paper piling part: To pile the laminated paper
Gluing Part: To glue on the bottom paper
Registration Part: To ensure precise paper lamination.
Configuration:
Name | Brand |
PLC | SIMENS |
The man-machine interface touch screen | TAIWAN WEINVEW |
Frequency transformer | JAPAN MITSUBISHI E740 |
Photoelectric switch | SWITZERLAND BANMER |
Contactor | FRENCH SCHNEIDER |
Relays | JANPAN OMRON |
Button | SHANHAI TIANYI |
Glue liquid control | JAPAN OMRAN |
Tooth belt | TAIWAN SANWU |
The key bearing | JAPAN NSK |
Other Bearings | RENBEN BEARING |
Main Power Motor | GERMANY SIMENS |
Air Pump | Taiwan Brand EUROVAC Rotary Vane Pump |
Details:
Working Video Available: Feel free to contact us
Our Warehouse:
We also sell:
Package and Shipping:
Our Company:
G&Z group is one of leading manufacturers specialized in laminating machines in China, our laminating machines are suitable for the color printed top sheet and corrugated paperboard, and have been installed all of the world, besides of the top machines' quality, we also have earned good reputation on our aftersales services.
