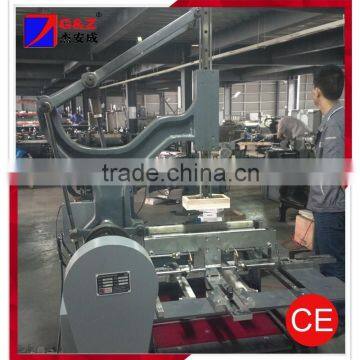

Semi Automatic Rigid Shoe Box Machine

           Semi Automatic Rigid Shoe Box Machine

Specification:

A.TJ-40 Corner Pasting Machine

1. Introduction

TJ-40 Corner Pasting Machine is designed for the positioning and forming of rigid set up boxes and paper boxes by the application of high temperature tape belts. Thae machine is controlled by Pedal device. The core electric appliances are from Taiwan.  After pasting, the products are upright in corners, firm, good-looking. They are indispensable superior machine for box making .The standard length of the tape is 1-3mm, and the machine can be remolded to 4 mm

TJ-40A use 2cm width of  the tape ,the lenth of the tape can be adjusted from 1-3cm

TJ-40B use 2cm width of  the tape, the lenth of the tape can be adjusted from 1-6cm

2.      Technical parameters

3. Packaging

Wooden case

Used Tape:

Standard tape. 2cm of width, 300 mm length per roll , 24 rolls per carton. It can be used for TJ-40A and TJ-40B machine.

TJ-40A the width of  the tape is 2cm,the lenth of the tape can be adjusted from 1-3mm

TJ-40B the width of  the tape is 2cm,the lenth of the tape can be adjusted from 1-6mm

B.FSJ-650A automatic gluing machine

1. Introduction

FSJ-650A Automatic gluing machine (feeder) has the function of automatic feed paper and gluing, automatic temperature control and 24-hours timer. The suction devices for the assembly lines prevent powder paper curling and bubbling. Fedia paper absorption and feed are applied, characteristic of steady and quick paper conveyance. Hot melt adhesives (animal adhesives) are used for health and environmental protection on the basis of recycling to save costs at the speeds adjustable. Remodel for White glue.

2. Technical parameters

C. SMB-500 box wrapping machine

1. Introduction

SMB-500 Box Wrapping Machine are mainly used for paper mounting and pasting of rigid set up boxes , paper boxes, gift boxes, jewellery boxes, etc. They are equipped with imported vacuum pumps, automatic devices. Brushes are used to paste the edge paper into the inner boxes in a smooth and quick process, solving the problem of difficulty and slowness in manual mounting and pasting. They are innovative products for box making.

2. Technical parameters

D.SZR-520 box folding-in machine

1. Introduction

Introductions:

SZR-520 Box Folding-in Machine is folding and forming machines for rigid set up box, paper boxes. Pressure nozzles are used to bend the extruding parts of the surface paper into the boxes. These machines are equipped with devices such as pedal switches and magic eye switches, capable of adjusting the length and height of pressure nozzles according to the size of the boxes, and these machines function as quick speeds, high product quality and simple and quick operation, etc.

2. Technical parameters

Working Video Available: Feel free to contact us

Sample boxes:

Our Factory:

We also sell:

Package and Shipping:
