Qam DVB-C to Qam DVB-C Modulator TransModulator (4in1 QAM/DVB-C RF In,4in1 QAM/DVB-C RF Out)
- chengdu
- Credit Card
You May Like
-
Encoder Modulator/HDMI /CVBS/SD/HD Dvbt Modulator DVB-T/C
-
HDMI to DVB-T Encoder Modulator RF
-
PCI TS Play & Recorder ts Card(ASI IN and ASI Out,XP/2000)
-
SC-8101 Epg Server
-
4in1 ASI MUX-Scrambler QAM Modulator(8*ASI IN,4*DVB-C RF Out)
-
Iptv Dvb-s Spts Udp(DisEqc/22KHz,8*DVB-S2 Tranponders In,SPTS UDP/multicast/Gigabit Out)
Product Details
| Place of Origin | Sichuan, China | Brand Name | sochuang | |
| Model Number | SC4114 |
Product Description
qam DVB-C to qam DVB-C Modulator TransModulator (4in1 QAM/DVB-C RF in,4in1 QAM/DVB-C RF out)
in:4 channels dvb-c/qam RF
range:87-870mhz out:4 channels dvb-c/qam in one RF port

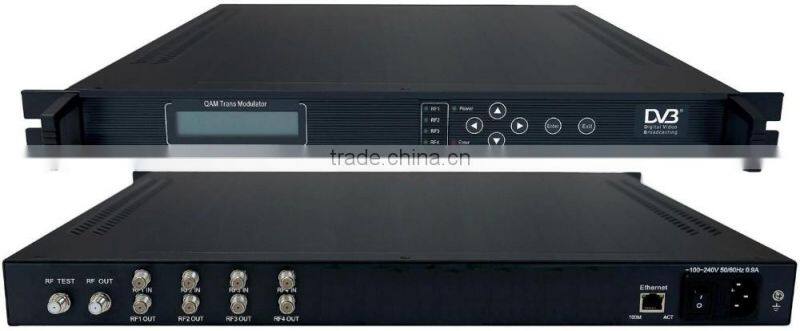

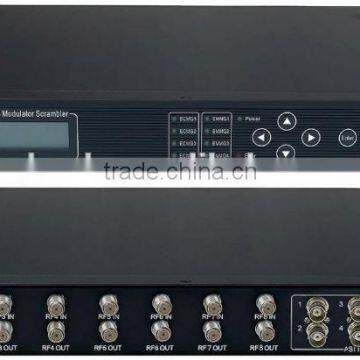

4IN1 QAM to QAM Transmodulator
Overview
4IN1 QAM to QAM Trans-modulator supports 4×RF QAM input. After 4 channels demodulation and modulation process, it gives 4×RF QAM (4 adjacent frequencies, 1×F port). It can finish the function of trans-modulation and frequency shift for QAM/DVB-C signal.
Technical Specification
Input | RF Port | QAM/DVB-C, 4×F-head |
Frequency Range | 47~870 Mhz | |
Symbol Rate | 1-7Mbaud/s | |
Output | Interface | 4×RF (4 adjacent frequencies, 1×F port), 75Ω |
Modulation Mode | DVB-C/QAM | |
Frequency Range | 47~870Mhz | |
Output Level | 85~105dB | |
Level Attenuation Range | 0~20dB (0.5dB step) | |
Symbol Rate | 5-9Mbaud/s | |
Constellation | 16, 32, 64, 128, 256 QAM | |
MER | ≥40dB | |
BER | 0 | |
Control | IP remote | NMS (Ethernet Port, RJ-45), 10/100m base-TX, |
Front panel | Keyboard + LCD | |
General Features | Size | 482mm×280 mm×44mm |
Temperature | 0~45°C (Operation);-20~80°C (Storage) | |
Power | 100-240VAC, 50Hz, 25W |
Order Guide
4114 | 4×RF/QAM/DVB-C in, 4×RF/QAM/DVB-C out |
Netowork Manangement Software

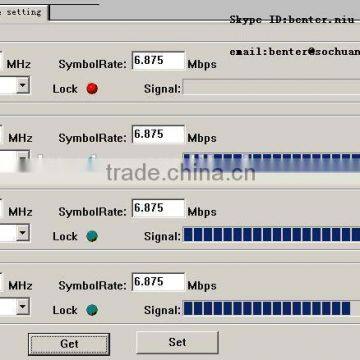

Input frequency setting

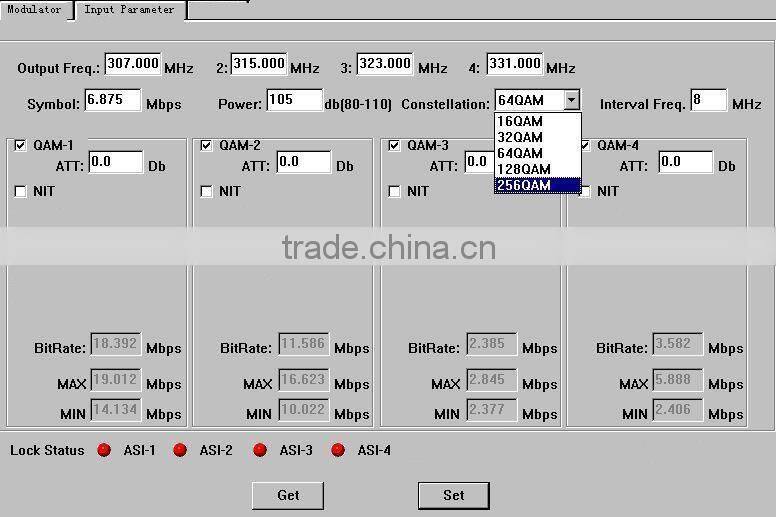

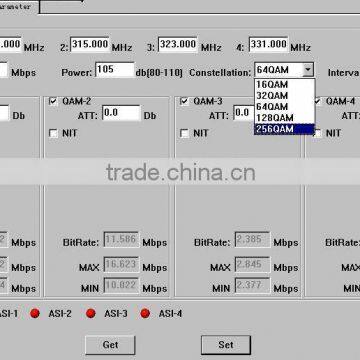

Output modulator setting

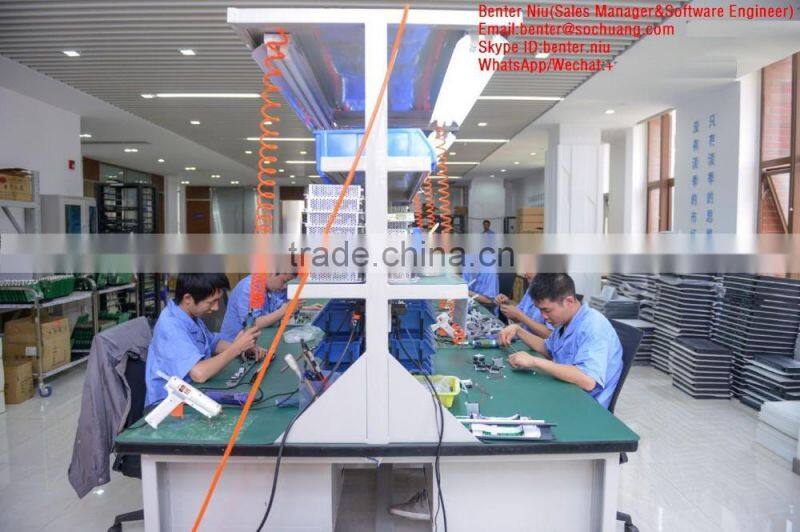

Assembling :
Packing:

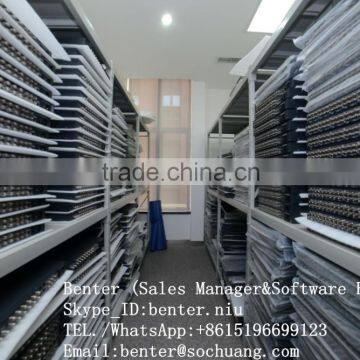

Stocking:
Company information:
Certificate&Exhibition:
