Product Details
| Place of Origin | Sichuan, China | Brand Name | SC | |
| Model Number | SC1303 |
Product Description
8 AV cvbs video audio in,ASI+IP/MPTS/SPTS out LAN iptv enccoder
SD 8IN1 Low-bitrate MPEG-2/MPEG-4 Encoder
Overview

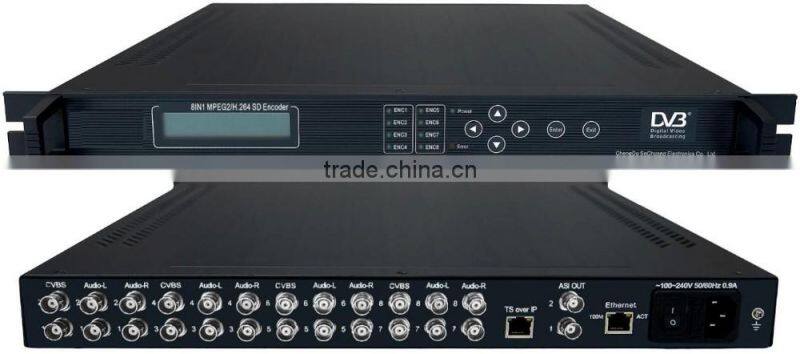

SD 8IN1 MPEG-2/H.264 encoder has 8 analog composite video(CVBS) and 8 pairs of unbalanced audio (mono or stereo) input, supporting MPEG-2/H.264 video and MPEG-1/AAC audio encoding, to generate DVB transport stream (TS/ASI) and MPTS/SPTS(TS over IP) output. It uses Magnum chipset, supporting low bitrate. This encoder suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling.
Technical Specification
Input | Video | 8×CVBS, BNC interface |
Audio | 8 pairs of unbalanced audio, BNC interface | |
Video | Encoding(4:2:0) | MPEG-2/H.264(MPEG-4 AVC) Full D1 |
Pixel | PAL 720×576, NTSC 720×480 | |
Frame Rate | 25, 29, 97, 30fps | |
Aspect Ration | 4X3,16X9,1X1 | |
Bitrate | 0.5~7.5Mbps per channel | |
Rescale | 352×240, 320×240, 320×180, 192×192, 160×120 | |
Audio | Sampling | 32KHz, 44.1KHz, 48KHz |
Bitrate | 32, 48, 56, 64, 128, 192, 256, 384, 640 Kbps | |
Volume | 0 ~ 256 | |
Property | MPEG-1 Layer 2,HE-AAC | |
Output | 2×ASI | DVB standard, BNC interface |
IP(TS over UDP) | 1*MPTS/8*SPTS(Unicast/Multicast), network RJ-45 10/100 M base-Tx | |
Control | NMS (Ethernet Port),front panel(Keypad + LCD) | |
General Features | Size | 482mm×410mm×44mm |
Temperature | 0~45°C(Operation); -20~80°C(Storage) | |
Power | 100-240VAC (±10%), 50/60Hz, 25W | |
Order Guide
1303 | 8×AV in, ASI+IP(MPTS/SPTS,Multicast/Unicast) out |
Network Management:
output setting :
video audio setting:

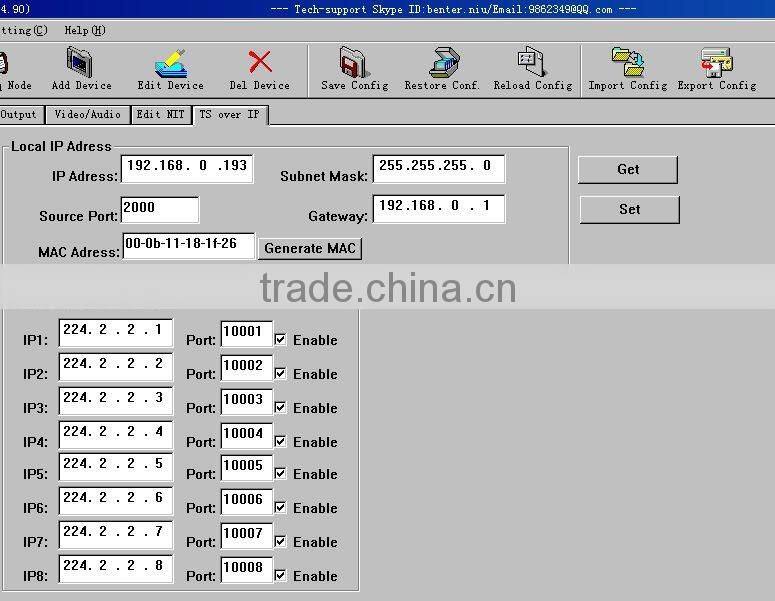

SPTS ip out:

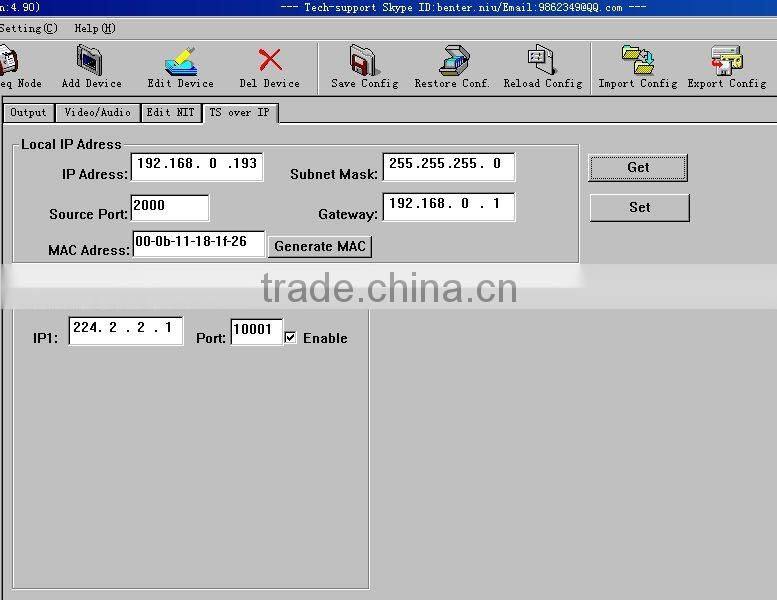

MPTS ip out:

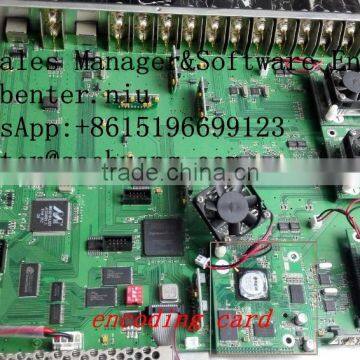

Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
