IP Scrambler QAM Modulator (TS IP/multicast Gigabit In,4*DVB-C RF Out)
- ddc
- Credit Card
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | SoChuang | |
| Model Number | SC4154 |
Product Description
IP scrambler QAM modulator (TS IP/multicast gigabit in,4*DVB-C RF out)
4IN1 Multicast-IP/UDP QAM Modulator with MUX-Scrambler
Overview

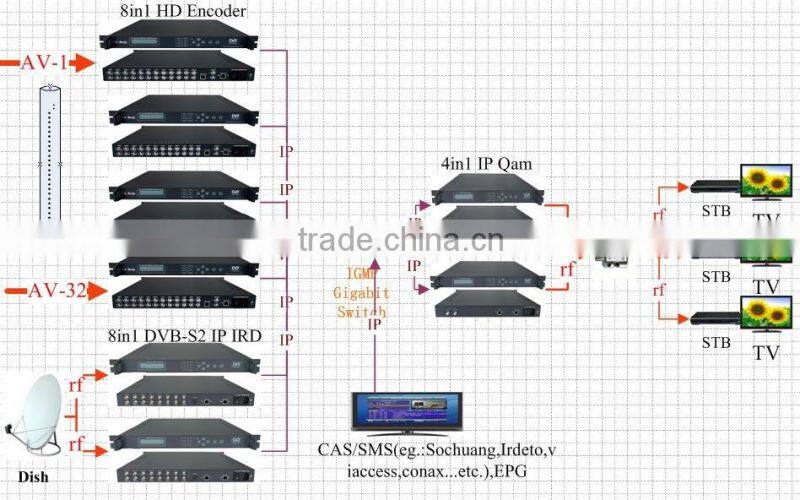

4IN1 IP QAM Modulator with MUX-Scrambler supports Multicast-IP/UDP input and 4×RF output. The input IP signal can be sent to signal processor and be converted to TS (transport stream). It integrates multiplexer, scrambler and QAM/DVB-C modulator. It supports 4 CAS/SMS SimulCrypt.It suits 1U rack and can be configured by front panel LCD and NMS (network management software).
Technical Specifications
Input | IP Port | TS over UDP, Gigabit/1000mbps |
Output | Interface | 4in1 RF, F-head |
Impedance | 75Ω | |
Constellation | 16, 32, 64, 128, 256 QAM | |
Symbol Rate | 5~9 Msps, 1ksps step | |
Error-Correcting | RS code188/204 | |
MER | ≥40dB | |
BER | 0 | |
Output Level | 85~105dBV | |
Level Test Port | 65~85dBV | |
Level Attenuation | -20dBm~0dBm (per carrier), 0.5dB step | |
Frequency | 47MHz~870MHz | |
| Multiplexer | from the input 32/64×Multicast-IP |
| Scrambler | support 4×CAS/SMS DVB simulcrypt (ETSI TS 103 197 V1.4.1) |
Control | IP remote | NMS (Ethernet Port, RJ-45), 10/100m base-TX, |
Front panel | Keyboard + LCD | |
General Features | Size | 482mm×280mm×44mm |
Temperature | 0~45°C (Operation); -20~80°C (Storage) | |
Power | 100-240VAC, 50Hz, 25W |
Order Guide
4154 | TS Multicast IP in, 4×RF/QAM/DVB-C out |
4174 | 8×ASI in, 4×RF/QAM/DVB-C out |
4125 | 6*DVB-S/S2+6*ASI in, 4×RF/QAM/DVB-C out |
4135 | 8*DVB-S/S2+3*ASI+1*IP in, 4*RF/QAM/DVB-C+4*MPTS IP out |
Network management software

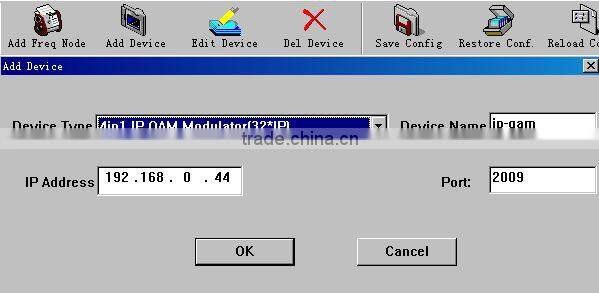

Device type on network management software:

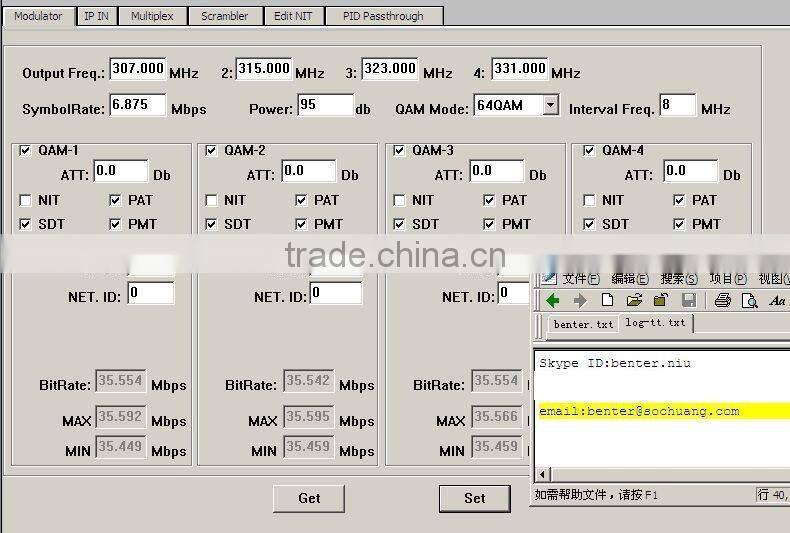

modulator output setting:

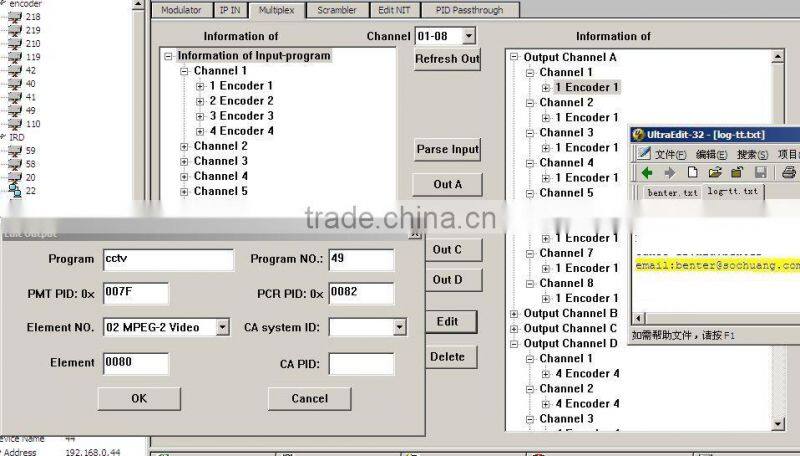

multiplexer:

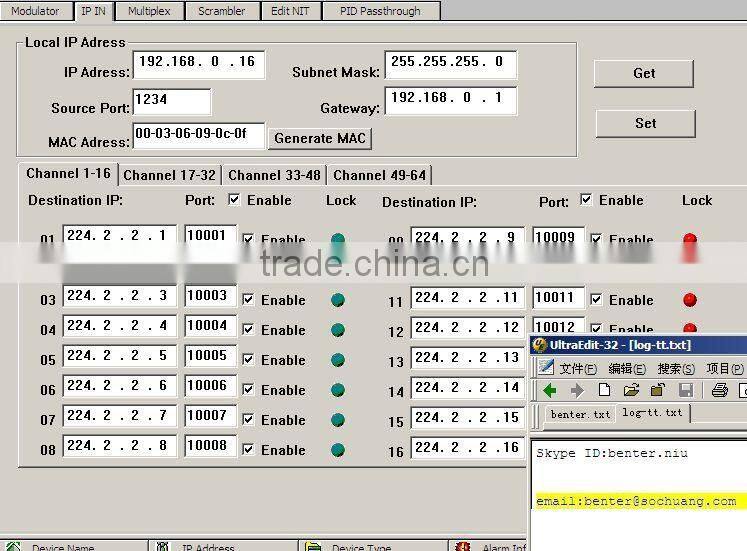

input ip address setting:
simulcrypt scrambler setting:
nit edit :
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
