SC-1115 hd H.264 Iptv Encode
- Chengdu
- Credit Card
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | SoChuang | |
| Model Number | SC-1115 |
Product Description

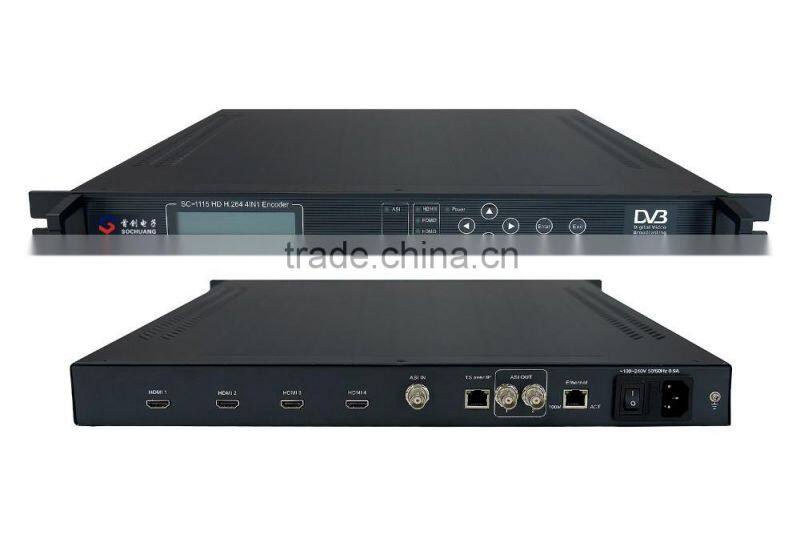

H.264/MPEG-4 AVC 4in1 HDCP Encoder
Overview
H.264/MPEG-4 AVC 4in1 HDCP Encoder is a user-friendly, powerful encoder with multi-service capability, flexibly delivering multiple full and low resolution services to a range of devices. It supports multiple HD formats including 1080i*50/60, 720p*50/60. Besides it supports TS(UDP) over IP output, with 4 HDMI inputs. Definitely, it conforms to the H.264 standard.
Features
. Low bit rate
. H.264 compression
. ASI x2 and 100M IP output
. 4 HDMI inputs
. Support multiple HD formats including 1080i*50/60, 720p*50/60
. LCD+keypad/NMS management
. H.264/AVC High Profile Level 4.0 video encoding support, advanced video pretreatment algorithm
Technical Specification
Input | 4×HDMI | High Definition Multimedia Interface |
ASI | DVB standard, BNC interface | |
Video Coding | 4:2:0 encoding H.264 HP@L4 MP@L3 | |
H.264 Adaptive Field Frame (AFF) | ||
H.264 Field-Based (FB) | ||
full HD: 1920×1080×60/50i/p, 1280×720×60p/50p | ||
Standard | ISO/IEC14496-10 (H.264/MPEG-4 AVC) | |
Audio | Bit rate | 128, 160, 192, 224, 256, 320, 384Kbps |
Property | MPEG-1 Layer2 | |
Sample Bit rate | 32KHz, 44.1KHz, 48KHz | |
Output | 2×ASI | DVB standard, BNC interface |

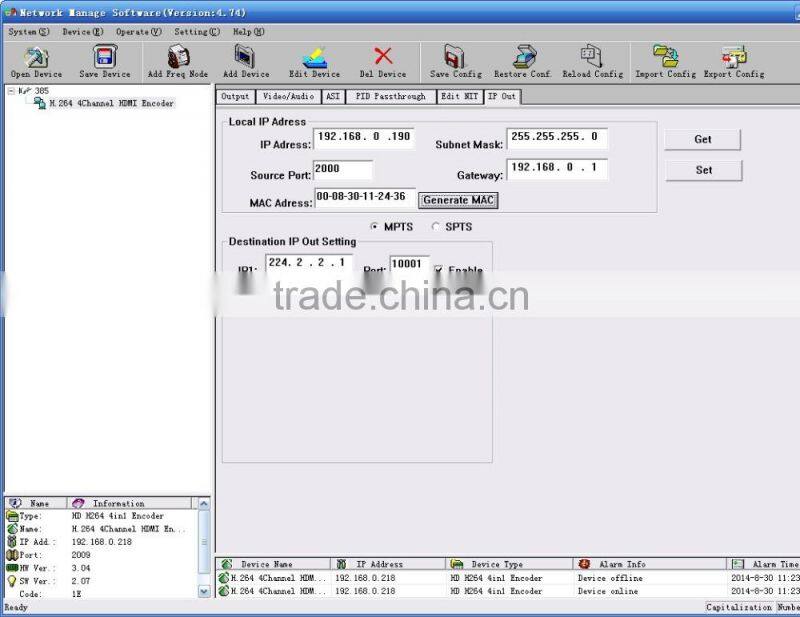

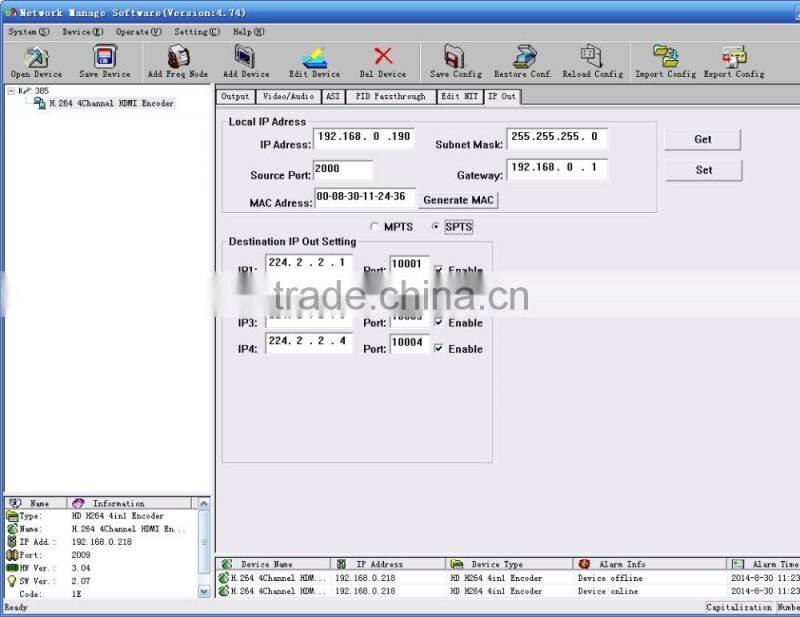

IP | IP/UDP (TS over IP), SPTS/MPTS/Unicast/Multicast | |
Output Bit rate | 1 to 20Mbps (4:2:0) per channel | |

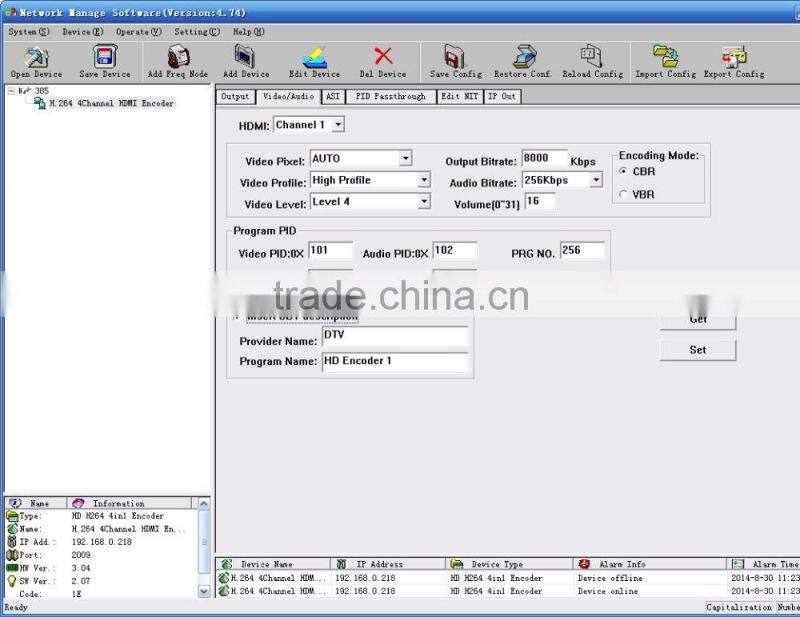

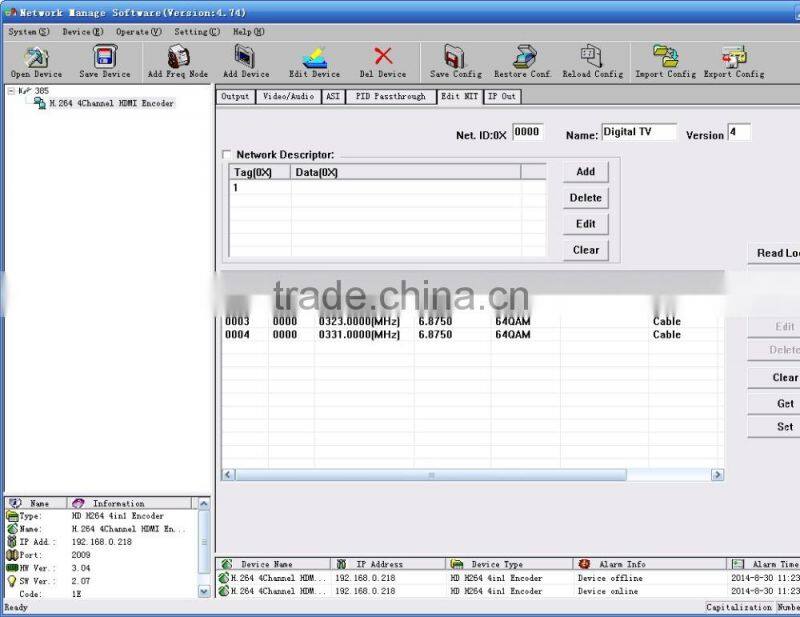

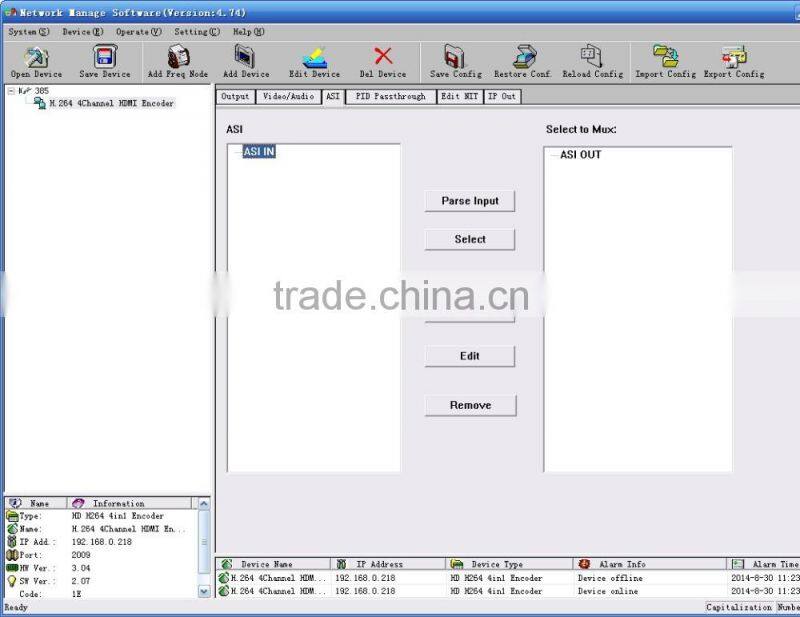

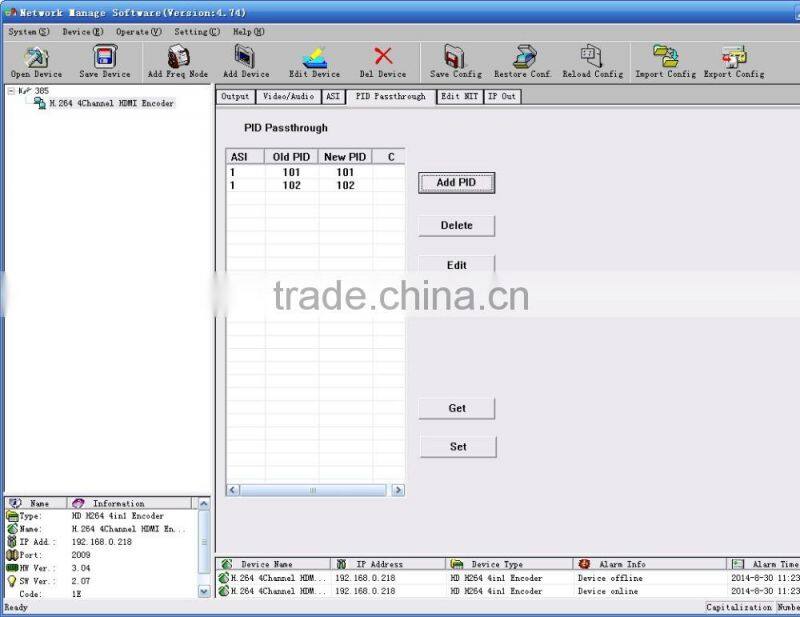

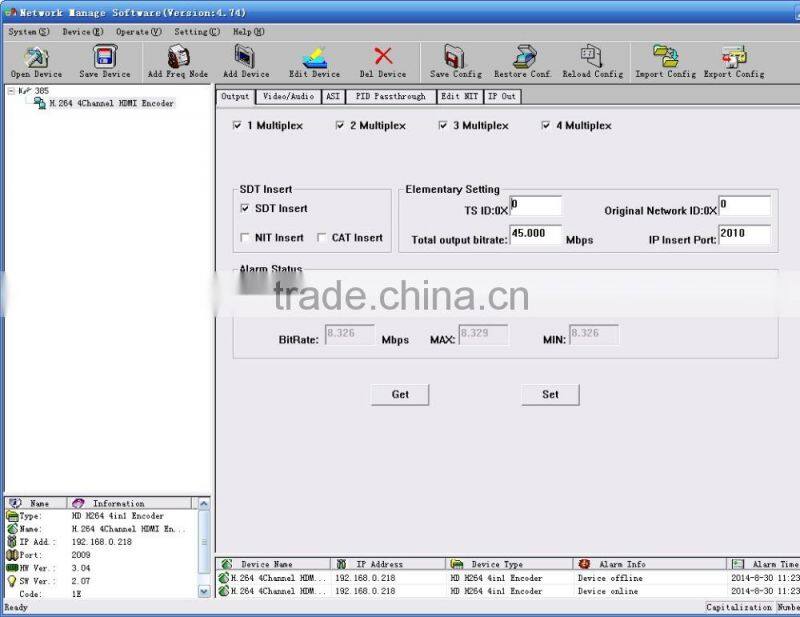

Control | NMS (Ethernet port, RJ-45), Keyboard + LCD | |
General Features | Size | 482mm×410mm×44mm |
Temperature Range | 0~45°C(Operation); -20~80°C(Storage) | |
Power | 100-240VAC, 50Hz, 25W | |
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
