SC-5419 DVB-T IRD/DVB-T2 IRD/CAM IRD/DVB-T/T2 CI IRD
- Chengdu
- Credit Card
You May Like
-
SC-5419 4in1dvb-t2 ci Ird
-
Mpeg-4 H264 HD Sdi to IP Encoder (HDMI+SDI+YPbPr+CVBS/AUDIO In,ASI+IP Out)
-
ts Udp Mpeg-4 H264 HD IP Encoder (HDMI+SDI+YPbPr+CVBS/AUDIO In,ASI+IP Out)
-
Mpeg-4 H.264 HD IP Encoder (HDMI+SDI+YPbPr+CVBS/AUDIO In,ASI+IP Out)
-
Sc-1105 Sc1105 Mpeg-4 H264 HD IP Encoder (HDMI+SDI+YPbPr+CVBS/AUDIO In,ASI+IP Out)
-
MPEG-2 4IN1 SD SDI to ip Encoder (Embedded Audio,4SDI In,ASI+IP/UDP Out)
Product Details
| Place of Origin | Sichuan, China | Brand Name | SoChuang/OEM/ODM | |
| Model Number | SC-5419 | FTA(Free To Air) | Yes | |
| Type | Digital | High Definition | Yes |
Product Description
Overview

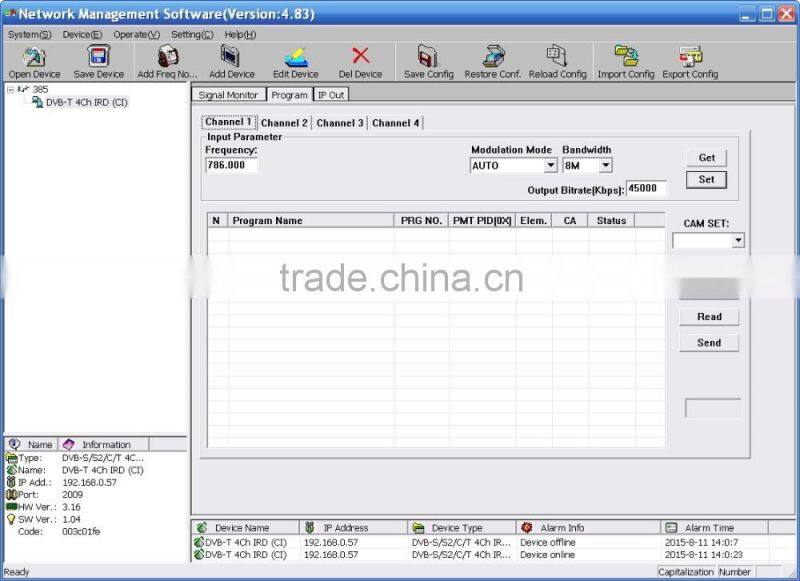

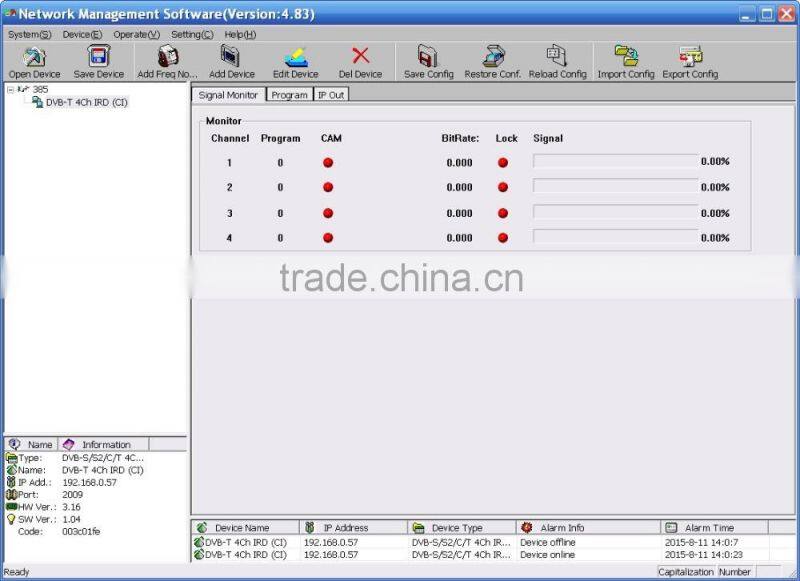

SC-5419 DVB-T/T2 4-channel IRD with CI/DVB-T IPTV IRD supports 4×DVB-T/T2 RF input. It has 4×CI interfaces and supports multi-type of CAM cards. It can output 4×ASI and IP (32×SPTS, TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.
Features
u Support DVB-T/DVB-T2 input
u Support 4×CI slots

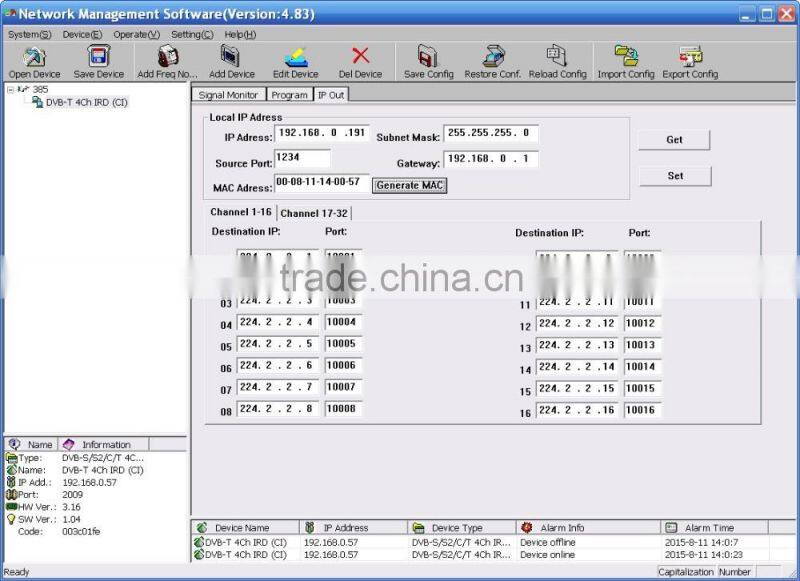

u Support ASI/IP (32×SPTS, TS over UDP) output
u Common interface with 4 slots (PCMCIA) supports multi-type of CAM cards
u 4 slots of PCMCIA module could descramble multi-program stream
u Frequency Range: 30~900Mhz
Technical Specification
Input | RF (DVB-T/T2) | 4xDVB-T/T2 (30-900MHz),F-head |
Output | 4×ASI | DVB standard, 4xBNC interface |
IP | 32×SPTS,TS over UDP,1000M RJ45 port | |
General Features | Size | 482mm×410mm×44mm |
Temperature Range | 0~45°C(Operation); -20~80°C(Storage) | |
Power | 100-240VAC, 50Hz, 25W |
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
