Model M Expanding Gate Valve
- Shanghai Port
- T/T Credit Card
You May Like
-
API 6A WKM Expanding Gate Valve
-
Cameron Gate Valve M Style Expanding Gate
-
API 6A High Pressure and Large Diameter Hydraulic Gate Valve
-
API 6A Wellhead Equipments , API 6A Hydraulic Gate Valve With High Quality
-
Cameron Hydraulic Gate Valve Type FC API 6A
-
Oiled Field API 6A Hydraulic Gate Valve, High Pressure
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | High Pressure | Power | Other, Manual/Hydraulic | |
| Material | Other, Forged/Casting/SS and other materials | Temperature of Media | Medium Temperature | |
| Media | Other, Oil, Gas, Mud | Port Size | 1-1/16" ~ 7 1/16" | |
| Place of Origin | Jiangsu, China | Model Number | M | |
| Brand Name | JEFA | Application | Other, Valve, Wellhead Equipment |
Product Description
Model M Expanding gate valve API 6A Standard
Model M Expanding gate valve The JFM expanding gate valve consists of one gate body and related gate segment. The contact surface between are designed to mill V structure. JFM Expanding gate valves are available in sizes 2-1/16” through 4-1/16”, working pressure of 2000 psi through 5000 psi.

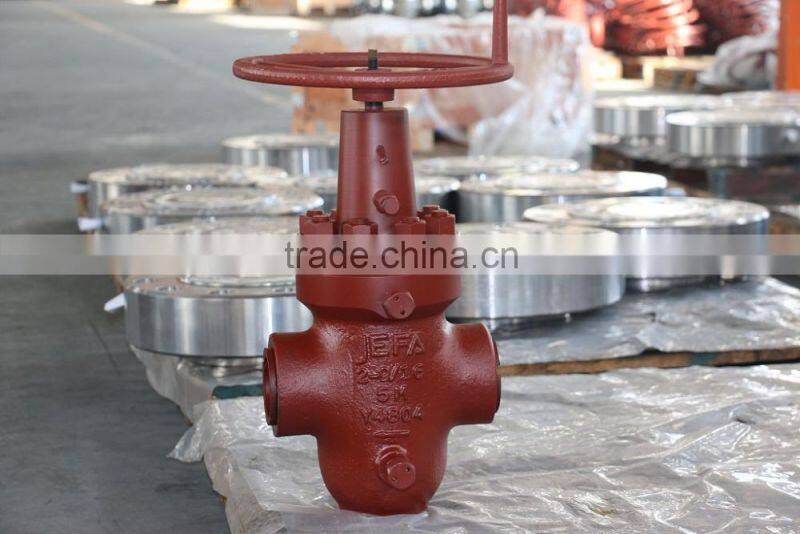

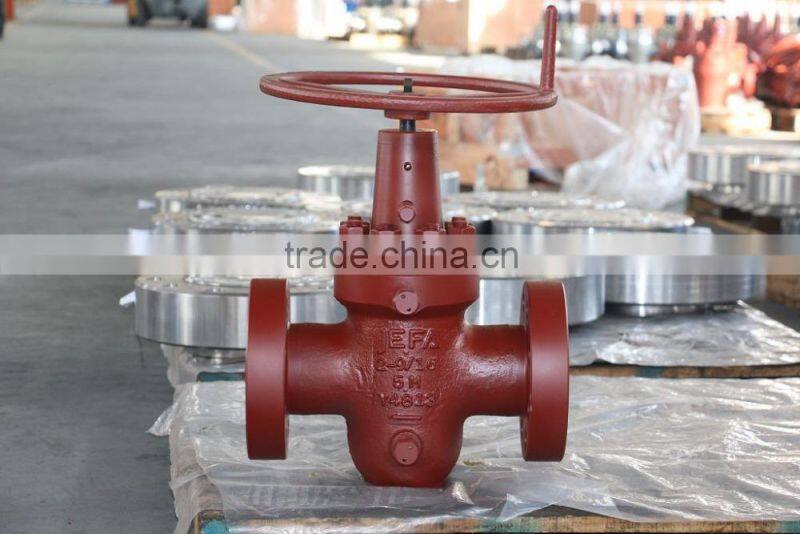

Model M Expanding gate valve
| Detailed Specification | |
| Body Size | 2-1/16" ~ 4 1/16" |
| Working Pressure | 2000~5000 psi |
| Temperature Class | LU |
| Material Class | AA-HH |
| Performance Level | PR1 |
| Product Specification Level | PSL1~3 |
Model M Expanding gate valve Features
1.Metal seal, between gate and seat, seat and body
2.JEV Expanding gate valves design can be enforced sealing whether there is pipeline pressure.
3.Seal between full bore gate and it can be eliminate turbulence and pressure drop, makes longest service life.
4.In progress of open and close gate valve,there is space between gate and seat,this reduce torque.
5.Secondary seal of seat can prevent impurity goes into sealing surface.
6.Stem packing can used again when active by pressure.

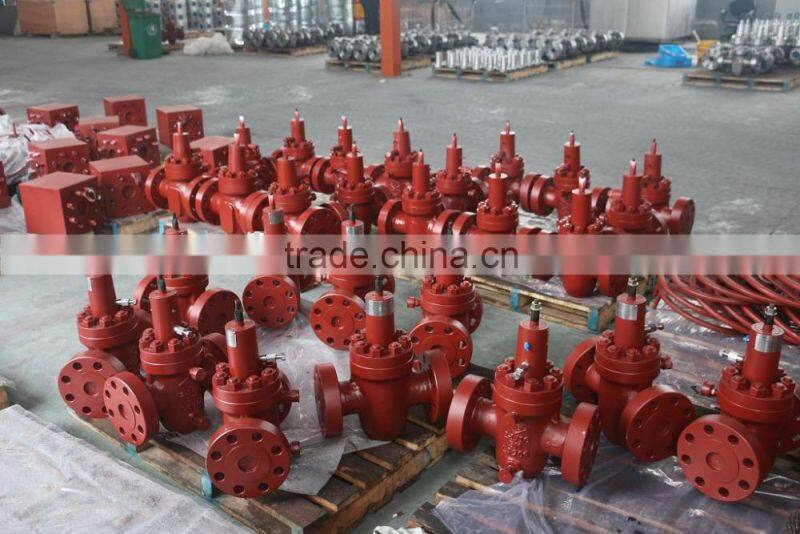

Ball screw operation gate valves RODUCT PICTURE
BV INSPECTION PRIOR SHIPMENT
JEFA API 6A CERTIFICATE
HOUSTON OTC EXHIBITION
JEFA FACTORY OVERVIEW
QUALITY CONTROL
PRODUCTS MANUFACTURED BY JEFA
JEFA Supply follow API6A standard products with competitve price with superior quality and service
FC Gate valve
Expandinggate valve
FLS gate valve
BSO gate valve
Hydraulic gate valve
Plug valve
Mud valve
Valve replacement parts
Casing head
tubing head
goat head
studded cross/tee
Spacer spools
Weco flange adaptor
Companion flanges
JEFA machinery is a full service,APIcertified, precision machining and fabrication business that specializes in the design and manufacture wellhead equipment for all of your petroleum and natural gas extraction applications.In addition to providing superior quality and competitive rates on API 6A&16C products and other wellhead supplies, we can also supply you with OEM projects. We are firmly dedicated to providing the highest quality products and services for today's oilfield industry. →Head office in Shanghai ,2 plants in Yancheng, Jiangsu
→2011 sales over 200 million
→Over 200 employees
→Design and research capability
We are constantly striving to improve designs,streamline manufacturing processes, and reduce costs so that we can better serve our customers. Welcome to contact us for more details.
Web:
Add :Room 513,Block A,No 581 Xiuchuan Road, Pudong, Shanghai, China 201200
Email: jamal@
Tell:+86 18061998734 Fax:+86 21 58901369
1 How long can i get products?
A 1 week for stock products
B 6 ~7 weeks if no stock
2 Which trading terms do you offer?
We can do Ex-work, Fob Shanghai ,CIF or Door to Door
3 What is your MOQ?
We welcome trial order ,1 pc is acceptable to verify quality
4 Where is your factory?
JEFA's forging factory located in Huai'an Jiangsu
JEFA'S machining and heat-treatment factory located in Jianhu.Jiangsu
JEFA's Assembly factory located in Jianhu.Jiangsu
It takes 4 hours drive from Shanghai to factory.
