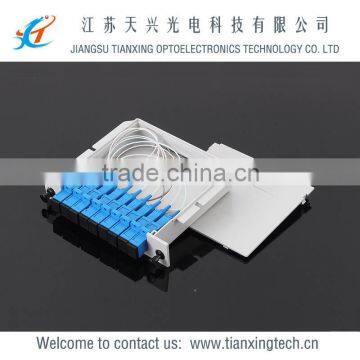

1x8 slot box fiber PLC splitter
US$ 5 - 8.5
/ Piece
500 Pieces(Min. Order)
- shanghai
- T/T
You May Like
-
Cheapest price 2.0mm 1.5M pigtail fanout SC PC 1x4 optical splitter
-
SC 32 port passive optical splitter for FTTH
-
Rock-bottom price Stainless Steel tube SC UPC 1x4 PLC splitter
-
splitter 1x8 0.9mm 1,5Mts SM SC APC Plc conectorizado
-
Splitter PLC conectorizado 1x4 0.9mm mini module SC APC 1,5mts
-
SC APC Mini splitter PLC 1x16 900um 1,5mts
Product Details
| Place of Origin | Jiangsu, China | Brand Name | tianxing | |
| Model Number | 1x8 insertion type |
Product Description
1x8 slot box fiber PLC splitter
1. Feature
1).Low Insertion loss
2).Low PDL
3).Compact Design
4).Good channel-to-channel uniformity
5).Wide Operating Wavelength: 1260-1650nm
6).Wide Operating Temperature: -40°C - 85°C
7).High Reliability and Stability
2. Application
1).FTTX Systems
2).PON Networks
3).CATV Links
4).Optical Signal Distribution
3. Specification
Product Description
technical specification:
| Fiber optic PLC splitter technical specifications | |||||||
| wavelength(nm) | 1260-1650 | ||||||
parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
insertion loss (dB) | ≤4.2 | ≤7.4 | ≤10.7 | ≤13.9 | ≤17.2 | ≤21.5 | ≤24 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Uniformity (dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| return loss (dB) | ≥50 | ||||||
| directivity (dB) | ≥55 | ||||||
| temperature range (°C) | -40~+75 | ||||||
| storage temperature (°C) | -40~+85 | ||||||
| NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB. | |||||||
Encapsulation Size for PLC Splitter Slot Type
| Item | Type of Connector | Length*Width*Height (mm) |
| 1x2 | SC/LC | 130*100*25 |
| 1x4 | SC/LC | 130*100*25 |
| 1x8 | SC/LC | 130*100*25 |
| 1x16 | SC/LC | 130*100*50 |
| 1x32 | SC | 130*100*102 |
| 1x32 | SC | 267*100*50 |
| 1x32 | LC | 130*100*50 |
| 1x64 | LC | 130*180*102 |
4. Product show
5. Factory bulding
Company Information
6. shipment
Packaging & Shipping
7. Contact us
Sales: Eve Yao
Skype: trade. eve
web:
Tel: 86 511 83565358
Fax: 86 511 83565357
We sincerely welcome all interested buyers to visit our factory and contact us directly for further information, we will reply you as soon as possible!
