8 way micro module fiber opic PLC splitter

FOB Price

Negotiable / Piece

500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	tianxing
Model Number	8 way fiber opic PLC splitter

8way Micro module fiber opic PLC splitter

1. Feature

1).Low Insertion loss

2).Low PDL

3).Compact Design

4).Good channel-to-channel uniformity

5).Wide Operating Wavelength: 1260-1650nm

6).Wide Operating Temperature: -40°C - 85°C

7).High Reliability and Stability

2. Application

1).FTTX Systems

2).PON Networks

3).CATV Links

4).Optical Signal Distribution

3. Specification

Product Description

Fiber optic PLC splitter technical specifications
wavelength(nm)	1260-1650
parameters	1x2	1x4	1x8	1x16	1x32	1x64	1x128
insertion loss (dB)	≤4.2	≤7.4	≤10.7	≤13.9	≤17.2	≤21.5	≤24
PDL (dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Uniformity (dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
return loss (dB)	≥50
directivity (dB)	≥55
temperature range (°C)	-40~+75
storage temperature (°C)	-40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.

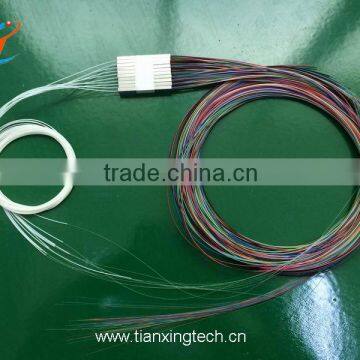

4. Product show

5. Factory bulding
