Home > Products > UPS > 3phase in 3phase out 15kva internal battery ups tower online ups power supply

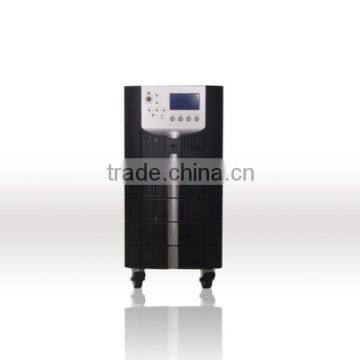

3phase in 3phase out 15kva internal battery ups tower online ups power supply

FOB Price

US$ 1,000 - 2,500 / Unit

1 Unit(Min. Order)

Port Yantian Shekou Huangpu HK
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	INVT & OEM
Model Number	HT33015XS	Phase	Three Phase
Protection	Short Circuit	Weight	51.5kg
Output Voltage	380/400V/415V	Type	On-line
Application	Networking

Product Description

3phase in 3phase out 15kva internal battery ups tower online ups power supply

Product Features:

Wide input voltage and frequency range compatible with
different utility
High input PF>0.99
Input Current THDi<3%
Full DSP Control of high stability and reliability
Modular design, hot swappable power module easy for power
expansion and maintenance
Intelligent battery management, greatly extend the battery life
Battery cold start, power on from battery without utility
Friendly Operation Interface, touch LCD Screen for 60 KV above

Product Specifications:

Mode	HT33010XL	HT33010XS	HT33015XL	HT33015XS	HT33020XL	HT33020XS
Main Input
Grid System	3 Phases + Neutral + Ground
Rated Input Voltage	380/400/415VAC (Line-Line)
Rated Frequency	50/60Hz
Input Voltage Range	304~478Vac (Line-Line),full load; 228V~304Vac (Line-Line),load decreases linearly according to the min phase voltage
Input Frequency Range	40Hz~70Hz
Input Power Factor	>0.99
Input Current THDi	<4% (full Linear Load)				<3% (full Linear Load)
Bypass Input
Rated Bypass Voltage	380/400/415VAC (Line-Line)
Rated Frequency	50/60Hz
Bypass Voltage Range	Selectable, default -20%~+15%; Upper limit: +10%, +15%, +20%, +25%; Lower limit: -10%, -15%, -20%, -30%, -40%
Bypass Frequency Range	Selectable, ±1Hz, ±3Hz, ±5Hz
Bypass Overload	125% Long term operation; 125%~130% for 10min; 130%~150% for 1min;
Output
Rated Inverter Voltage	380/400/415VAC (Line-Line)
Rated Frequency	50/60Hz
Output Power Factor	1				0.9
Voltage precision	±1.5%(0-100% linear load)
Transient Response	<5% for step load (20% - 80% -20%)
Transient recovery	< 30ms for step load (20% - 100% -20%)
Output Voltage THDu	<1% (linear load); <5.5% (non-linear load) according to IEC/EN62040-3				<1% linear load; <6 (non-linear load) according to IEC/EN62040-3
Inverter Overload	<110%, 60min; 110%~125%,10min; 125%~150%,1min;
Frequency Regulation	50/60Hz±0.1%
Synchronized Range	Settable, ±0.5Hz ~ ±5Hz, default ±3Hz
Synchronized Slew Rate	Settable, 0.5Hz/S ~ 3Hz/s, default 0.5Hz/s
Battery And Charger
Battery Rate Voltage	±240VDC
Charger Voltage precision	1%
Charger Power	max=20% System Power
Efficiency
Normal Operation	95%max				>95%
Battery Operation	94.5%max				>95%
System
Display	LED + LCD
Interface	Standard: RS232, RS485 Option: SNMP, Dry Contact, Parallel kit, Battery cold start
Environmental
Operation Temperature	0 ~ 40 ℃
Storage Temperature	-40 ~ 70 ℃
Relative Humidity	0 ~ 95% (Non condensing)
Noise (1 meter)	58dB @ 100% load, 52dB @ 45% load				65dB @ 100% load, 62dB @ 45% load
Physical data
Dimension (WDH,mm)	250660530	250840715	250660530	250840715	250680770	3507381335
Weigh(Kg)	31	51.5 (without battery)	31	51.5 (without battery)	50	89 (without battery)

Product Images:

Our Factory:

Our Exhibitions:

Product Certifications:

Shipping:

FAQ:

Product Quality: We are a public company(stock code: 002334) and owned 800-900 engineers for the control of product quality.

Delivery Time: Usually 15-20days, it depends to your specific order information.

Package: We have professional wooden package for large machine.

Quotation: Please leave your message,and I will send you a formal quotation via email.
