Home > Products > Industrial Silicone Mouse > Ruggdized Silicone Keypad With Optical Trackball Mouse
Ruggdized Silicone Keypad With Optical Trackball Mouse
- Shen zhen and HK
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Key-Tek | |
| Model Number | K-TEK-M130-25-OTB-KP-OEM | Application | Computer Keyboard | |
| Keypad Button Material | Silicone |
Product Description

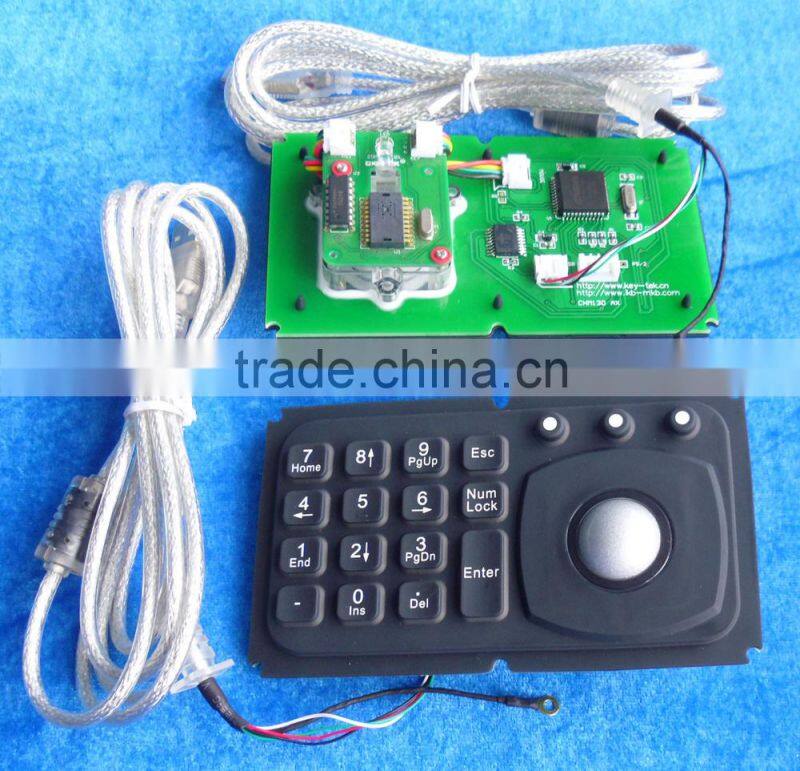

15 Keys IP65 Ruggedized Industrial Silicone Rubber Numeric keypad with integrated IP68 dynamic 25.0mm dynamic washable optical trackball module with 800 DPI for fast and accurate position, with tactile key carbon-on-gold switch technology with stroke 1.5mm for accurate data input , with top panel mounting solution. Backlight optional, military level optional.
APPLICATIONS:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
OTHER INDUSTRIES
MAIN FEATURES
Keypad has NVIS-compliant red adjustable backlighting optional, while NVIS backlighting makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary.
The trackball pointing device is a completely sealed IP68 dynamic washable 25.0mm optical trackball. The trackball is operated using sealed switches with left and right click, scroll rolling functions.
Keypad provides is in a rugged, compact design, rugged construction for reliable functionality
The keypad lacks the crevices found between the keys of a regular keypad, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Special dura-coating for excellent mechanical and chemical resistance
With firm tactile key feel, key travel 1.5mm.
Integrated numeric keypad.
IP65 static mechanical trackball module with military level optional.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone
MECHANICAL DATA
Key: 15 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Switch life: more than 10 million of operations.
Cable Length: 2.5m
G.W.: 0.60KGs
Dimensions: 130.00mm x 77.51mm (L x W )
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 20mA (non-backlight) , 140mA (with backlight on)
EMC Standard: It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1: 2001+A2:2003
Emission: EN 50081-1
Immunity: EN 50082-1
Lifespan> 3 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: :-30oC to +70oC
Humidity: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability
PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V
RELIABILITY
RoHS, CE and FCC, ESD
Protection Level: IP65, NEMA 6P
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
