16 Keys IP65 Dynamic Compact Format Keypad

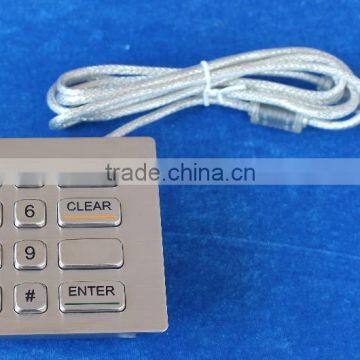

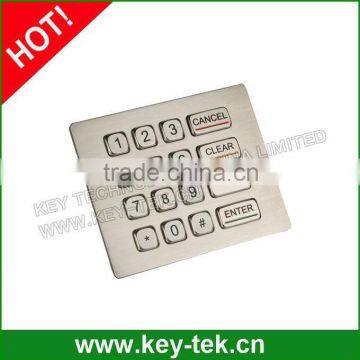

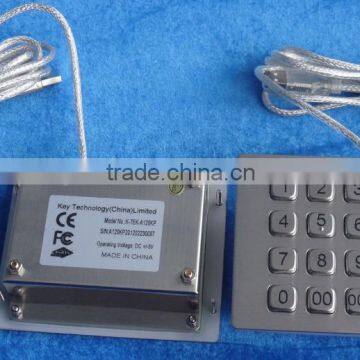

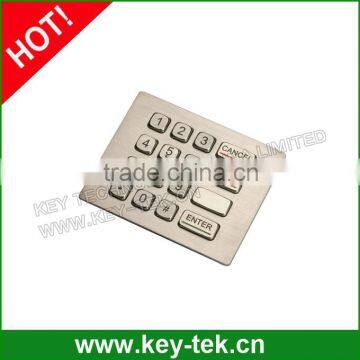

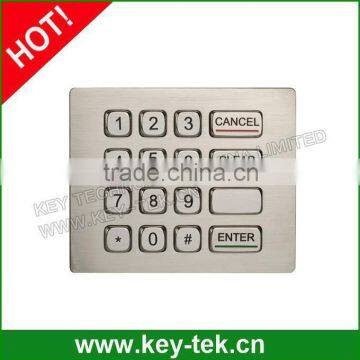

16 Keys Vandal proof IP65 Stainless Steel Compact Format Numeric keypad with electronics controller protected by stainless steel housing, carbon-on-gold key switch technology with long stroke 2.0mm for fast and accurate data input, top panel mounting with sealing gasket for easy tightly mounting to enclosure or panel, backlight (red/blue/white/green) optional.

APPLICATION:
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.=
MAIN FEATURE:
Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to IP65 protection from top panel, top stainless steel plate with threaded bolts and sealing gasket for easy tightly mounting to enclosure or panel.
An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available. OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win 7, Linux, Unix, Mac OSX
ELECTRICAL DATA:
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 20mA
EMC Standard:  It is compliance with the council EMC directive 89/336/EEC
EN55022: 1988+A1:2000+A2:2003
EN55024: 1988+A1:2001+A2:2003
Emission: EN 50081-1
Immunity: EN 50082-1
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB, RS232, RS485 available
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OSX
COMMUNICATION PARAMETER:
PS2/USB:
Standard PS2/USB keyboard interface.
16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code
RS232:
Standard RS232 serial interface.
Communication velocity: 9600bps.
Data format: N, 8, 1.
16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code.
MECHANICAL DATA:
Front plate:Super quality SUS304 brushed stainless steel
Back plate:Super quality SUS304 stainless steel
Actuator/Key: 16 keys, super quality SUS304 brushed stainless steel
Key top style: protuberant rectangular keys, with laser engraved and etched legends and raised dots available.
Key size: 14.0mm x 14.0mm for normal key, 14.0mm x 28.0mm for function keys
Switching material: Carbon-on-Gold.
Actuation Force: 0.6N +/-0.1N (pressure point), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Key Travel: 2.0mm.
Key life: 10 million of operation
Dimensions: 120.0mm x 98.0mm.
G.W. 0.80KGs.
ENVIRONMENTAL ADAPTABILITY:
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY:
RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant IK09
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
