IP68 chemical resistance membrane keyboard with trackball mouse combo
- 3000 Set / Sets per Month
- Shen Zhen and HK
- T/T Credit Card
You May Like
-
IP68 dynamic rated washable industrial membrane keyboard with integrated numeric keypad
-
PS/2 industrial membrane desktop keyboard with touchpad
-
25 keys industrial waterproof membrane keypad with numeric keypad
-
19 keys industrial waterproof membrane keypad with numeric keypad
-
Panel mounted membrane keyboard with mechanical trackball and numeric keypad
-
Industrial waterproof mini compact membrane keyboard with alpha and FN keys
Product Details
Place of Origin | Guangdong, China | Brand Name | IKB MKB | |
Model Number | K-TEK-D396-OTB-KP-FN-DT | Application | Other, computer keyboard | |
Keypad Button Material | Other, silicon |
Product Description

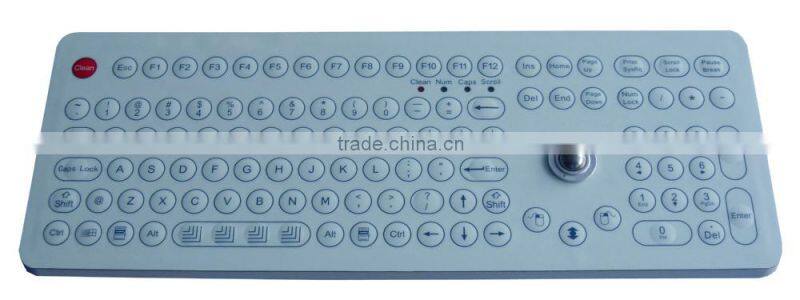

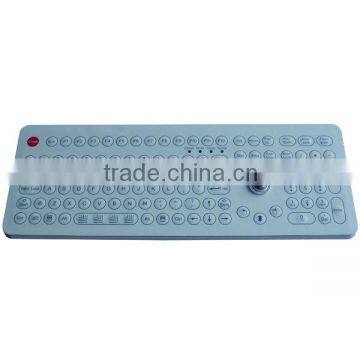

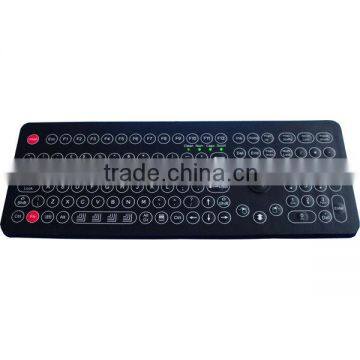

108 keys compact format IP66 rated membrane industrial keyboard with full keyboard functionalities with integrated numeric keypad and 12 function keys FN (F1,F2...F11, F12) on the upper line, IP68 dynamic sealed and fixed washable 16.0mm MINI optical trackball module with 800 DPI resolutions for fast and accurate position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with CLEAN key for easy cleaning via lock/disable the entire keyboard without needing to take keyboard from PC, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 2.0mm Alumium plate, VESA mountable desk top version with robust ABS polycarbonate case.Industrial Level. .
Dimension: 396.0mm x 150.0mm x 20.0mm (L x W x H)
APPLICATION
- MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
- MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
- MILITARY: Army, Navy, Air force
- INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
MAIN FEATURE
- Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
- The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
- Clean key
- -Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtim
- -User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
- Special dura-coating for excellent mechanical and chemical resistance
- Surface touch-key,.
- Optical IP68 trackball mouse available
- Integrated numeric keypad.
- Ease of customizing with multiple languages, to accommodate foreign or custom variants
- PS/2, USB connection cables that plug directly into computer like keyboard operations.
- Enclosure: polystyrene, ABS Polycarbonate Case
- Low-profile keys for easy cleaning
- Key life: 3 millions
MECHANICAL DATA
- Key: 108 keys
- Key top style: Protuberant circular keys with tactile feeling
- Output (self-detectable depending on cable): PS2 or USB
- Power supply voltage: 5 VDC ±0.25V
- Current rating (active mode): 17 mA
- Tracker ball: 25mm diameter, Resolution 440 edges/revolution. Black Phenolic Trackballs are available
- Switch life: more than 3 million of operations
- Actuation Force:1.0 N+/-0.1N for normal key
- Enclosure Material: polystyrene
- Colors: 4 (Blue, white, grey, black)
- Cable Length: 2.5m
- G.W.: 1.50KGs
- Dimensions: 396.0mm x 150.0mm x 20.0mm (L x W x H)
ELECTRICAL DATA
- Supply Voltage: +5V DC +/-5%
- Current Rating:
- EMC Standard: It is compliance with the council EMC directive 89/336/EEC
EN55022:1988+A1:2000+A2:2003
EN55024: 1988+A1:2001+A2:2003 - Emission: EN 50081-1
- Immunity: EN 50082-1
- Lifespan>3 years
- Key switch Technology: metal dome key switch technology with short travel keys
- Interface: PS2, USB available.
- OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
- Operating temperature:-20oC to +60oC
- Storage temperature: -30oC to +70oC
- Operating RH: 30-90%
- Atmospheric pressure: 60-106Kpa.
- Shock: 3x11 ms pulses of 50g on each of 3 axes
- Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
- Flammability
PRINTED CIRCUIT BOARD: 94 VO
SILICONE OVERLAY: 94 HB
INTERFACE CABLE: 94 V
RELIABILITY
- RoHS Compliant, CE and FCC
- Protection Level: IP65(front panel)
- Vandal resistant IK10
- Key Lifespan >10 million actuations
- MTBF >50000H
- MTTR <30min
