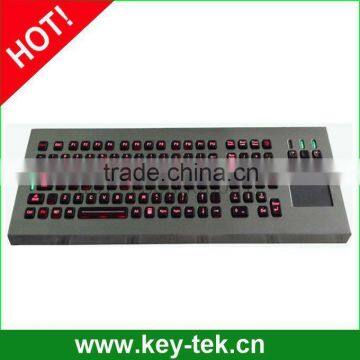

Rugged industrial PC keyboard with touchpad and keypad
- Shen Zhen and HK
- T/T Credit Card T/T
You May Like
-
USB IP65 movable coal mine military desktop keyboard stand for Air Force
-
Black backlit weatherproof industrial marine keyboard with full functionality
-
Custom layout availble Industrial military keyboard with sealed touchpad
-
Russian industrial Button Switch military keyboard with optical trackball
-
Industrial military wall-mounted keyboard with mechanical trackball
-
Russian layout industrial Button Switch military keyboard with optical trackball
Product Details
Place of Origin | Guangdong, China | Brand Name | HI-KEY,KEY-TEK | |
Model Number | K-TEK-M460TP-KP-FN-DT | Application | Computer Keyboard | |
Keypad Button Material | Metal |
Product Description
Specifications
1.desktop backlight keyboard2. integrated numeric keypad,ruggedized touchpad,function keys
3.carbon-on-gold key
,
Dimension: 480.0mm X154.5mm X23.0mm(L x W x H)
Description: 107keys vandal proof IP65 (dynamic) desktop backlight keyboard with integrated numeric keypad,ruggedized touchpad,function keys F1...F12 are on the top line for easy operation, with carbon-on-gold key switch technology with long stroke 2.0mm
APPLICATION
- This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force.
- Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions. A hardened stainless steel front plate and polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism. A water and impact resistant touchpad makes this keyboard the complete and ideal solution for PC data entry in menu based ‘point & click’ application.
MAIN FEATURE
- Vandal resistant
- Keyboard with NVIS-compliant red adjustable backlighting, while NVIS backlighting makes this keyboard ideal for military, aviation or vehicle applications where night vision goggles are necessary.
- Polymer keys ensure the keyboard’s resistance to willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
- Waterproof execution according to degree of protection IP65 from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
- The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
Internet friendly key layout, key-tops are laser-etched or high quality ink print in legends and characters for easy readability, long life to prevent lettering rub-off. - RFI / EMI Protection in accordance with current European and U.S. directives.
Ease of customizing with multiple languages, to accommodate foreign or custom variants. - Desktop solution, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.
- Operational life of more than 10 million cycles per key.
- Resistant to most commonly used cleaning agents.
MECHANICAL DATA
- Key: 106 keys
- Key top style: Protuberant rectangular keys.
- Key Size: 11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key, 11.4mm x71.8mm for space bar.
- Key travel: 2.0mm
- Touchpad cover: Composite
- More than Lifetime 10 million strokes
- Mutual Capacitance sensing
- X/Y position sensing resolution: 40 counts/mm
- X/Y position reporting: Relative
- Output (self-detectable depending on cable): PS2 or USB
- Tracking speed: Maximum 1,016 m/sec
- Power supply voltage: 5 VDC ±0.25V
- Current rating (active mode): 17 m
- Case: Super quality brushed stainless steel
- Short key travel: 2.0mm
- Switch Life: more than 10 million operations.
- Front Plate: Super quality brushed stainless steel.
- Lettering: laser-etched or high quality ink print.
- Actuator/keys materials: polymer
- G.W.: 2.8KGs
- Dimensions:480.0mm x 154.5mm x 23mm ( L x W x H)
ELECTRICAL DATA
- Supply Voltage: +5V DC +/-5%
- Current Rating: appr. 30mA
- EMC Standard: It is compliance with the council EMC directive 89/336/EEC
EN55022:1988+A1:2000+A2:2003
EN55024: 1988+A1:2001+A2:2003 - Emission: EN 50081-1
- Immunity: EN 50082-1
- Lifespan>5 years
- Switch Contact Material: Carbon-on-Gold key switch technology PCB.
- Interface: PS2, USB available.
- OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
- Operating temperature:-20oC to +60oC
- Storage temperature: -30oC to +70oC
- Operating RH: 30-90%
- Atmospheric pressure: 60-106Kpa.
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40oC: 21 days, IEC 60512-6
- Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
- RoHS Compliant, CE and FCC
- Protection Level: IP65(front panel)
- Vandal resistant IK09
- Key Lifespan >10 million actuations
- MTBF >50000H
- MTTR <30min
