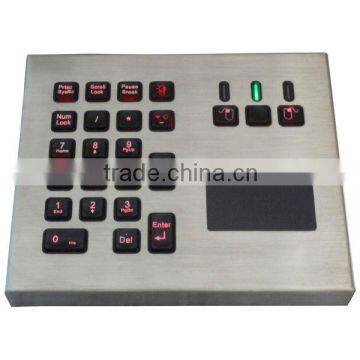

24 keys vandal proof IP65 backlit (dynamic) industrial & military keypad with touchpad

Specifications

Model NO:K-TEK-M185TP-KP-DT

Dimension:185.0mm x 154.4mm x 23.0mm (L x W x H)

Description:24 keys IP65 dynamic stand alone desktop vandal proof industrial & military keypad with industrial backlight, with sealed & ruggedized tough touchpad for fast and accurate cursor position, with industrial PCB with carbon-on-gold key switch technology with key stroke 1.50mm with extremely good tactile feeling for fast and accurate input without any noise, high quality durable Electroplate Titanium Black on the top stainless steel plate (optional).

APPLICATION:

This keypad is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force.

Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions. A hardened stainless steel front plate and polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism. A water and impact resistant sealed and ruggedized tough touchpad makes this keypad the complete and ideal solution for PC data entry in menu based ‘point & click’ application.

MAIN FEATURE:

NVIS-compliant adjustable red backlighting, while NVIS backlighting makes this k keypad ideal for military, aviation or vehicle applications where night vision goggles are necessary;

Strong polymer keys ensure the keypad’s resistance to willful destruction, vandal-proof, against corrosion, weather-proof under hostile environments.

Waterproof execution according to degree of protection IP65 from the panel, the keypad is IP65 sealed against the ingress or liquid and dirt.

Excellent tactile feel with full travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation

Key-tops are laser-etched or high quality ink print in legends and characters for easy readability, long life to prevent lettering rub-off.

Ease of customizing with multiple languages, to accommodate foreign or custom variants.

PS/2, USB connection output cables that plug directly into the host computer for normal keypad operations.

Operational life of more than 10 million cycles per key.

Resistant to most commonly used cleaning agents.

Integral IP65 dynamic sealed and ruggedized tough touchpad, 38mm trackball optional

MECHANICAL DATA:

Key: 24 keys

Key top style: Protuberant rectangular keys.

Actuator/keys materials: polymer

SS housing: full SUS304 stainless steel housing.

Robust polycarbonate frame: between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing inside parts with SS housing.

Key Size: 11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key, 11.4mm x 71.8mm for space bar.

Key travel: 1.50mm

Switch life: more than 10 million of operations.

Lettering: laser-etched or high quality ink print.

Actuator/keys materials: polymer

G.W.: 1.00KGs

Dimensions: 185.0mm x154.4mm x 23.0mm( L x W )

Touchpad cover: Composite

More than Lifetime 10 million strokes

Mutual Capacitance sensing

X/Y position sensing resolution: 40 counts/mm

X/Y position reporting: Relative

Output (self-detectable depending on cable): PS2 or USB

Tracking speed: Maximum 1,016 m/sec

Power supply voltage: 5 VDC ±0.25V

Current rating (active mode): 17 mA

Switch life: more than 10 million of operations.

ELECTRICAL DATA:

Supply Voltage: +5V DC +/-5%

Current Rating:

20mA for keypad and touchpad without backlight.

100mA for keypad with backlight on.

EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004

EMI: EN 55022: 2010

EMS: EN 55024:2010

Lifespan>5 years

Switch Contact Material: Carbon-on-Gold key switch technology PCB.

Interface: PS2, USB available.

OS: All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY:

Operating temperature:-20oC to +60oC

Storage temperature: -30oC to +70oC

Operating RH: 100%

Atmospheric pressure: 60-106Kpa.

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40oC: 21 days, IEC 60512-6

Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY:

RoHS, CE and FCC, ESD

Protection Level: IP65 (front panel)

Vandal resistant IK10

Key Lifespan >10 million actuations

MTBF >50000H

MTTR <30min
