Product Details
| Place of Origin | Zhejiang, China | Brand Name | kinway | |
| Model Number | CAPG-B3(AL35-200 CU16-185) | Type | DIN | |
| Application | Automotive | Gender | Other |
Product Description
Specifications

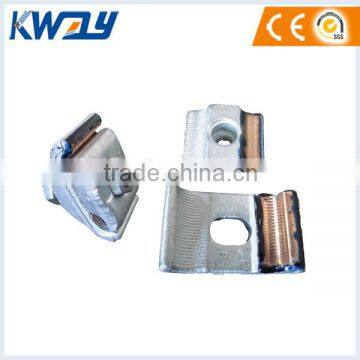

bimetallic CAPG choosing the high strength, corrosion resistant aluminium alloy and forging bimetal
Product information:
For connection of Al conductors according DIN 48201&ACSR conductors according to DIN 48204 with copper tap-off conductors according to DIN 48201.
| Model | Conductor Cross-section(mm2) | Bolts |
| Capg-A1 | CU 6-50 AL 16-70 | 1XM8X40 |
| Capg-A2 | CU 10-95 AL-25-150 | 1XM8X45 |
| Capg-B1 | CU 6-50 AL 16-70 | 2XM8X45 |
| Capg-B2 | CU 10-95 AL 25-150 | 2XM8X50 |
| Capg-B3 | CU 25-185 AL 35-200 | 2XM10X60 |
| Capg-C1 | CU 6-50 AL 16-70 | 3XM8X45 |
| Capg-C2 | CU 10-95 AL 25-150 | 3XM8X50 |
| Capg-C3 | CU 25-185 AL 35-240 | 3XM10X60 |
| Capg-C4 | CU 35-240 AL 35-300 | 3XM10X70 |
Material:
Body: high strength, corrosion-resistant, aluminium 99.5 with hot forged bimetallic sheet .
Bolts: steel 8.8, DIN 933, Dacromet .
Nut:Steel 8,Din 934 Dacromet . pressed into lower part Conical Washers:Steel,Din6796 corrosion-protected.
Pressure Pad: Aluminium alloy, with spring washers. Dacromet
Recommended Torque moments: M8:23Nm M10:46Nm
FAQ
Q 1.How about your experience?
A.We have our own professional factory and R&D department & more than 10 years producing experience.
Q 2. What's your advandge ?
A. We can make by ourselves from the inside parts to outside & producing according to customer’s drawing.It make great efficiency and saves the cost.
Q 3. How's the delivery time ?
A. Usually it will take about two weeks for the order of 100,000pcs for production
Q 4. Tell me the standard of package?
A. For inner box and master carton are made as per international standards,and we can make special design for you if need.
Also if necessary, will be packed in pallet to avoid any damage.
Q 5. What kind of material of Clamp?
A. We have three types, Al-AL,CU-CU,AL-CU.. It depends on your requirement.
Q 6.Will be any wanrranty for your item ?
A. We offer one year warranty for our products. Please feel assured.
Q 7 .Could you offer Form A or C/O ?
A. It is totally not a problem. We can prepare relative documents to foreign affairs office or
other office to apply for this certificate.
Q 8.Would you accept to use our logo ?
A.We offer OEM ODM customization services if quantity is suitable.
Q 9.Where is your market?
A. Our produce and design are sold well in Southeast Asia , Middle East and European, also are trusted and praised deeply by domestic and foreign users.
