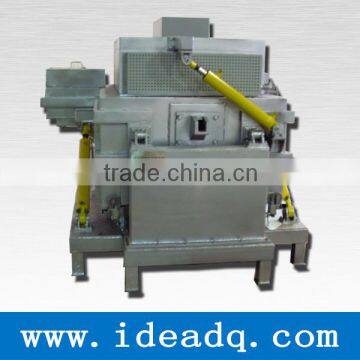

Manufacturing electromagnetic stirring alloy holding furnace

             Electromagnetic stirring alloy holding furnace is my company for small alloy melting pot stirring and series of products, has furnace heat preservation and electromagnetic stirring function itself, heat preservation temperature can up to 1500°C, capacity can reach 500Kg.

          Product application process effect

          Because of the electromagnetic stirring accelerates heat release, change the way the melt flow, can effectively inhibit the growth of the columnar crystal, make the equiaxed grain size. Change the configuration of precipitated phase at the same time reduce macrosegregation and microsegregation, increase the crystal nucleus, grain size, uniform temperature, let solidification in larger volume range at the same time the effect of refining grain increased, in the process of crystallization to stir is more meaningful. By electromagnetic stirring, the chemical composition of the whole furnace melt relative deviation can be controlled within 10%.

          Can greatly shorten the melting time

          Electromagnetic stirring needn't open the oven door, reduce the heat loss, improved the burner combustion power. Shorten the heating time and the melting time, reduce the oxide slag formation, greatly improve the efficiency of the furnace. A large number of application data shows, as a general rule, electromagnetic stirring can shorten the melting time is more than 20% about no electromagnetic stirring, can reduce the 10%~15% fuel consumption, can improve 15%~30% productivity.

          Because of the electromagnetic stirring, can in a short time under the condition of liquid and meet the process requirements, and stir fully, can significantly reduce molten metal drops in the slag layer in the package, shortening the time of liquid exposed to the air, so as to improve the recovery efficiency of metal, the decrease of slag roughly in about 15% ~ 30%.

          Greatly shorten the temperature and composition of the uniform time, and improve overall uniformity.

          Its action principle as illustrated in figure:

          1. Heating wire layout in ceramic radiant panel, no direct contact with aluminum liquid vapor, heating element service life is long.

          2. High degree of civilized production holding furnace itself no exothermic phenomenon, waste gas and noise

          3. Smart, compact structure, cover an area of an area small

          4. With special thermocouple measurement to aluminum water temperature, direct measurement aluminum liquid temperature, assure the temperatures of liquid aluminum real, and reliable.

          5. With the intelligent temperature control table, adopt fuzzy PID control technology, temperature control precision is achieved ±1°C.

          6.The electromagnetic stirring and liquid with no physical contact, do not pollute the liquid aluminum.

          7. It can effectively solve the problem of uniformity of alloy composition.

          8.Does not destroy oxide layer mixing, thus can reduce the oxidation slag, to reduce the burning loss rate.

          9.Stirring direction and stirring intensity can be adjusted.

          10. A one-time investment, the cost is low, save energy, enhance productivity.
