KAYAL High Duty Cycle Small Size Light Weight Arc Welding Machine Quality Choice Most Popular
- NINGBO/SHANGHAI
- T/T Credit Card
You May Like
-
SVC Fully Automatic Voltage Regulator,Automatic Voltage Stabilizer,avr 2000va Automatic Voltage Stabilizer Quality Choice
-
High Quality Good Price Lc1-d09 ac Contactor
-
Modern Technique Lc1-d25 ac Contactor
-
Good Performance Lc1-d80 ac Contactor
-
13 Years Supplier Lc1-d40 ac Contactor
-
Factory Direct Sale Lc1-d25 ac Contactor
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | KANGYU,KAYAL | Model Number | ARC-140/160/200 | |
| Arc Current | 140/160/200A | Pulse Frequency | 50/60 | |
| Pilot Arc Current | 30A | Rated Duty Cycle | 30% | |
| Motor Type | DC Motor | Dimensions | 370*155*270 | |
| Usage | Welding | Voltage | 1PH AC220±15% | |
| Power(W) | 5.1/6/8 | Certification | CE CCC | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SPECIFICATION
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| INVERTER DC MMA WELDING MACHINE |
| • Latest plastic panel design, exclusive and attractive appearance as well as the better protection. |
| • Transparent shielding cover protect the machine from dust, moisture, corrosion, make the machine work more reliably in bad working environment. |
| • Protective circuit design give safe operation. |
| • High duty cycle, small size, light weight. |
| MZINVERTER DC MMA(IGBT)WELDING MACHINE |
| IGBT TYPE |
| • IGBT technology, the core adopts advanced IGBT inverter device, high frequency |
| • Digital meter to preset and display welding current |
| • Anti-stick, adjustable hot striking, easy to strike the arc, stable arc welding, deep weld pool and good welding appearance |
| • VRD function is optional, which is safe for welders |
| • Excellent performance, can be used for welding with cellulose electrode |
| • Over current, over heat and under voltage protection is available |
| • Smaller, lighter and portable, this equipment is protected by a solid metal casing |
| • Energy saving-compared with the traditional SMAW machine more efficient |
| • Suitable for welding the carbon steel, stainless steel, low alloy steel and other metals |
| Model | ARC-140 | ARC-160 | ARC-200 | |
| Rated input voltage (V) | 1PH AC220±15% | |||
| Rated input power (KVA) | 5.1 | 6 | 8 | |
| Rated input current (A) | 23 | 27 | 36 | |
| Rated output | 140A/25.6V | 160A/26.4v | 200A/28V | |
| Output current (A) | 20-140 | 20-160 | 20-200 | |
| No-load voltage (V) | 65±5 | 65±5 | 68±5 | |
| Rated duty cycle (%) | 30% | 140A | 160A | 200A |
| (40°C 10min) | 100% | 77A | 88A | 110A |
| Efficiency (%) | 70 | 70 | 70 | |
| Protection grade | IP21 | IP21 | IP21 | |
| Insulation grade | F | F | F | |
| Net weight (Kg) | 4.5 | 4.8 | 5.4 | |
| Gross weight (Kg) | 5.6 | 6.1 | 6.8 | |
| Dimension of machine (mm) | 370×155×270 | 370×155×270 | 370×155×270 | |
| Dimension of package (mm) | 426×219×283 | 426×219×283 | 426×219×283 | |

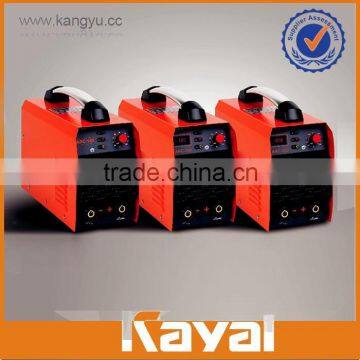

PRODUCT PICTURE
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Established in 2002, Wenzhou Kangyu Electrical CO.,LTD. is a specialized manufacturer of definite purpose contactors,AC/DC magnetic contactors,circuit breakers. Located in Xinguang industry zone Liushi town Wenzhou city, we enjoy convenient transportation. Our company occupies an area of 30000 and has advanced facilities of injection molding machine,punching machine,monitoring station and so on. Our annual production capacity is 50,000,000 pieces. With export license, we export products to China,America,Australia, Europe,South America and Southeast Asia. Our products gain wide praises at home and abroad. Our company has won ISO9001:2008,CUL,CB,KEMA,CE,CCC,Rohs and PICC. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our tenet is “Quality First; Improve Technology; Expecting Future”. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together. |
FAQ
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or
other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
