Home > Products > Terminal Crimping Machine > EM-6B3 crimping & cutting & stripping machine for different cable lugs /Pedal electric type terminal crimping machine
EM-6B3 crimping & cutting & stripping machine for different cable lugs /Pedal electric type terminal crimping machine
Negotiable
/ Unit
1 Unit(Min.Order)
- 800 Twenty-Foot Container per Month
- shanghai/Ningbo/Guangzhou
- T/T Credit Card
You May Like
-
EM-6B2 crimping machine for different cable lugs Pneumatic type terminal crimping machine
-
Automatic stripping & Terminal Crimping Machine X-4T;Straight terminal crimping machine
-
Semi-automatic Terminal Crimping Machine X-1.5T;Straight terminal crimping machine
-
Semi-automatic Terminal Crimping Machine X-2.0T
-
Pneumatic Type Terminal Crimping Machine Crimping Plier X-62E
-
terminal crimping machine press X-61E
Product Details
| Place of Origin | China | Brand Name | Xuxin | |
| Model Number | EM-6B2 | Usage | Crimping |
Product Description

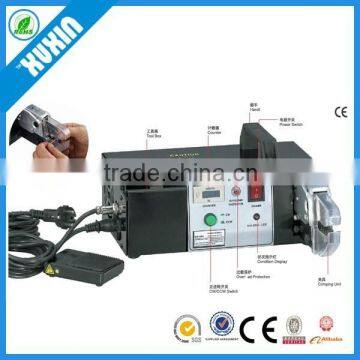

Crimping & cutting & stripping machine for different cable lugs /Pedal electric type terminal crimping machine EM-6B3
Product Description
-
Model
EM-6B2
EM-6B3
Electric Pedal model
Electric Pedal model
Crimping dies NO.
7 set dies
3 sets dies
Crimping range:
0.5-10mm2
0.5-10mm2
Max. crimping force :
noninsulated crimping: ≤16mm2
insulated crimping: ≤6mm2
Tube crimping ≤35mm2
Crimping time :
- 1.5sec/pcs (60HZ):
- 1.8sec/pcs (50HZ):
Voltage & power
- AC 220V /110V 90W
Max. stripping range :
- ≤6mm2
Max. stripping length:
- ≤10mm
Max. cutting range
- ≤10mm2
Weight:
12KG
- 12KG
Size:
325*265*150mm
- 325*290*150mm
- If you required the crimping & cutting & stripping function. please use EM-6B3
1. Connect foot perdal to the foot pedal joint
2. Connect the attaching plug to the power supply
3. Connect the grounding plug to the power supply
4. Turn on power switch
Crimping dies mould :
Our Services
We Provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Service
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.
