Product Details
| Place of Origin | Jiangsu, China | Brand Name | XUXIN | |
| Model Number | X-502NX | Usage | Multifunctional |
Product Description

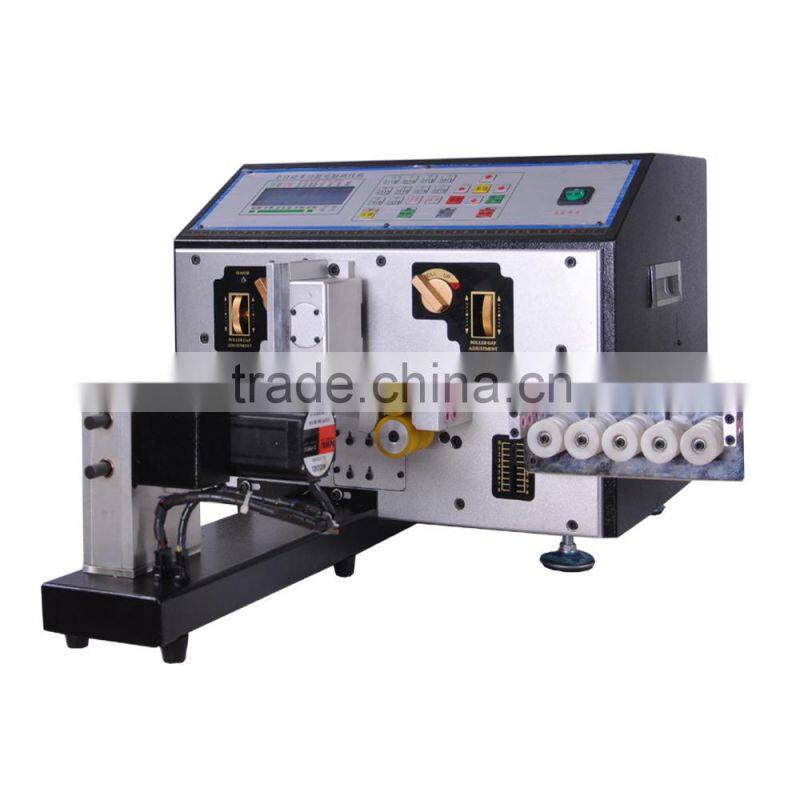

wire stripping and twisting machine X-502NX
We manufacture auto label dispensers, auto label rewinders, label cutting machines, wire stripper, wire stripping & twisting & cutting machine etc. High quality & low price!
Features:

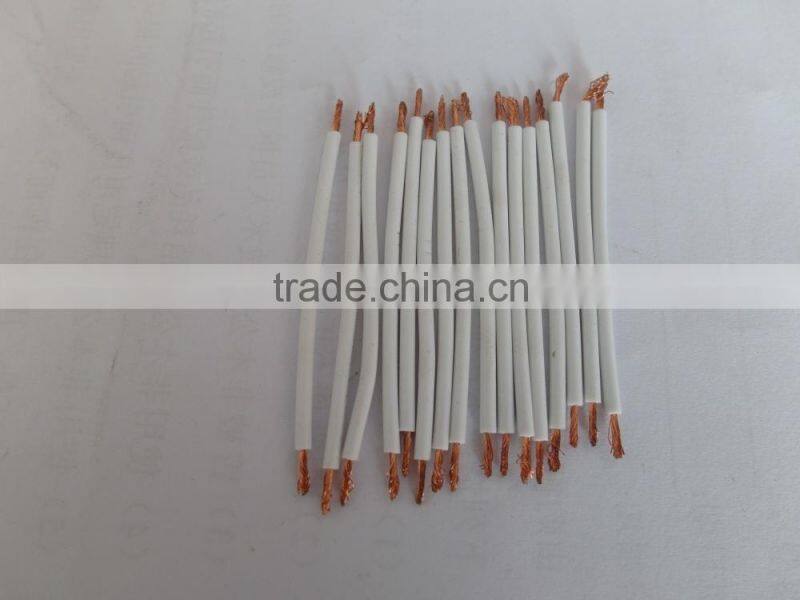

This machine can strip, cut and twist multi-core wire full automatically!
wire stripping and twisting machine,wire twisting X-502NX
Specifications as following:
Power Supply | 220V / 50Hz, |
Power Rating | 220W |
Display Way | LED Display |
Wire Size | AWG16-32 |
Fitting Wire Section Acreage | 0.1mm22.5mm2 |
Guide Pipe Diameter(Wire DIA.) | Φ6mm |
Stripping Length | Head 0~999mm, End 0~999mm |
Cutting Length | 1~ 60000mm |
Cutting Tolerance | ±(0.002×L) (L=Cutting Length) |
Exhausted Line Way | Complete Half Brief Middle |
Processing Capacity | 15000pcs/hour |
Fitting Wire Material | PVC Teflon Glass Wire |
Drive Way | Four Wheel Drive At The Same Time |
Speed Adjustment | 1-6 |
Wire Diameter Adjustment | Automation |
Twisting Way | Both sides or one side |
Twisting Length | 1 ~ 30mm |
Max. Middle Stripping Section: | 3 |
Parameter Memory Function | Can save 99 kinds of different wires |
Blade Material | Hard tungsten steel |
Mearsurement | 500*520*360mm |
Net Weight | 42Kg |
Pacakage | Export standard package |
