XLamp CXB 3070, Original cree led diode

FOB Price

US$ 33 - 35 / Piece

100 Pieces(Min. Order)

Port HongKong/Shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Original CREE
Model Number	CXB3070	Type	LED
Package Type	Through Hole	Max. Forward Voltage	42v
Max. Reverse Voltage	standard	Max. Forward Current	0.1mA
Max. Reverse Current	2800mA

Product Description

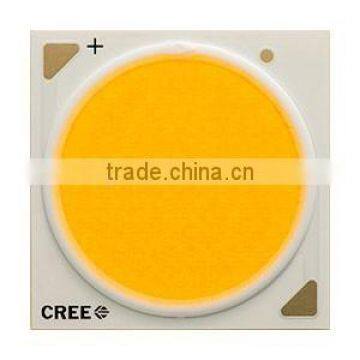

XLamp CXB3070

Second Generation of CXA LED Arrays

The XLamp CXB3070 LED Array is a member of the second generation of the CXA family that delivers up to 33% higher efficacy than the first generation in the same LES. The higher performance CXA2 LED Arrays allow lighting manufacturers to achieve the same or better performance with a smaller LES, enabling a radical reduction in system size and cost. CXA2 LED Arrays share the same physical design as the previous generation, allowing lighting manufacturers to leverage the existing optical, mechanical and electrical design elements to accelerate time to market without additional cost.

SPECIFATIONS:

Size	27.35 x 27.35 mm
Product Options	High-CRI
Maximum Drive Current	2.8 A
Maximum Power	107 W
Light Output Range	5000 - 13750 lm
Light Emitting Surface (LES)	23 mm
Typical Forward Voltage	36 V @ 1.925 A (85°C)
Viewing Angle	115 °
Binning	85°C 2- 3- and 5-Step Easy White®
RoHS Compliant	Yes
REACH compliant	Yes
UL recognized	Yes - Level 4 Enclosure Consideration
