Home > Products > Arc-Edge Polishing Machines > YTE-1200 14 heads ceramic tile polishing machine

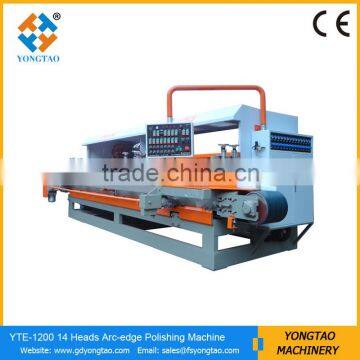

YTE-1200 14 heads ceramic tile polishing machine
- Foshan Port Guangzhou Port Shenzhen Port Ningbo Port Qingdao port Tianjin Port Dandong Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CERAMIC TILE BULLNOSE POLISHING MACHINE YT-1200 WITH 14 HEAD
-
Automatic ceramic tile polishing machine for stair step
-
Full automatic Tile edge chamfering machine, Tile edge beveling machine, Tile bevel edge polishing machine
-
Double Shaft Full Automatic Continuous Cutting Machine
-
YJ-2/800 Double shaft full automatic continuous cutting machine
-
YT-2-800 High speed full automatic ceramic and mosaic cutting machine
Product Details
| Condition | New | Type | Other, Tile processing machine | |
| Tile Type | Ceramic | Use | Step | |
| Production Capacity | 1.5-8M/MIN | Place of Origin | Guangdong, China | |
| Brand Name | YONGTAO | Model Number | YTE-1200 | |
| Power(W) | 36.7KW | Voltage | CUSTOM-ORDER | |
| Dimension(L*W*H) | 6.3L*2.2W*1.8H | Weight | 5800KG | |
| Certification | CE ISO | Warranty | 6 MONTHS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
YTE-1200 14 heads ceramic tile polishing machine
YTE-1200 14 heads ceramic tile polishing machine
FUCTION:
Ceramic Tile Bullnose Polishing Machine is applied to deep process ceramic,such as grinding,bullnose, chamfering(30°,45°,60°),bottom-chamfering,arc-griding,polishing(arc-polishing,45°-polishing),groove(anti-skid slot,flat slot)and so on.
PARAMETER:
Serial number | Name | Unit | Technical parameters |
1 | Conveyor belt dimensions | mm | 300 |
2 | Number of grinding wheels | unit | 14 |
3 | Diameter of grinding wheels | mm | 95 |
4 | Number of chamfering wheels | unit | 6 |
5 | Diameter of Chamfering wheels | mm | 150-200 |
6 | Number of anti-skid slots | unit | 3-4 |
7 | Diameter of shaped wheels | mm | 150 |
8 | Workable width | mm | 80-1200 |
9 | Speed | m/min | 1.5-8 |
10 | Workable thickness | mm | 6-20 |
11 | Total work | Kw | 34 |
12 | Power consumption | Kw/h | 20 |
13 | Gas consumption | L/min | 50 |
14 | Water consumption | L/min | 490 |
15 | External dimension | A*b*c | 6.3*2.2*21.8 |
16 | weight | Kg | About 5800 |
YT-1200 14 heads ceramic tile polishing machine
Intensive Packaging:
Reinforced wooden crate. The important parts will be packed with waterproof packing.
Fast and Timely Delivery:
The machine will be available for shipping in 15 days after 30% deposit.
Optional Departure Port:
Foshan Port, Shenzhen Port, Guangzhou Port……You can select any other port in China suitable for you.
Q1: How to order?
A: inquiry>>discuss machine details>>quotation>>confirmation layout and contract>>payment in advance>>order to factory>>inform customer>>payment balance >>contact ship booking container>>load container>>inform and confirm all documents>>made original documents>>sent documents to customer by express>>inform customer and follow tracking>>after customer inform arrange technology after-sales service.
Q2: About Min order QTY?
A: As customers' options, you can order one set machine or whole line or we customized with your factory.
Q3: About customization?
A: ODM/OEM business partner will be warmly welcome.
Q4: About sample?
A: For Machine No have Sample. if you need stone line, yes we can arrange sample for you buy traffic expense should be payment from your side.
Q5: About price?
A: Price is based on configuration QTY, payment terms, time of delivery.
Q6: How to request machine?
A: you just tell us:
Which effect you need?
Which size for work before work or finish work?
Which material in the machine to processing?
How many capacity you request?
Q7: Country of Origin?
A: Made In China
